KenCut™ HM • F4AT-WSMLX • Torus • 4 Flutes • Extended Neck • Plain Shank • Metric
KenCut™ HM Solid Carbide End Mill for Finishing of Steels and Hard Materials
Material Number6524811
ISO Catalog IDF4AT1000AWL20R025ANSI Catalog IDF4AT1000AWL20R025
- P Steel
- S High-Temp Alloys
- H Hardened Materials
Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
3D Profiling
Tool Dimensions: Flute Configuration: 4
Corner Style: Torus
Helix Angle: 20°
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
Material Number | 6524811 |
ISO Catalog ID | F4AT1000AWL20R025 |
ANSI Catalog ID | F4AT1000AWL20R025 |
Grade | KC639M |
Adapter Style Machine Side | Straight-Cylindrical |

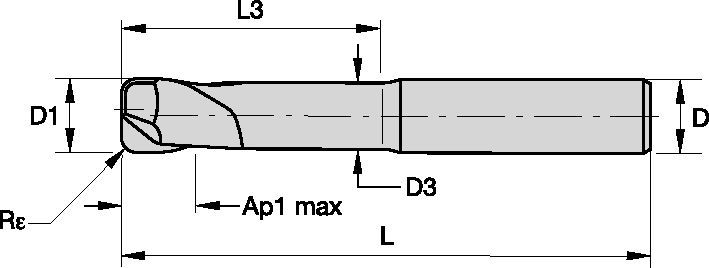

[D1] Effective Cutting Diameter | 10 mm |
[D1] Effective Cutting Diameter | 0.3937 in |
[D] Adapter / Shank / Bore Diameter | 10 mm |
[D] Adapter / Shank / Bore Diameter | 0.3937 in |
[AP1MAX] 1st Maximum Cutting Depth | 10 mm |
[AP1MAX] 1st Maximum Cutting Depth | 0.3937 in |
[D3] Neck Diameter | 9.7 mm |
[D3] Neck Diameter | 0.3819 in |
[L3] Usable Length | 59.24 mm |
[L3] Usable Length | 2.3323 in |
[L] Overall Length | 100 mm |
[L] Overall Length | 3.937 in |
[Re] Corner Radius | 2.5 mm |
[Re] Corner Radius | 0.098 in |
[Z] Number of Flutes | 4 |
Workpiece Materials
- Steel
- High-Temp Alloys
- Hardened Materials
Uses and application
Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
3D Profiling
Tool Dimensions: Flute Configuration: 4
Corner Style: Torus
Helix Angle: 20°
Grades
KC639M
PVD- (AlTiN) coated carbide on a submicron carbide substrate. This hard coating provides outstanding performance in milling hardened materials (58–65 HRC).
Features and benefits
- Centre cutting for plunging and ramping operations.
- Solid carbide end mills for machining of hard materials greater than 60HRC.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
Speeds & Feeds
Side Milling (A) and Slotting (B) | KC639M | Feed per Tooth — fz information is for side milling (A). | |||||||||||
A | B | Cutting Speed | D1 | ||||||||||
Material | ap | ae | ap | Min | Max | mm | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | |
P | 3 | 0,5 x D | 0,4 x D | 0,3 x D | 120 | 160 | fz | 0,026 | 0,033 | 0,040 | 0,055 | 0,067 | 0,077 |
4 | 0,5 x D | 0,4 x D | 0,3 x D | 90 | 150 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,059 | 0,069 | |
H | 1 | 0,5 x D | 0,4 x D | 0,3 x D | 80 | 140 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,059 | 0,069 |
2 | 0,5 x D | 0,3 x D | 0,2 x D | 60 | 80 | fz | 0,018 | 0,022 | 0,027 | 0,037 | 0,044 | 0,051 | |
3 | 0,5 x D | 0,15 x D | 0,15 x D | 50 | 70 | fz | 0,014 | 0,018 | 0,021 | 0,029 | 0,035 | 0,041 | |
4 | 0,5 x D | 0,1 x D | 0,1 x D | 40 | 60 | fz | 0,009 | 0,012 | 0,014 | 0,019 | 0,023 | 0,027 |
