| Material Number | 7221458 |
| ISO Catalog ID | R4GS05020C15R000 |
| ANSI Catalog ID | R4GS05020C15R000 |
| Grade | KCU25S |

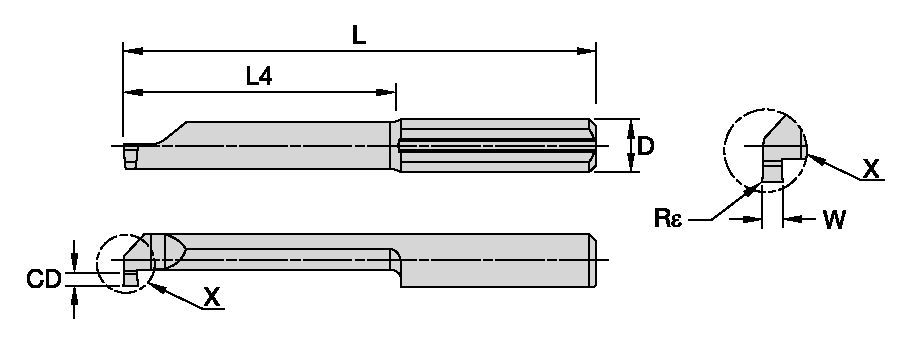

| [DM] Minimum Bore Diameter | 2 mm |
| [DM] Minimum Bore Diameter | 0.0787 in |
| [D] Adapter / Shank / Bore Diameter | 4 mm |
| [D] Adapter / Shank / Bore Diameter | 0.1575 in |
| [W] Groove Width | 0.5 mm |
| [W] Groove Width | 0.0197 in |
| [CD] Cutting Depth | 0.4 mm |
| [CD] Cutting Depth | 0.0157 in |
| [Rε] Corner Radius | 0 mm |
| [Rε] Corner Radius | 0 in |
| [L4] Maximum Boring Depth | 15 mm |
| [L4] Maximum Boring Depth | 0.5906 in |
| [L] Overall Length | 29 mm |
| [L] Overall Length | 1.1417 in |
