| Material Number | 6163381 |
| ISO Catalog ID | KTIP1010FEGM |
| ANSI Catalog ID | KTIP1010FEGM |
| Grade | KCPM45 |

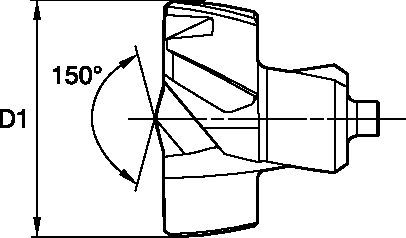

| [D1] Drill Diameter | 10.1 mm |
| [D1] Drill Diameter | 0.3976 in |
| [L5] Drill Point Length | 0.4 mm |
| [L5] Drill Point Length | 0.016 in |
| [PPD] Pilot Point Diameter | 3 mm |
| [PPD] Pilot Point Diameter | 0.12 in |
| [SSC] Insert Seat Size | J |
Counter BoringDrillingDrilling: Inclined EntryDrilling: Inclined ExitDrilling: Flat BottomDrilling: ConvexTool Dimensions: 2flute/4margin/coolantDrilling: ConcaveGrades
KCPM45
Composition: Multilayered PVD TiN-TiAlN coated medium-grain carbide.
Application: Applicable for steel and cast iron. This grade offers excellent wear resistance and reliability at intermediate cutting speeds. Due to the medium-grain carbide, it offers superior chipping resistance in metastable machining conditions.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
| Material | Cutting Speed | Metric | |||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||
| Min | Starting Value | Max | 12,5 | 16,0 | 20,0 | 25,4 | 32,0 | 40,0 | |||
| P | 1 | 110 | 140 | 170 | mm/r | 0,14–0,23 | 0,17–0,25 | 0,19–0,29 | 0,23–0,38 | 0,26–0,43 | 0,33–0,76 |
| 2 | 100 | 120 | 140 | mm/r | 0,17–0,23 | 0,19–0,25 | 0,22–0,29 | 0,29–0,38 | 0,32–0,43 | 0,33–0,76 | |
| 3 | 80 | 100 | 120 | mm/r | 0,14–0,20 | 0,15–0,23 | 0,17–0,25 | 0,23–0,34 | 0,26–0,38 | 0,33–0,66 | |
| 4 | 70 | 90 | 110 | mm/r | 0,11–0,20 | 0,13–0,23 | 0,14–0,25 | 0,18–0,34 | 0,21–0,38 | 0,26–0,66 | |
| M | 1 | 40 | 60 | 80 | mm/r | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 |
| 2 | 35 | 55 | 70 | mm/r | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 | |
| 3 | 20 | 40 | 60 | mm/r | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 | |
| K | 1 | 90 | 135 | 175 | mm/r | 0,17–0,23 | 0,19–0,25 | 0,22–0,29 | 0,29– 0,38 | 0,32–0,43 | 0,33–0,76 |
| 2 | 80 | 120 | 140 | mm/r | 0,17–0,23 | 0,19–0,25 | 0,22–0,29 | 0,29–0,38 | 0,32–0,43 | 0,33–0,76 | |
| 3 | 70 | 110 | 125 | mm/r | 0,15–0,24 | 0,18–0,26 | 0,21–0,29 | 0,23–0,37 | 0,25–0,42 | 0,27–0,57 | |
| S | 1 | 20 | 40 | 60 | mm/r | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 |
| 3 | 15 | 30 | 45 | mm/r | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 | |
| Material | Cutting Speed | Metric | |||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||
| Min | Starting Value | Max | 12,5 | 16,0 | 20,0 | 25,4 | 32,0 | 40,0 | |||
| P | 1 | 110 | 140 | 170 | mm/omw | 0,14–0,23 | 0,17–0,25 | 0,19–0,29 | 0,23–0,38 | 0,26–0,43 | 0,33–0,76 |
| 2 | 100 | 120 | 140 | mm/omw | 0,17–0,23 | 0,19–0,25 | 0,22–0,29 | 0,29–0,38 | 0,32–0,43 | 0,33–0,76 | |
| 3 | 80 | 100 | 120 | mm/omw | 0,14–0,20 | 0,15–0,23 | 0,17–0,25 | 0,23–0,34 | 0,26–0,38 | 0,33–0,66 | |
| 4 | 70 | 90 | 110 | mm/omw | 0,11–0,20 | 0,13–0,23 | 0,14–0,25 | 0,18–0,34 | 0,21–0,38 | 0,26–0,66 | |
| M | 1 | 40 | 60 | 80 | mm/omw | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 |
| 2 | 35 | 55 | 70 | mm/omw | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 | |
| 3 | 20 | 40 | 60 | mm/omw | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 | |
| K | 1 | 90 | 135 | 175 | mm/omw | 0,17–0,23 | 0,19–0,25 | 0,22–0,29 | 0,29– 0,38 | 0,32–0,43 | 0,33–0,76 |
| 2 | 80 | 120 | 140 | mm/omw | 0,17–0,23 | 0,19–0,25 | 0,22–0,29 | 0,29–0,38 | 0,32–0,43 | 0,33–0,76 | |
| 3 | 70 | 110 | 125 | mm/omw | 0,15–0,24 | 0,18–0,26 | 0,21–0,29 | 0,23–0,37 | 0,25–0,42 | 0,27–0,57 | |
| S | 1 | 20 | 40 | 60 | mm/omw | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 |
| 3 | 15 | 30 | 45 | mm/omw | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,18–0,28 | 0,21–0,31 | |
| Material | Cutting Speed | Metric | |||||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 8,0 | 10,0 | 12,0 | 14,0 | 16,0 | 20,0 | 24,0 | 28,0 | |||
| P | 1 | 110 | 140 | 170 | mm/r | 0,14–0,23 | 0,14–0,23 | 0,14–0,23 | 0,14–0,23 | 0,17–0,25 | 0,19–0,29 | 0,23–0,38 | 0,23–0,38 |
| 2 | 100 | 120 | 140 | mm/r | 0,17–0,23 | 0,17–0,23 | 0,17–0,23 | 0,17–0,23 | 0,19–0,25 | 0,22–0,29 | 0,29–0,38 | 0,29–0,38 | |
| 3 | 80 | 100 | 120 | mm/r | 0,14–0,20 | 0,14–0,20 | 0,14–0,20 | 0,14–0,20 | 0,15–0,23 | 0,17–0,25 | 0,23–0,34 | 0,23–0,34 | |
| 4 | 70 | 90 | 110 | mm/r | 0,11–0,20 | 0,11–0,20 | 0,11–0,20 | 0,11–0,20 | 0,13–0,23 | 0,14–0,25 | 0,18–0,34 | 0,18–0,34 | |
| M | 1 | 40 | 60 | 80 | mm/r | 0,09–0,14 | 0,09–0,14 | 0,09–0,14 | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,16–0,25 |
| 2 | 35 | 55 | 70 | mm/r | 0,09–0,14 | 0,09–0,14 | 0,09–0,14 | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,16–0,25 | |
| K | 1 | 90 | 135 | 175 | mm/r | 0,18–0,24 | 0,18–0,24 | 0,18–0,24 | 0,18–0,24 | 0,21–0,28 | 0,23–0,31 | 0,28–0,37 | 0,28–0,37 |
| 2 | 80 | 120 | 140 | mm/r | 0,18–0,24 | 0,18–0,24 | 0,18–0,24 | 0,18–0,24 | 0,21–0,28 | 0,23–0,31 | 0,28–0,37 | 0,28–0,37 | |
| 3 | 70 | 110 | 125 | mm/r | 0,15–0,24 | 0,15–0,24 | 0,15–0,24 | 0,15–0,24 | 0,18–0,26 | 0,21–0,29 | 0,23–0,37 | 0,23–0,37 | |
| Material | Cutting Speed | Metric | |||||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 8,0 | 10,0 | 12,0 | 14,0 | 16,0 | 20,0 | 24,0 | 28,0 | |||
| P | 1 | 110 | 140 | 170 | mm/dev | 0,14–0,23 | 0,14–0,23 | 0,14–0,23 | 0,14–0,23 | 0,17–0,25 | 0,19–0,29 | 0,23–0,38 | 0,23–0,38 |
| 2 | 100 | 120 | 140 | mm/dev | 0,17–0,23 | 0,17–0,23 | 0,17–0,23 | 0,17–0,23 | 0,19–0,25 | 0,22–0,29 | 0,29–0,38 | 0,29–0,38 | |
| 3 | 80 | 100 | 120 | mm/dev | 0,14–0,20 | 0,14–0,20 | 0,14–0,20 | 0,14–0,20 | 0,15–0,23 | 0,17–0,25 | 0,23–0,34 | 0,23–0,34 | |
| 4 | 70 | 90 | 110 | mm/dev | 0,11–0,20 | 0,11–0,20 | 0,11–0,20 | 0,11–0,20 | 0,13–0,23 | 0,14–0,25 | 0,18–0,34 | 0,18–0,34 | |
| M | 1 | 40 | 60 | 80 | mm/dev | 0,09–0,14 | 0,09–0,14 | 0,09–0,14 | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,16–0,25 |
| 2 | 35 | 55 | 70 | mm/dev | 0,09–0,14 | 0,09–0,14 | 0,09–0,14 | 0,09–0,14 | 0,11–0,17 | 0,13–0,20 | 0,16–0,25 | 0,16–0,25 | |
| K | 1 | 90 | 135 | 175 | mm/dev | 0,18–0,24 | 0,18–0,24 | 0,18–0,24 | 0,18–0,24 | 0,21–0,28 | 0,23–0,31 | 0,28–0,37 | 0,28–0,37 |
| 2 | 80 | 120 | 140 | mm/dev | 0,18–0,24 | 0,18–0,24 | 0,18–0,24 | 0,18–0,24 | 0,21–0,28 | 0,23–0,31 | 0,28–0,37 | 0,28–0,37 | |
| 3 | 70 | 110 | 125 | mm/dev | 0,15–0,24 | 0,15–0,24 | 0,15–0,24 | 0,15–0,24 | 0,18–0,26 | 0,21–0,29 | 0,23–0,37 | 0,23–0,37 | |
| Material | Cutting Speed | Inch | |||||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 0.315 | 0.394 | 0.472 | 0.551 | 0.630 | 0.787 | 0.945 | 1.102 | |||
| P | 1 | 360 | 460 | 560 | IPR | .006–.009 | .006–.009 | .006–.009 | .006–.009 | .007–.010 | .007–.011 | .009–.015 | .009–.015 |
| 2 | 330 | 390 | 460 | IPR | .007–.009 | .007–.009 | .007–.009 | .007–.009 | .007–.010 | .009–.011 | .011–.015 | .011–.015 | |
| 3 | 260 | 330 | 390 | IPR | .006–.008 | .006–.008 | .006–.008 | .006–.008 | .006–.009 | .007–.010 | .009–.013 | .009–.013 | |
| 4 | 230 | 300 | 360 | IPR | .004–.008 | .004–.008 | .004–.008 | .004–.008 | .005–.009 | .006–.010 | .007–.013 | .007–.013 | |
| M | 1 | 130 | 200 | 260 | IPR | .004–.006 | .004–.006 | .004–.006 | .004–.006 | .004–.007 | .005–.008 | .006–.010 | .006–.010 |
| 2 | 110 | 180 | 230 | IPR | .004–.006 | .004–.006 | .004–.006 | .004–.006 | .004–.007 | .005–.008 | .006–.010 | .006–.010 | |
| K | 1 | 300 | 440 | 570 | IPR | .007–.009 | .007–.009 | .007–.009 | .007–.009 | .008–.011 | .009–.012 | .011–.015 | .011–.015 |
| 2 | 260 | 390 | 460 | IPR | .007–.009 | .007–.009 | .007–.009 | .007–.009 | .008–.011 | .009–.012 | .011–.015 | .011–.015 | |
| 3 | 230 | 360 | 410 | IPR | .006–.009 | .006–.009 | .006–.009 | .006–.009 | .007–.010 | .008–.011 | .009–.015 | .009–.015 | |
| Cutting Speed | Inch | ||||||||||||
| Range | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Material | Min | Starting Value | Max | 0.315 | 0.394 | 0.472 | 0.551 | 0.630 | 0.787 | 0.945 | 1.102 | ||
| P | 1 | 360 | 460 | 560 | IPR | .006–.009 | .006–.009 | .006–.009 | .006–.009 | .007–.010 | .007–.011 | .009–.015 | .009–.015 |
| 2 | 330 | 390 | 460 | IPR | .007–.009 | .007–.009 | .007–.009 | .007–.009 | .007–.010 | .009–.011 | .011–.015 | .011–.015 | |
| 3 | 260 | 330 | 390 | IPR | .006–.008 | .006–.008 | .006–.008 | .006–.008 | .006–.009 | .007–.010 | .009–.013 | .009–.013 | |
| 4 | 230 | 300 | 360 | IPR | .004–.008 | .004–.008 | .004–.008 | .004–.008 | .005–.009 | .006–.010 | .007–.013 | .007–.013 | |
| M | 1 | 130 | 200 | 260 | IPR | .004–.006 | .004–.006 | .004–.006 | .004–.006 | .004–.007 | .005–.008 | .006–.010 | .006–.010 |
| 2 | 110 | 180 | 230 | IPR | .004–.006 | .004–.006 | .004–.006 | .004–.006 | .004–.007 | .005–.008 | .006–.010 | .006–.010 | |
| K | 1 | 300 | 440 | 570 | IPR | .007–.009 | .007–.009 | .007–.009 | .007–.009 | .008–.011 | .009–.012 | .011–.015 | .011–.015 |
| 2 | 260 | 390 | 460 | IPR | .007–.009 | .007–.009 | .007–.009 | .007–.009 | .008–.011 | .009–.012 | .011–.015 | .011–.015 | |
| 3 | 230 | 360 | 410 | IPR | .006–.009 | .006–.009 | .006–.009 | .006–.009 | .007–.010 | .008–.011 | .009–.015 | .009–.015 | |
| tolerance | |
| D1 inch | tolerance k8 |
| .2362 | .000/+.0007 |
| .000/+.0009 | |
| .000/+.0011 | |
| .000/+.0013 | |
| tolerance | |
| D1 metric | tolerance k8 |
| 6 | 0,000/+0,018 |
| 0,000/+0,022 | |
| 0,000/+0,027 | |
| 0,000/+0,033 | |
| D1 mm | D1 max | seat | L5 | LS | round D | 3 x D | L3 | L4 max | 5 x D | L3 | L4 max | 8 x D | L3 | L4 max | 12 x D | L3 | L4 max | wrench |
| .3125 | .3346 | F | .055 | 1.59 | .3750 | 3.13 | 1.29 | 1.00 | 3.88 | 2.05 | 1.67 | 4.88 | 3.17 | 2.67 | 6.25 | 4.54 | 4.02 | 170.306 |
| .3346 | .3543 | G | .059 | 1.59 | .3750 | 3.25 | 1.38 | 1.06 | 4.00 | 2.16 | 1.77 | 5.13 | 3.42 | 2.83 | 6.50 | 4.79 | 4.25 | 170.306 |
| .3543 | .3740 | H | .063 | 1.59 | .3750 | 3.38 | 1.46 | 1.12 | 4.13 | 2.28 | 1.87 | 5.25 | 3.54 | 2.99 | 6.75 | 5.04 | 4.49 | 170.306 |
| .3740 | .3937 | I | .063 | 1.59 | .3750 | 3.38 | 1.54 | 1.18 | 4.25 | 2.44 | 1.97 | 5.38 | 3.67 | 3.15 | 7.13 | 5.34 | 4.72 | 170.306 |
| .3740 | .3937 | I | .063 | 1.67 | .4375 | 3.38 | 1.54 | 1.18 | 4.38 | 2.44 | 1.97 | 5.38 | 3.59 | 3.15 | 7.00 | 5.29 | 4.72 | 170.306 |
| .3937 | .4133 | J | .067 | 1.67 | .4375 | 3.63 | 1.63 | 1.24 | 4.63 | 2.55 | 2.07 | 5.75 | 3.96 | 3.30 | 7.37 | 5.59 | 4.96 | 170.307 |
| .4134 | .4330 | K | .071 | 1.67 | .4375 | 3.75 | 1.71 | 1.30 | 4.75 | 2.67 | 2.16 | 6.00 | 4.21 | 3.46 | 7.63 | 5.84 | 5.20 | 170.307 |
| .4331 | .4527 | L | .075 | 1.67 | .4375 | 3.88 | 1.79 | 1.36 | 4.88 | 2.78 | 2.26 | 6.25 | 4.46 | 3.62 | 7.87 | 6.09 | 5.43 | 170.307 |
| .4528 | .4724 | M | .079 | 1.79 | .5000 | 3.88 | 1.87 | 1.42 | 5.00 | 2.90 | 2.36 | 6.50 | 4.59 | 3.78 | 8.25 | 6.34 | 5.67 | 170.307 |
| .4724 | .4921 | N | .083 | 1.79 | .5000 | 4.00 | 1.95 | 1.48 | 5.00 | 3.01 | 2.46 | 6.75 | 4.84 | 3.94 | 8.50 | 6.59 | 5.91 | 170.308 |
| .4921 | .5118 | O | .087 | 1.79 | .5000 | 4.13 | 2.04 | 1.54 | 5.13 | 3.13 | 2.56 | 7.00 | 5.09 | 4.09 | 8.75 | 6.84 | 6.14 | 170.308 |
| .4921 | .5118 | O | .087 | 1.79 | .5625 | 4.13 | 2.04 | 1.54 | 5.13 | 3.13 | 2.56 | 7.00 | 5.09 | 4.09 | 8.75 | 6.84 | 6.14 | 170.308 |
| .5118 | .5315 | P | .087 | 1.79 | .5625 | 4.25 | 2.11 | 1.60 | 5.25 | 3.24 | 2.66 | 7.13 | 5.22 | 4.25 | 9.00 | 7.09 | 6.38 | 170.308 |
| .5315 | .5511 | Q | .091 | 1.79 | .5625 | 4.25 | 2.19 | 1.65 | 5.50 | 3.39 | 2.75 | 7.25 | 5.34 | 4.41 | 9.25 | 7.34 | 6.61 | 170.308 |
| .5512 | .5708 | R | .095 | 1.79 | .5625 | 4.50 | 2.27 | 1.71 | 5.75 | 3.50 | 2.85 | 7.38 | 5.47 | 4.57 | 9.50 | 7.59 | 6.85 | 170.309 |
| .5709 | .5905 | S | .098 | 1.91 | .6250 | 4.50 | 2.34 | 1.77 | 5.75 | 3.61 | 2.95 | 7.50 | 5.47 | 4.72 | 9.87 | 7.85 | 7.09 | 170.309 |
| .5906 | .6299 | T | .102 | 1.91 | .6250 | 4.75 | 2.43 | 1.89 | 6.00 | 3.76 | 3.15 | 7.75 | 5.72 | 5.04 | 1.37 | 8.35 | 7.56 | 170.309 |
| .6299 | .6693 | U | .110 | 1.91 | .6875 | 4.88 | 2.59 | 2.01 | 6.25 | 4.06 | 3.34 | 8.00 | 5.97 | 5.35 | 11.00 | 8.97 | 8.03 | 170.309 |
| .6693 | .7086 | V | .116 | 1.91 | .6875 | 5.00 | 2.99 | 2.24 | 6.50 | 4.47 | 3.66 | 8.75 | 6.72 | 5.79 | 11.50 | 9.47 | 8.50 | 170.314 |
| .7087 | .7480 | W | .122 | 2.00 | .7500 | 5.25 | 3.13 | 2.25 | 6.88 | 4.76 | 3.86 | 9.25 | 7.13 | 6.11 | 12.13 | 1.01 | 8.98 | 170.314 |
| .7480 | .7874 | X | .129 | 2.00 | .7500 | 5.50 | 3.38 | 2.49 | 7.13 | 5.01 | 4.07 | 9.63 | 7.51 | 6.43 | 12.63 | 1.51 | 9.45 | 170.314 |
| .7874 | .8267 | Y | .136 | 2.00 | .8125 | 5.75 | 3.63 | 2.62 | 7.50 | 5.38 | 4.27 | 1.00 | 7.88 | 6.75 | 13.13 | 11.01 | 9.92 | 170.314 |
| .8268 | .8661 | Z | .142 | 2.07 | .8750 | 5.88 | 3.69 | 2.60 | 7.63 | 5.44 | 4.33 | 1.25 | 8.06 | 6.93 | 13.75 | 11.56 | 1.39 | 170.314 |
| .8661 | .9055 | ZA | .150 | 2.07 | .8750 | 6.00 | 3.81 | 2.72 | 7.88 | 5.69 | 4.53 | 1.63 | 8.44 | 7.24 | 14.25 | 12.06 | 1.87 | 170.314 |
| .9055 | .9448 | ZB | .158 | 2.15 | .9375 | 6.25 | 3.98 | 2.83 | 8.25 | 5.98 | 4.72 | 11.13 | 8.86 | 7.56 | 14.87 | 12.61 | 11.34 | 170.314 |
| .9449 | .9842 | ZC | .161 | 3.00 | 1.0000 | 7.25 | 4.13 | 2.95 | 9.38 | 6.26 | 4.92 | 12.25 | 9.13 | 7.87 | 16.25 | 13.13 | 11.81 | 170.314 |
| .9843 | 1.0236 | ZD | .169 | 3.00 | 1.0000 | 7.38 | 4.26 | 3.07 | 9.63 | 6.51 | 5.12 | 12.63 | 9.51 | 8.19 | 16.75 | 13.63 | 12.28 | 170.314 |
| 1.0236 | 1.0630 | ZE | .176 | 3.25 | 1.2500 | 7.86 | 4.49 | 3.19 | 9.99 | 6.62 | 5.32 | 13.25 | 9.88 | 8.50 | 17.50 | 14.13 | 12.76 | 170.314 |
| 1.0630 | 1.1023 | ZE | .185 | 3.25 | 1.2500 | 7.98 | 4.61 | 3.31 | 1.18 | 6.81 | 5.51 | 13.57 | 1.20 | 8.82 | 18.00 | 14.63 | 13.23 | 170.314 |
| D1 mm | D1 max | seat | L5 | LS | round D | 1.5 x D | L3 | L4 max | 3 x D | L3 | L4 max | 5 x D | L3 | L4 max | 8 x D | L3 | L4 max | 12 x D | L3 | L4 max | wrench |
| 8,000 | 8,499 | F | 1,4 | 41 | 10 | 67 | 23 | 13 | 79 | 35 | 26 | 97 | 53 | 43 | 123 | 79 | 68 | 157 | 113 | 102 | 170.306 |
| 8,500 | 8,999 | G | 1,5 | 41 | 10 | 68 | 24 | 14 | 81 | 37 | 27 | 100 | 56 | 45 | 127 | 83 | 72 | 163 | 119 | 108 | 170.306 |
| 9,000 | 9,499 | H | 1,6 | 41 | 10 | 69 | 25 | 14 | 83 | 39 | 29 | 103 | 58 | 48 | 132 | 88 | 76 | 170 | 126 | 114 | 170.306 |
| 9,500 | 9,999 | I | 1,6 | 41 | 10 | 70 | 26 | 15 | 85 | 41 | 30 | 107 | 63 | 50 | 137 | 92 | 80 | 177 | 133 | 120 | 170.306 |
| 10,000 | 10,499 | J | 1,7 | 46 | 12 | 77 | 28 | 16 | 92 | 43 | 32 | 115 | 66 | 53 | 147 | 98 | 84 | 189 | 140 | 126 | 170.307 |
| 10,500 | 10,999 | K | 1,8 | 46 | 12 | 78 | 29 | 17 | 94 | 45 | 33 | 118 | 68 | 55 | 151 | 101 | 88 | 195 | 146 | 132 | 170.307 |
| 11,000 | 11,499 | L | 1,9 | 46 | 12 | 79 | 30 | 17 | 96 | 47 | 35 | 121 | 71 | 58 | 156 | 105 | 92 | 202 | 153 | 138 | 170.307 |
| 11,500 | 11,999 | M | 2,0 | 46 | 12 | 80 | 31 | 18 | 98 | 49 | 36 | 124 | 75 | 60 | 160 | 110 | 96 | 208 | 159 | 144 | 170.307 |
| 12,000 | 12,499 | N | 2,1 | 46 | 14 | 83 | 34 | 19 | 101 | 52 | 38 | 127 | 78 | 63 | 165 | 116 | 100 | 215 | 166 | 150 | 170.308 |
| 12,500 | 12,999 | O | 2,2 | 46 | 14 | 84 | 35 | 20 | 103 | 54 | 39 | 130 | 81 | 65 | 169 | 120 | 104 | 221 | 172 | 156 | 170.308 |
| 13,000 | 13,499 | P | 2,2 | 46 | 14 | 85 | 36 | 20 | 105 | 56 | 41 | 133 | 84 | 68 | 174 | 125 | 108 | 228 | 179 | 162 | 170.308 |
| 13,500 | 13,999 | Q | 2,3 | 46 | 14 | 86 | 37 | 21 | 107 | 58 | 42 | 137 | 88 | 70 | 179 | 130 | 112 | 235 | 186 | 168 | 170.308 |
| 14,000 | 14,499 | R | 2,4 | 49 | 16 | 91 | 39 | 22 | 112 | 60 | 44 | 143 | 91 | 73 | 187 | 135 | 116 | 245 | 193 | 174 | 170.309 |
| 14,500 | 14,999 | S | 2,5 | 49 | 16 | 92 | 40 | 23 | 114 | 62 | 45 | 146 | 94 | 75 | 191 | 139 | 120 | 251 | 199 | 180 | 170.309 |
| 15,000 | 15,999 | T | 2,6 | 49 | 16 | 94 | 42 | 24 | 118 | 66 | 48 | 152 | 100 | 80 | 200 | 148 | 128 | 264 | 212 | 192 | 170.309 |
| 16,000 | 16,999 | U | 2,8 | 49 | 18 | 97 | 45 | 26 | 122 | 70 | 51 | 158 | 106 | 85 | 209 | 157 | 136 | 277 | 225 | 204 | 170.309 |
| 17,000 | 17,999 | V | 2,9 | 49 | 18 | 100 | 48 | 27 | 127 | 75 | 54 | 165 | 113 | 90 | 219 | 167 | 144 | 291 | 239 | 216 | 170.314 |
| 18,000 | 18,999 | W | 3,1 | 51 | 20 | 105 | 51 | 29 | 133 | 79 | 57 | 173 | 119 | 95 | 230 | 176 | 152 | 306 | 252 | 228 | 170.314 |
| 19,000 | 19,999 | X | 3,3 | 51 | 20 | 107 | 53 | 30 | 137 | 83 | 60 | 179 | 125 | 100 | 239 | 185 | 160 | 319 | 265 | 240 | 170.314 |
| 20,000 | 20,999 | Y | 3,5 | 57 | 25 | 116 | 56 | 32 | 147 | 87 | 63 | 191 | 131 | 105 | 254 | 200 | 168 | 344 | 284 | 252 | 170.314 |
| 21,000 | 21,999 | Z | 3,6 | 57 | 25 | 118 | 58 | 33 | 151 | 91 | 66 | 198 | 138 | 110 | 264 | 204 | 176 | 352 | 292 | 264 | 170.314 |
| 22,000 | 22,999 | ZA | 3,8 | 57 | 25 | 122 | 62 | 35 | 156 | 96 | 69 | 204 | 144 | 115 | 273 | 213 | 184 | 365 | 305 | 276 | 170.314 |
| 23,000 | 23,999 | ZB | 4,0 | 57 | 25 | 124 | 64 | 36 | 160 | 100 | 72 | 210 | 150 | 120 | 282 | 222 | 192 | 378 | 318 | 288 | 170.314 |
| 24,000 | 24,999 | ZC | 4,1 | 57 | 25 | 127 | 67 | 38 | 164 | 104 | 75 | 216 | 156 | 125 | 291 | 231 | 200 | 391 | 331 | 300 | 170.314 |
| 25,000 | 25,999 | ZD | 4,3 | 61 | 32 | 133 | 69 | 39 | 172 | 108 | 78 | 227 | 163 | 130 | 305 | 241 | 208 | 409 | 345 | 312 | 170.314 |
| 26,000 | 26,999 | ZE | 4,5 | 61 | 32 | 138 | 74 | 41 | 178 | 114 | 81 | 232 | 168 | 135 | 315 | 251 | 216 | 423 | 359 | 324 | 170.314 |
| 27,000 | 27,999 | ZE | 4,7 | 61 | 32 | 139 | 75 | 42 | 181 | 117 | 84 | 239 | 175 | 140 | 323 | 259 | 224 | 435 | 371 | 336 | 170.314 |
| D1 mm | D1 max | seat | L5 | LS | flanged D | 1.5 x D | L3 | L4 max | 3 x D | L3 | L4 max | 5 x D | L3 | L4 max | 8 x D | L3 | L4 max | wrench |
| 8,000 | 8,490 | F | 1,4 | 45 | 12 | 73 | 23 | 13 | 86 | 35 | 26 | 104 | 53 | 43 | 129 | 79 | 68 | 170.306 |
| 8,500 | 8,990 | G | 1,5 | 45 | 12 | 74 | 24 | 14 | 88 | 37 | 27 | 107 | 56 | 45 | 134 | 83 | 72 | 170.306 |
| 9,000 | 9,490 | H | 1,6 | 45 | 12 | 76 | 25 | 14 | 90 | 39 | 29 | 110 | 59 | 48 | 138 | 88 | 76 | 170.306 |
| 9,500 | 9,990 | I | 1,6 | 45 | 12 | 77 | 26 | 15 | 92 | 41 | 30 | 114 | 63 | 50 | 144 | 93 | 80 | 170.306 |
| 10,000 | 10,490 | J | 1,7 | 48 | 16 | 81 | 28 | 16 | 97 | 43 | 32 | 120 | 66 | 53 | 151 | 97 | 84 | 170.307 |
| 10,500 | 10,990 | K | 1,8 | 48 | 16 | 82 | 29 | 17 | 99 | 45 | 33 | 123 | 69 | 55 | 156 | 102 | 88 | 170.307 |
| 11,000 | 11,490 | L | 1,9 | 48 | 16 | 84 | 30 | 17 | 101 | 47 | 35 | 126 | 72 | 58 | 160 | 107 | 92 | 170.307 |
| 11,500 | 11,990 | M | 2,0 | 48 | 16 | 85 | 31 | 18 | 103 | 49 | 36 | 129 | 75 | 60 | 165 | 111 | 96 | 170.307 |
| 12,000 | 12,490 | N | 2,1 | 48 | 16 | 87 | 34 | 19 | 106 | 52 | 38 | 132 | 78 | 63 | 169 | 116 | 100 | 170.308 |
| 12,500 | 12,990 | O | 2,2 | 48 | 16 | 88 | 35 | 20 | 108 | 54 | 39 | 135 | 81 | 65 | 174 | 120 | 104 | 170.308 |
| 13,000 | 13,490 | P | 2,2 | 48 | 16 | 90 | 36 | 20 | 110 | 56 | 41 | 138 | 84 | 68 | 178 | 124 | 108 | 170.308 |
| 13,500 | 13,990 | Q | 2,3 | 48 | 16 | 91 | 37 | 21 | 112 | 58 | 42 | 142 | 88 | 70 | 184 | 130 | 112 | 170.308 |
| 14,000 | 14,490 | R | 2,4 | 48 | 16 | 92 | 39 | 22 | 114 | 60 | 44 | 145 | 91 | 73 | 188 | 134 | 116 | 170.309 |
| 14,500 | 14,990 | S | 2,5 | 48 | 16 | 93 | 40 | 23 | 116 | 62 | 45 | 148 | 94 | 75 | 193 | 139 | 120 | 170.309 |
| 15,000 | 15,990 | T | 2,6 | 50 | 20 | 98 | 42 | 24 | 122 | 66 | 48 | 156 | 100 | 80 | 204 | 148 | 128 | 170.309 |
| 16,000 | 16,990 | U | 2,8 | 50 | 20 | 100 | 45 | 26 | 126 | 70 | 51 | 162 | 106 | 85 | 213 | 157 | 136 | 170.309 |
| 17,000 | 17,990 | V | 2,9 | 50 | 20 | 104 | 48 | 27 | 131 | 75 | 54 | 169 | 113 | 90 | 223 | 167 | 144 | 170.314 |
| 18,000 | 18,990 | W | 3,1 | 56 | 25 | 112 | 51 | 29 | 141 | 79 | 57 | 181 | 119 | 95 | 238 | 176 | 152 | 170.314 |
| 19,000 | 19,990 | X | 3,3 | 56 | 25 | 115 | 53 | 30 | 144 | 83 | 60 | 187 | 125 | 100 | 247 | 185 | 160 | 170.314 |
| 20,000 | 20,990 | Y | 3,5 | 56 | 25 | 117 | 56 | 32 | 149 | 87 | 63 | 193 | 131 | 105 | 256 | 194 | 168 | 170.314 |
| 21,000 | 21,990 | Z | 3,6 | 56 | 25 | 120 | 58 | 33 | 153 | 91 | 66 | 200 | 138 | 110 | 266 | 204 | 176 | 170.314 |
| 22,000 | 22,990 | ZA | 3,8 | 56 | 25 | 123 | 62 | 35 | 158 | 96 | 69 | 206 | 144 | 115 | 275 | 213 | 184 | 170.314 |
| 23,000 | 23,990 | ZB | 4,0 | 56 | 25 | 126 | 64 | 36 | 162 | 100 | 72 | 212 | 150 | 120 | 284 | 222 | 192 | 170.314 |
| 24,000 | 24,990 | ZC | 4,1 | 56 | 25 | 128 | 67 | 38 | 166 | 104 | 75 | 218 | 156 | 125 | 293 | 231 | 200 | 170.314 |
| 25,000 | 25,990 | ZD | 4,3 | 56 | 25 | 131 | 69 | 39 | 170 | 108 | 78 | 225 | 163 | 130 | 303 | 241 | 208 | 170.314 |
| 26,000 | 26,990 | ZE | 4,5 | 56 | 25 | 135 | 74 | 41 | 176 | 114 | 81 | 230 | 168 | 135 | 313 | 251 | 216 | 170.314 |
| 27,000 | 27,990 | ZE | 4,7 | 56 | 25 | 137 | 75 | 42 | 179 | 117 | 84 | 237 | 175 | 140 | 321 | 259 | 224 | 170.314 |
| D1 mm | D1 max | seat | L5 | LS | flanged D | 3 x D | L3 | L4 max | 5 x D | L3 | L4 max | 8 x D | L3 | L4 max | wrench |
| .3125 | .3343 | F | .054 | 1.77 | .5000 | 3.40 | 1.41 | 1.00 | 4.15 | 2.16 | 1.67 | 5.15 | 3.16 | 2.28 | 170.306 |
| .3390 | .3539 | G | .059 | 1.77 | .5000 | 3.52 | 1.53 | 1.06 | 4.27 | 2.28 | 1.77 | 5.27 | 3.28 | 2.83 | 170.306 |
| .3580 | .3736 | H | .062 | 1.77 | .5000 | 3.65 | 1.66 | 1.12 | 4.40 | 2.41 | 1.87 | 5.52 | 3.53 | 2.99 | 170.306 |
| .3750 | .3933 | I | .065 | 1.77 | .5000 | 3.65 | 1.66 | 1.18 | 4.52 | 2.53 | 1.97 | 5.77 | 3.78 | 3.15 | 170.306 |
| .3946 | .4130 | J | .068 | 1.89 | .6250 | 3.89 | 1.78 | 1.24 | 4.76 | 2.66 | 2.07 | 6.01 | 3.91 | 3.31 | 170.307 |
| .4219 | .4327 | K | .073 | 1.89 | .6250 | 3.89 | 1.78 | 1.30 | 4.89 | 2.78 | 2.17 | 6.14 | 4.03 | 3.46 | 170.307 |
| .4375 | .4524 | L | .076 | 1.89 | .6250 | 4.01 | 1.91 | 1.36 | 5.01 | 2.91 | 2.26 | 6.39 | 4.28 | 3.62 | 170.307 |
| .4531 | .4720 | M | .078 | 1.89 | .6250 | 4.14 | 2.03 | 1.42 | 5.14 | 3.03 | 2.36 | 6.51 | 4.41 | 3.78 | 170.307 |
| .4844 | .4917 | N | .084 | 1.89 | .6250 | 4.26 | 2.16 | 1.48 | 5.26 | 3.16 | 2.46 | 6.76 | 4.66 | 3.94 | 170.308 |
| .5000 | .5114 | O | .086 | 1.89 | .6250 | 4.26 | 2.16 | 1.54 | 5.39 | 3.28 | 2.56 | 6.89 | 4.78 | 4.09 | 170.308 |
| .5156 | .5311 | P | .089 | 1.89 | .6250 | 4.39 | 2.28 | 1.59 | 5.51 | 3.41 | 2.66 | 7.01 | 4.91 | 4.25 | 170.308 |
| .5469 | .5508 | Q | .095 | 1.89 | .6250 | 4.39 | 2.28 | 1.65 | 5.64 | 3.53 | 2.76 | 7.26 | 5.16 | 4.41 | 170.308 |
| .5625 | .5705 | R | .097 | 1.89 | .6250 | 4.51 | 2.41 | 1.71 | 5.76 | 3.66 | 2.85 | 7.51 | 5.41 | 4.57 | 170.309 |
| .5774 | .5902 | S | .100 | 1.89 | .6250 | 4.64 | 2.53 | 1.77 | 5.89 | 3.78 | 2.95 | 7.64 | 5.53 | 4.72 | 170.309 |
| .5938 | .6295 | T | .102 | 1.97 | .7500 | 4.84 | 2.66 | 1.89 | 6.22 | 4.03 | 3.15 | 8.09 | 5.91 | 5.04 | 170.309 |
| .6310 | .6689 | U | .109 | 1.97 | .7500 | 4.97 | 2.78 | 2.01 | 6.47 | 4.28 | 3.35 | 8.47 | 6.28 | 5.35 | 170.309 |
| .6719 | .7083 | V | .116 | 1.97 | .7500 | 5.22 | 3.03 | 2.13 | 6.72 | 4.53 | 3.54 | 8.84 | 6.66 | 5.67 | 170.314 |
| .7188 | .7476 | W | .124 | 1.97 | .7500 | 5.34 | 3.16 | 2.24 | 6.97 | 4.78 | 3.74 | 9.22 | 7.03 | 5.98 | 170.314 |
| .7500 | .7870 | X | .129 | 1.97 | .7500 | 5.47 | 3.28 | 2.36 | 7.22 | 5.03 | 3.94 | 9.47 | 7.28 | 6.30 | 170.314 |
| .7969 | .8264 | Y | .137 | 2.20 | 1.0000 | 5.95 | 3.53 | 2.48 | 7.58 | 5.16 | 4.13 | 10.08 | 7.66 | 6.61 | 170.314 |
| .8440 | .8657 | Z | .146 | 2.20 | 1.0000 | 6.08 | 3.66 | 2.60 | 7.95 | 5.53 | 4.33 | 10.45 | 8.03 | 6.93 | 170.314 |
| .8750 | .9051 | ZA | .151 | 2.20 | 1.0000 | 6.20 | 3.78 | 2.72 | 8.20 | 5.78 | 4.53 | 10.83 | 8.41 | 7.24 | 170.314 |
| .9375 | .9445 | ZB | .162 | 2.20 | 1.0000 | 6.45 | 4.03 | 2.83 | 8.33 | 5.91 | 4.72 | 11.20 | 8.78 | 7.56 | 170.314 |
| .9690 | .9839 | ZC | .167 | 2.20 | 1.0000 | 6.58 | 4.16 | 2.95 | 8.58 | 6.16 | 4.92 | 11.58 | 9.16 | 7.87 | 170.314 |
| .9744 | 1.0232 | ZD | .172 | 2.20 | 1.0000 | 6.70 | 4.28 | 3.07 | 8.95 | 6.53 | 5.12 | 11.95 | 9.53 | 8.19 | 170.314 |
| 1.0240 | 1.0620 | ZE | .176 | 2.20 | 1.0000 | 6.83 | 4.41 | 3.19 | 9.08 | 6.66 | 5.32 | 11.70 | 9.28 | 8.50 | 170.314 |
| 1.0630 | 1.1020 | ZE | .184 | 2.20 | 1.0000 | 6.95 | 4.53 | 3.30 | 9.20 | 6.78 | 5.51 | 11.95 | 9.53 | 8.69 | 170.314 |
I have read and accepted the Terms & Conditions of use
ISO Catalog Number
ANSI Catalog Number
to find similar products.Please select a file to download
Models
Product data
. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.
Minimum quantity should be
| SAP Material Number | ISO Catalog Number | Grade |
|---|
You are about to leave the Solution building process.
Are you sure you want to leave?
