NTU Threading - 1799498 - Kennametal
Product Similar To:
NTU
Top Notch™ Threading Inserts
Material Number1799498
ISO Catalog IDNTU4LANSI Catalog IDNTU4L
List Price
/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
MetricInch
| Material Number | 1799498 |
| ISO Catalog ID | NTU4L |
| ANSI Catalog ID | NTU4L |
| Grade | KC5010 |
| Insert Size | 4U |
| Type of Thread | UN |

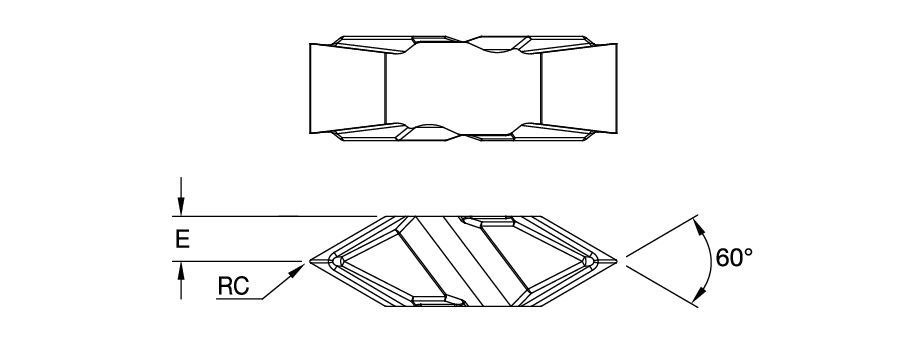

| [RC] Corner Radius Center | 0.125 mm |
| [RC] Corner Radius Center | 0.005 in |
| [E] Profile Distance | 3.175 mm |
| [E] Profile Distance | 0.125 in |
| Thread Pitch External | 1,25-6,25 |
| TPI External | 4-20 |
Grades
KC5010
Composition: An advanced PVD AlTiN coating over a very deformation-resistant unalloyed carbide substrate. The new and improved coating enables speeds to be increased by 50–100%.
Application: The KC5010 grade is ideal for finishing to general machining of most workpiece materials at higher speeds. Excellent for machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys under stable conditions. It also performs well machining hardened and short chipping materials.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
