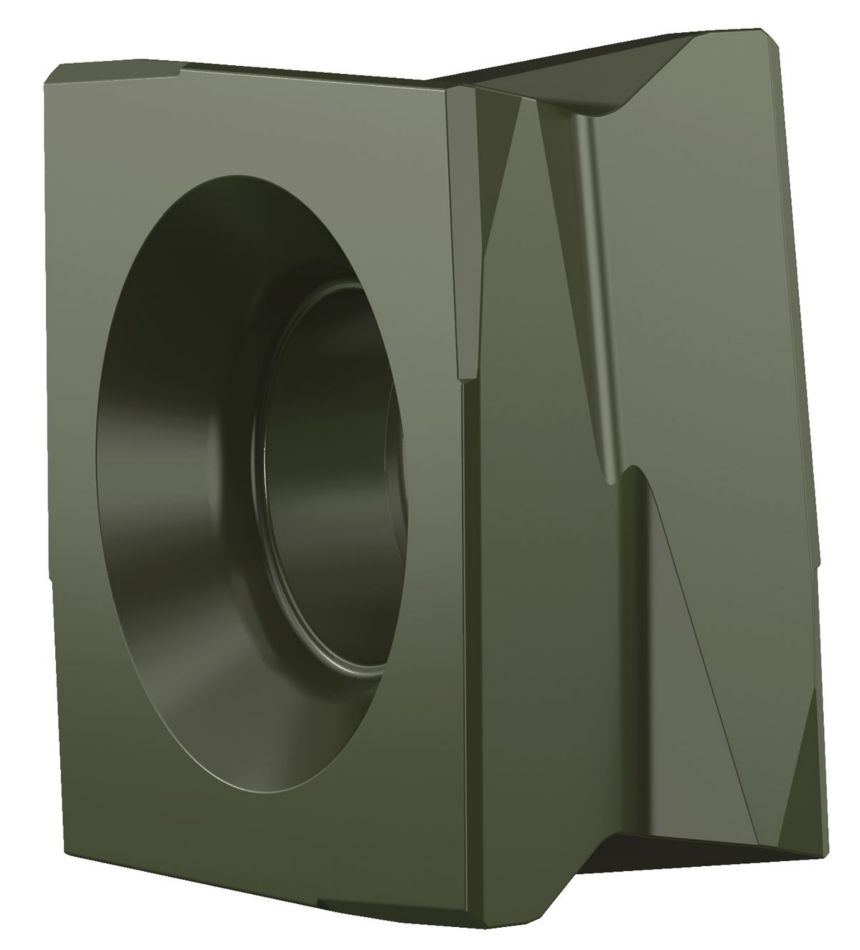

Fix-Perfect™ 90°/0° Cast Iron Series • Milling Insert • Left Handed • SPHX-GPB • Medium Machining
Face milling insert with eight cutting edges, precision ground.
Material Number1874234
ISO Catalog IDSPHX1205PCTLGPBKANSI Catalog IDSPHX1205PCTLGPBK
List Price
$43.90/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
MetricInch
| Material Number | 1874234 |
| ISO Catalog ID | SPHX1205PCTLGPBK |
| ANSI Catalog ID | SPHX1205PCTLGPBK |
| Grade | KY3500 |
| [S] Insert Thickness | 5.5 mm |
| [S] Insert Thickness | 0.2165 in |
| [BS] Corner Facet Length | 0.7 mm |
| [BS] Corner Facet Length | 0.0276 in |
| Average Chip Thickness [HM] | 0.24 mm |
| Cutting Edges per Insert | 8 |
Grades
KY3500
A ceramic cutting material based on micro-grain Si3N4 primarily for use in light to general machining of gray cast iron and ferritic ductile cast iron. Dry machining is recommended.
Features and benefits
- Precision ground insert for best run-out and surface finish.
- Milling insert for cast iron and compacted graphite iron (CGI) machining.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
