| Número de material | 1871164 |
| ID do catálogo ISO | CCMT09T302UF |
| ID do catálogo ANSI | CCMT32505UF |
| Grade | KC5010 |

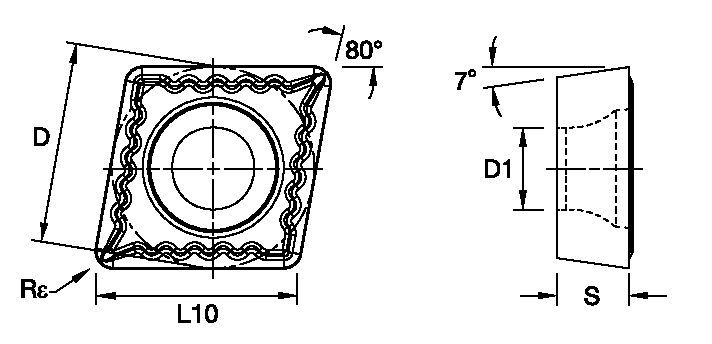

| [D] Insert IC Size | 9.525 mm |
| [D] Insert IC Size | 0.375 in |
| [L10] Insert Cutting Edge Length | 9.672 mm |
| [L10] Insert Cutting Edge Length | 0.3808 in |
| [S] Insert Thickness | 3.97 mm |
| [S] Insert Thickness | 0.1563 in |
| [Rε] Corner Radius | 0.2 mm |
| [Rε] Corner Radius | 0.008 in |
| [D1] Insert Hole Size | 4.4 mm |
| [D1] Insert Hole Size | 0.1732 in |
Classes
KC5010
Composition: An advanced PVD AlTiN coating over a very deformation-resistant unalloyed carbide substrate. The new and improved coating enables speeds to be increased by 50–100%.
Application: The KC5010 grade is ideal for finishing to general machining of most workpiece materials at higher speeds. Excellent for machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys under stable conditions. It also performs well machining hardened and short chipping materials.
Criar solução para calcular avanços e velocidade
Após criar uma solução basta escolher o ícone Avanços & Velocidades e o nosso sistema irá fornecer recomendações. Pode personalizar as informações adicionando a sua máquina e especificações ou fazer ajustes utilizando os controlos deslizantes.
