End Mill Adapters
End Mill Adapters
End Mill Adapters
End Mill Adapters

EM MM-BT Form AD

End Mill Adapters

Select Filters
Filters
Filters
View filters in
Metric
Inch
Front-End
Gage Length
Gage Length
  • 1.9690 in (1)
  • 2.3620 in (4)
  • 3.1495 in (1)
Gage Length
Gage Length
  • 50.0000 mm (1)
  • 60.0000 mm (4)
  • 80.0000 mm (1)
Front End Size
Front End Size
  • 0.2362 in (1)
  • 0.315 in (1)
  • 0.3937 in (1)
  • 0.4724 in (1)
  • 0.6299 in (1)
  • 0.7874 in (1)
Front End Size Min to Front End Size Max
Front End Size
Front End Size
  • 6.0 mm (1)
  • 8.0 mm (1)
  • 10.0 mm (1)
  • 12.0 mm (1)
  • 16.0 mm (1)
  • 20.0 mm (1)
Front End Size Min to Front End Size Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 6 of 6 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

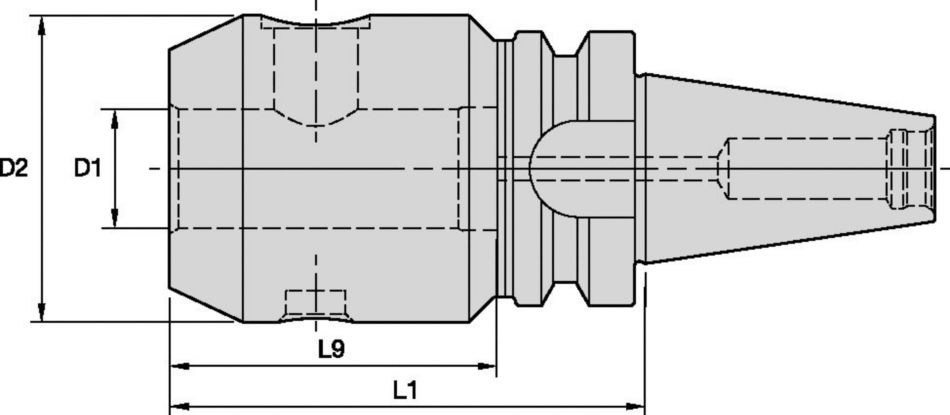

SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Clamp Screw ID Drive Size Torque Catalog Newton Meters Weight Kilograms
1258015 BT30EM06050M BT30EM06050M 6.0000 .2362 24.5000 .9646 50.0000 1.969 73.8000 2.904 3 mm 7 0.46
    List price:
    $99.67 /each.
    Your price::
    Qty
    1258018 BT30EM08060M BT30EM08060M 8.0000 .3150 27.5000 1.082 60.0000 2.362 83.8000 3.298 4 mm 15 0.52
      List price:
      $99.67 /each.
      Your price::
      Qty
      1258019 BT30EM10060M BT30EM10060M 10.0000 .3937 34.5000 1.358 60.0000 2.362 83.8000 3.298 5 mm 25 0.60
        List price:
        $99.67 /each.
        Your price::
        Qty
        1155346 BT30EM12060M BT30EM12060M 12.0000 .4724 41.5000 1.633 60.0000 2.362 50.0000 1.968 6 mm 35 0.70
          List price:
          $99.67 /each.
          Your price::
          Qty
          1258020 BT30EM16060M BT30EM16060M 16.0000 .6299 47.5000 1.870 60.0000 2.362 53.0000 2.086 6 mm 50 0.77
            List price:
            $99.67 /each.
            Your price::
            Qty
            1258021 BT30EM20080M BT30EM20080M 20.0000 .7874 51.5000 2.027 80.0000 3.149 55.0000 2.165 8 mm 95 1.03
              List price:
              $99.67 /each.
              Your price::
              Qty
              List price:
              Discount: %
              Your price::
              Replacement This item is not available
              Replacement Product This item may be available through a distributor
              Qty

              Sold in pkg. of
