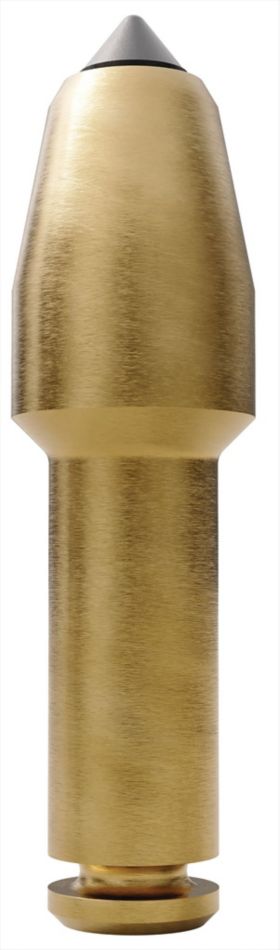

| SAP Material Number | 1010804 |
| ISO Catalog Number | C21RHD |
| ANSI Catalog Number | C21RHD |
| Grade | K3560 |
| Point Included Angle [SIGMA] | 75.000 |
| [TD] Tip Diameter | 12.217 mm |
| [TD] Tip Diameter | .4810 in |
| [TL] Tip Length | 20.599 mm |
| [TL] Tip Length | .8110 in |
| [L1] Gage Length | 45.432 mm |
| [L1] Gage Length | 1.788 in |
| [D2] Body Diameter Workpiece Side | 26.975 mm |
| [D2] Body Diameter Workpiece Side | 1.062 in |
| [D] Shank/Bore Diameter | 18.669 mm |
| [D] Shank/Bore Diameter | .7350 in |
| [LRO] Retainer Offset Length | 47.587 mm |
| [LRO] Retainer Offset Length | 1.873 in |
| [LS] Shank Length | 54.953 mm |
| [LS] Shank Length | 2.163 in |
| [OAL] Overall Length | 100.385 mm |
| [OAL] Overall Length | 3.952 in |
