      Kenloc™ Inserts
      Kenloc™ Inserts
      Kenloc™ Inserts
      Kenloc™ Inserts

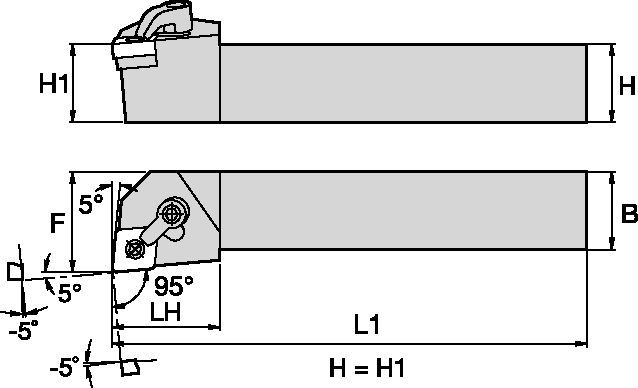

      MCLN -5°

      Kenloc™ Inserts

      Metric
      Inch
      SAP Material Number 1096108
      ISO Catalog Number MCLNL083A
      ANSI Catalog Number MCLNL083A
      [H] Shank Height 12.7000
      [H] Shank Height .5000
      [B] Shank Width 12.7000
      [B] Shank Width .5000
      [F] F Dimension 19.0500
      [F] F Dimension .7500
      [L1] Tool Length 101.6000
      [L1] Tool Length 4.000
      [LH] Head Length 25.4000
      [LH] Head Length 1.000
      Gage Insert CN..322
      Lock Pin ID Drive Size 5/64
      Clamp Screw ID Drive Size 3/32
      See all Product Variants

      Uses and application

      • TurningTurning
      • ProfilingProfiling
      • FacingFacing

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      S High-Temp Alloys

      Machine Side

      loading...

      Workpiece Side

      loading...

      Spare Parts for MCLN -5°

      Spare Part

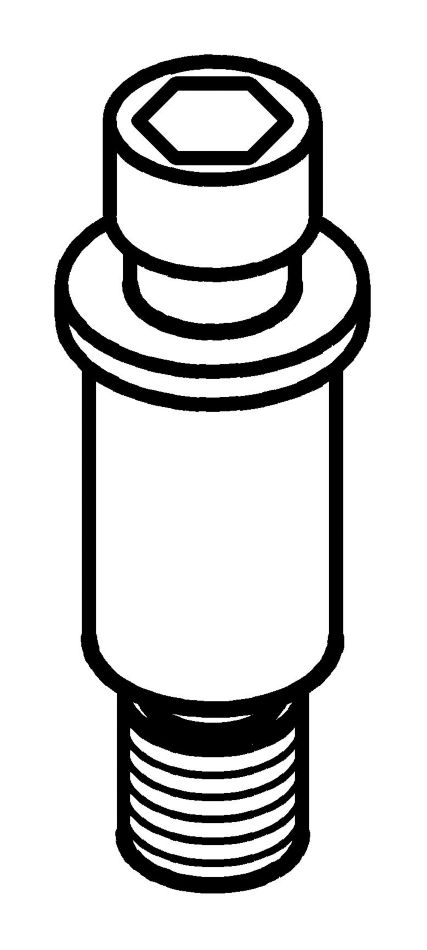

        LOCK PIN THREADED
        LOCK PIN THREADED
        Spare Part
          STEEL CLAMP THREADED CK6
          STEEL CLAMP THREADED CK6
          Spare Part

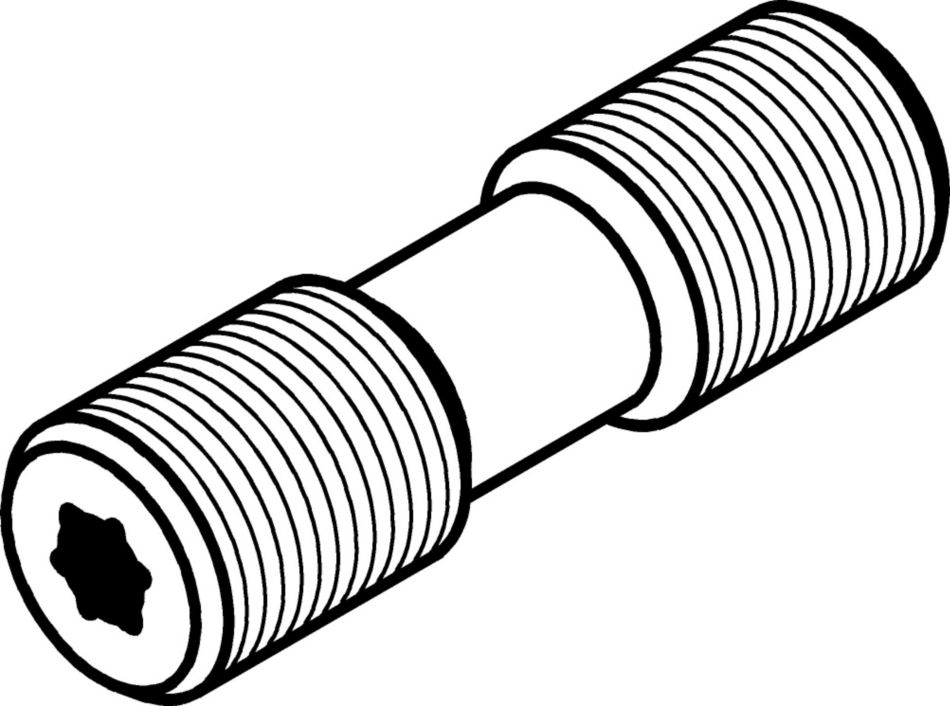

            CLAMP SCR #10-32 / #10-32 x 0.84375
            CLAMP SCR #10-32 / #10-32 x 0.84375
