Fraises modulaires

Le SEUL système modulaire aux performances comparables à celles d'une fraise en carbure monobloc

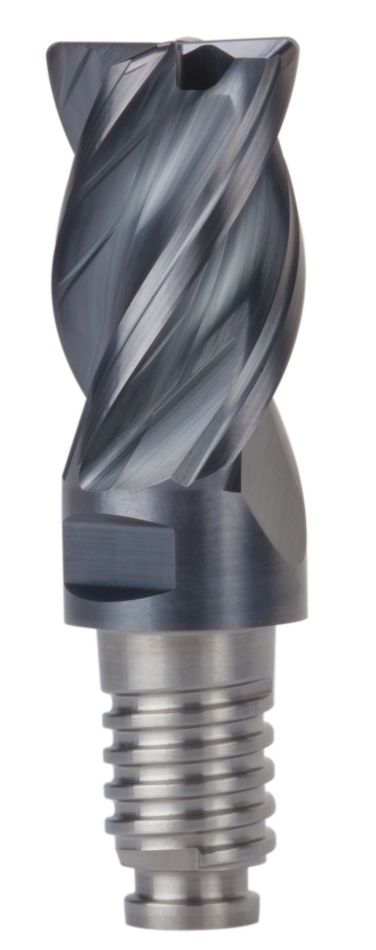

Duo-Lock™ est une nouvelle connexion révolutionnaire pour fraises carbure monobloc. Le concept de tête amovible associe grande concentricité et répétabilité de longueur élevée avec un maximum de stabilité, formant une interface précise et quasi incassable.

Pour adapter parfaitement le Duo-Lock™ à votre broche, nous vous proposons toute une gamme d'attachements et de rallonges.

  • Rallonges de longueur standard avec Safe-Lock™, cylindriques et coniques.
  • Rallonges ajustées à la dimension, cylindriques et coniques.
  • Attachements monobloc avec queue HSK, PSC, CV et BT.

Tous font partie du programme Premier choix.

Sélection, commande et utilisation simples, performances exceptionnelles. En savoir plus sur Premier choix.

Duo-Lock Features

Des diamètres intermédiaires sont disponibles sur demande sous forme de solutions personnalisées.

Le reconditionnement maximisera la durée de vie de l’outil et votre investissement.

Large palette d’outils d’ébauche, de finition, de profilage, de chanfrein, et d’ ébauches disponibles. Couvre toutes les applications de fraisage deux tailles.

Le double cône fournit une répétabilité axiale de 10μm en supprimant des opérations de préréglage onéreuses. Répétabilité de longueur d’un embout à l’autre, 50μm.

Le filetage intelligent permet de maintenir les contraintes en-dessous des valeurs critiques, ce qui offre >un transfert de couple de 25% supérieur.

La 3ème face de contact assure une grande rigidité et une précision élevée avec un faux-rond < ..5μm.

Grâce à une clé Duo-Lock™, le changement d'outil est facilité et peut être réalisé en quelques secondes.

New Icon Test

Solid ER Collets for Duo-Lock

  • Adapting Duo-Lock Modular End Mills to CNC Lathes
  • Duo-Lock solid ER collets turn CNC lathe machines into multitasking machines by providing access of any Duo-Lock modular end mills to ER driven units.
  • These new Duo-Lock solid ER collets maximize machine flexibility through a broad range of
    Duo-Lock modular end mills. From high-performance versatile tools, to roughers and finishers,
    as well as chamfering and corner rounding tools.
  • The short projection from the face of the collet nut provides rigid toolholding and requires a small machine envelope.
  • Compatible with all standard ER collet chucks and ER driven units.
