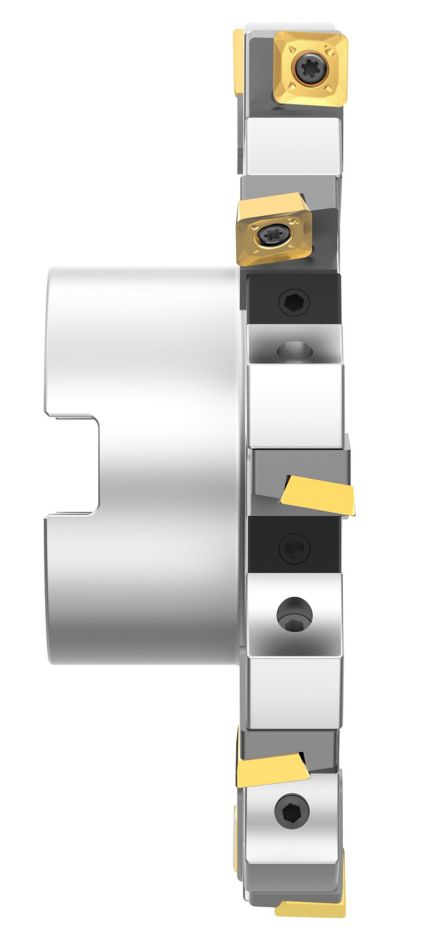

Rainurage : fraisage de côtéDownloaded file will be available after import in the {{cadTool}} tool library.
| Numéro de matériel | 2268727 |
| Ref. ISO Catalogue | KSSS1200BSD43N709-813 |
| Ref. ANSI Catalogue | KSSS1200BSD43N709-813 |

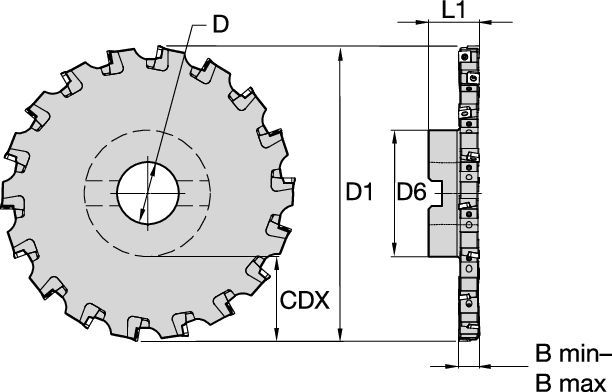

| [D1] Diamètre effectif de coupe | 304.8 mm |
| [D1] Diamètre effectif de coupe | 12 in |
| [D] Adaptateur / Queue / Diamètre d’alésage | 63.5 mm |
| [D] Adaptateur / Queue / Diamètre d’alésage | 2.5 in |
| [D6] Diamètre du moyeu | 133.35 mm |
| [D6] Diamètre du moyeu | 5.25 in |
| [CDX] Profondeur de coupe radiale maximale | 84.125 mm |
| [CDX] Profondeur de coupe radiale maximale | 3.312 in |
| [BM] Largeur de coupe minimale | 18.009 mm |
| [BM] Largeur de coupe minimale | 0.709 in |
| [BMAX] Largeur de coupe maximale | 20.65 mm |
| [BMAX] Largeur de coupe maximale | 0.813 in |
| Nombre de plaquettes | 18 |
| Nombre d’arêtes de coupe efficaces sur la face | 9 |
| T/Min max | 6650 |
| Poids Livres | 19.83 |
Rainurage : fraisage de côtéCréez une Solution pour calculer les avances et vitesses
Après avoir créé une Solution, choisissez simplement l'icône "Avances et Vitesses" et notre système vous fournira ses recommandations. Vous pouvez les personnaliser en ajoutant votre machine et vos spécifications techniques, ou en ajustant votre demande à l'aide des curseurs.
| KSSM™ 12 Slotting • Recommended Starting Feeds [mm/th] | |||||||||||||||
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | |||||||||||
| L | M | H | L | M | H | L | M | H | L | M | H | L | M | H | |
| .F..LE | 0,12 | 0,42 | 0,74 | 0,08 | 0,30 | 0,54 | 0,06 | 0,23 | 0,40 | 0,06 | 0,20 | 0,35 | 0,05 | 0,18 | 0,32 |
| .E..LD2 | 0,12 | 0,46 | 0,81 | 0,09 | 0,33 | 0,58 | 0,07 | 0,25 | 0,43 | 0,06 | 0,22 | 0,38 | 0,05 | 0,20 | 0,35 |
| .E..GB2 | 0,23 | 0,53 | 0,89 | 0,17 | 0,38 | 0,64 | 0,13 | 0,29 | 0,48 | 0,11 | 0,25 | 0,41 | 0,10 | 0,23 | 0,38 |
| .S..GB2 | 0,23 | 0,59 | 0,95 | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,25 | 0,41 |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use "Light Machining" values as starting feed rate. | |||||||||||||||
| KSSM™ 12 Slotting • Recommended Starting Feeds [IPT] | |||||||||||||||
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | |||||||||||
| L | M | H | L | M | H | L | M | H | L | M | H | L | M | H | |
| .F..LE | 0.005 | 0.017 | 0.030 | 0.003 | 0.012 | 0.021 | 0.003 | 0.009 | 0.016 | 0.002 | 0.008 | 0.014 | 0.002 | 0.007 | 0.013 |
| .E..LD2 | 0.005 | 0.018 | 0.032 | 0.004 | 0.013 | 0.023 | 0.003 | 0.010 | 0.017 | 0.002 | 0.009 | 0.015 | 0.002 | 0.008 | 0.014 |
| .E..GB2 | 0.009 | 0.021 | 0.035 | 0.007 | 0.015 | 0.025 | 0.005 | 0.011 | 0.019 | 0.004 | 0.010 | 0.016 | 0.004 | 0.009 | 0.015 |
| .S..GB2 | 0.009 | 0.023 | 0.037 | 0.007 | 0.017 | 0.027 | 0.005 | 0.013 | 0.020 | 0.004 | 0.011 | 0.017 | 0.004 | 0.010 | 0.016 |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use "Light Machining" values as starting feed rate. | |||||||||||||||
| KSSM™ 12 Slotting • Recommended Starting Speed [m/min] | |||||||||||||||||||||||||||||||
| nuance | KCPM20 | KC410M | KC522M | KC725M | KCK15 | KCPK30 | KCK20B | KCPM40 | KCSM40 | KTPK20 | |||||||||||||||||||||
| Epaisseur copeau hm mm | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | |||||||||||
| Groupe Matières | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | |
| P | 1 | 550 | 485 | 450 | – | – | – | 330 | 285 | 270 | 260 | 230 | 215 | – | – | – | 455 | 395 | 370 | – | – | – | 295 | 260 | 245 | 350 | 320 | 300 | 365 | 300 | 255 |
| 2 | 340 | 310 | 275 | – | – | – | 275 | 240 | 200 | 220 | 190 | 160 | – | – | – | 280 | 255 | 230 | – | – | – | 250 | 215 | 180 | 300 | 270 | 220 | 265 | 220 | 200 | |
| 3 | 310 | 275 | 255 | – | – | – | 255 | 215 | 175 | 200 | 170 | 140 | – | – | – | 255 | 230 | 205 | – | – | – | 230 | 195 | 160 | 280 | 240 | 195 | 245 | 200 | 180 | |
| 4 | 230 | 215 | 190 | – | – | – | 225 | 185 | 150 | 180 | 150 | 120 | – | – | – | 225 | 185 | 160 | – | – | – | 205 | 170 | 135 | 240 | 205 | 165 | 210 | 180 | 160 | |
| 5 | 275 | 250 | 230 | – | – | – | 185 | 170 | 150 | 150 | 135 | 120 | – | – | – | 190 | 170 | 150 | – | – | – | 170 | 155 | 135 | 200 | 180 | 160 | 185 | 170 | 150 | |
| 6 | 190 | 170 | 145 | – | – | – | 165 | 125 | 100 | 130 | 100 | 80 | – | – | – | 160 | 135 | 110 | – | – | – | 150 | 115 | 90 | 180 | 140 | 100 | 160 | 130 | 100 | |
| M | 1 | 225 | 200 | 175 | – | – | – | 205 | 180 | 165 | 170 | 150 | 135 | – | – | – | 205 | 185 | 155 | – | – | – | 195 | 170 | 155 | 260 | 210 | 185 | 240 | 195 | 165 |
| 2 | 205 | 175 | 160 | – | – | – | 185 | 160 | 130 | 155 | 130 | 110 | – | – | – | 185 | 160 | 140 | – | – | – | 175 | 150 | 125 | 235 | 180 | 145 | 215 | 185 | 150 | |
| 3 | 160 | 145 | 125 | – | – | – | 140 | 120 | 95 | 115 | 100 | 80 | – | – | – | 145 | 130 | 115 | – | – | – | 130 | 115 | 90 | 175 | 145 | 110 | 160 | 135 | 110 | |
| K | 1 | 360 | 325 | 295 | – | – | – | 230 | 205 | 185 | – | – | – | 420 | 385 | 340 | 295 | 265 | 240 | 360 | 290 | 245 | – | – | – | – | – | – | 230 | 195 | 160 |
| 2 | 285 | 255 | 235 | – | – | – | 180 | 160 | 150 | – | – | – | 335 | 295 | 275 | 235 | 210 | 190 | 280 | 230 | 195 | – | – | – | – | – | – | 185 | 150 | 130 | |
| 3 | 240 | 215 | 200 | – | – | – | 150 | 135 | 120 | – | – | – | 280 | 250 | 230 | 195 | 175 | 160 | 210 | 175 | 140 | – | – | – | – | – | – | 150 | 130 | 105 | |
| N | 1 | – | – | – | 1215 | 1080 | 995 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | 1080 | 995 | 915 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | 1080 | 995 | 915 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | 40 | 35 | 30 | 50 | 40 | 25 | – | – | – |
| 2 | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | 40 | 35 | 30 | 55 | 40 | 25 | – | – | – | |
| 3 | – | – | – | – | – | – | 50 | 40 | 25 | 45 | 35 | 25 | – | – | – | – | – | – | – | – | – | 50 | 40 | 30 | 65 | 45 | 30 | – | – | – | |
| 4 | – | – | – | – | – | – | 50 | 45 | 35 | 50 | 45 | 30 | – | – | – | 50 | 45 | 35 | – | – | – | 55 | 50 | 35 | 75 | 60 | 40 | – | – | – | |
| H | 1 | – | – | – | – | – | – | 120 | 90 | 70 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Recommended Starting Speed are pointing to 90° Shoulder Milling . Starting Speed for Face and Copy Milling can be Increased by 20 %. As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining. | |||||||||||||||||||||||||||||||
| KSSM™ 12 Slotting • Recommended Starting Speed [SFM] | |||||||||||||||||||||||||||||||
| nuance | KCPM20 | KC410M | KC522M | KC725M | KCK15 | KCPK30 | KCK20B | KCPM40 | KCSM40 | KTPK20 | |||||||||||||||||||||
| Epaisseur copeau hm mm | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | Mini | Maxi | |||||||||||
| Groupe Matières | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | Maxi | Départ | Mini | |
| P | 1 | 550 | 485 | 450 | – | – | – | 1085 | 935 | 885 | 855 | 755 | 705 | – | – | – | 1495 | 1295 | 1215 | – | – | – | 970 | 855 | 805 | 1150 | 1050 | 985 | 1200 | 985 | 835 |
| 2 | 340 | 310 | 275 | – | – | – | 900 | 785 | 655 | 720 | 625 | 525 | – | – | – | 920 | 835 | 755 | – | – | – | 820 | 705 | 590 | 985 | 885 | 720 | 870 | 720 | 655 | |
| 3 | 310 | 275 | 255 | – | – | – | 835 | 705 | 575 | 655 | 560 | 460 | – | – | – | 835 | 755 | 675 | – | – | – | 755 | 640 | 525 | 920 | 785 | 640 | 805 | 655 | 590 | |
| 4 | 230 | 215 | 190 | – | – | – | 740 | 605 | 490 | 590 | 490 | 395 | – | – | – | 740 | 605 | 525 | – | – | – | 675 | 560 | 445 | 785 | 675 | 540 | 690 | 590 | 525 | |
| 5 | 275 | 250 | 230 | – | – | – | 605 | 560 | 490 | 490 | 445 | 395 | – | – | – | 625 | 560 | 490 | – | – | – | 560 | 510 | 445 | 655 | 590 | 525 | 605 | 560 | 490 | |
| 6 | 190 | 170 | 145 | – | – | – | 540 | 410 | 330 | 425 | 330 | 260 | – | – | – | 525 | 445 | 360 | – | – | – | 490 | 375 | 295 | 590 | 460 | 330 | 525 | 425 | 330 | |
| M | 1 | 225 | 200 | 175 | – | – | – | 675 | 590 | 540 | 560 | 490 | 445 | – | – | – | 675 | 605 | 510 | – | – | – | 640 | 560 | 510 | 855 | 690 | 605 | 785 | 640 | 540 |
| 2 | 205 | 175 | 160 | – | – | – | 605 | 525 | 425 | 510 | 425 | 360 | – | – | – | 605 | 525 | 460 | – | – | – | 575 | 490 | 410 | 770 | 590 | 475 | 705 | 605 | 490 | |
| 3 | 160 | 145 | 125 | – | – | – | 460 | 395 | 310 | 375 | 330 | 260 | – | – | – | 475 | 425 | 375 | – | – | – | 425 | 375 | 295 | 575 | 475 | 360 | 525 | 445 | 360 | |
| K | 1 | 360 | 325 | 295 | – | – | – | 755 | 675 | 605 | – | – | – | 1380 | 1265 | 1115 | 970 | 870 | 785 | 1180 | 950 | 805 | – | – | – | – | – | – | 755 | 640 | 525 |
| 2 | 285 | 255 | 235 | – | – | – | 590 | 525 | 490 | – | – | – | 1100 | 970 | 900 | 770 | 690 | 625 | 920 | 755 | 640 | – | – | – | – | – | – | 605 | 490 | 425 | |
| 3 | 240 | 215 | 200 | – | – | – | 490 | 445 | 395 | – | – | – | 920 | 820 | 755 | 640 | 575 | 525 | 690 | 575 | 460 | – | – | – | – | – | – | 490 | 425 | 345 | |
| N | 1 | – | – | – | 3985 | 3545 | 3265 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | 3545 | 3265 | 3000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | 3545 | 3265 | 3000 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 130 | 115 | 80 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | 130 | 115 | 100 | 165 | 130 | 80 | – | – | – |
| 2 | – | – | – | – | – | – | 130 | 115 | 80 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | 130 | 115 | 100 | 180 | 130 | 80 | – | – | – | |
| 3 | – | – | – | – | – | – | 165 | 130 | 80 | 150 | 115 | 80 | – | – | – | – | – | – | – | – | – | 165 | 130 | 100 | 215 | 150 | 100 | – | – | – | |
| 4 | – | – | – | – | – | – | 165 | 150 | 115 | 165 | 150 | 100 | – | – | – | 165 | 150 | 115 | – | – | – | 180 | 165 | 115 | 245 | 195 | 130 | – | – | – | |
| H | 1 | – | – | – | – | – | – | 395 | 295 | 230 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Recommended Starting Speed are pointing to 90° Shoulder Milling . Starting Speed for Face and Copy Milling can be Increased by 20 %. As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining. | |||||||||||||||||||||||||||||||
| KSSM™ 12 Slotting • Insert Selection Guide | ||||||
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| – | (géomètrie légère) | – | (géomètrie solide) | |||
| – | résistance à l’usure |  | ténacité | |||
| – | Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance |
| P1-P2 | .E..LD2 | KCPM40 | .E..GB2 | KCPM40 | .S..GB2 | KCPM40 |
| P3-P4 | .E..LD2 | KCPM40 | .E..GB2 | KCPK30 | .S..GB2 | KCPK30 |
| P5-P6 | .E..LD2 | KC725M | .E..GB2 | KC725M | .S..GB2 | KC725M |
| M1-M2 | .E..LD2 | KCSM40 | .E..GB2 | KCSM40 | .S..GB2 | KCSM40 |
| M3 | .E..LD2 | KCPM40 | .E..GB2 | KCPM40 | .S..GB2 | KCPM40 |
| K1-K2 | .E..LD2 | KCK20B | .E..GB2 | KCK15 | .S..GB2 | KCK15 |
| K3 | .E..LD2 | KCK20B | .E..GB2 | KCK20B | .S..GB2 | KCK20B |
| N1-N2 | .F..LE | KC410M | .F..LE | KC410M | .F..LE | KC410M |
| N3 | .F..LE | KC410M | .F..LE | KC410M | .F..LE | KC410M |
| S1-S2 | .E..LD2 | KC725M | .E..GB2 | KC725M | .S..GB2 | KC725M |
| S3 | .E..LD2 | KCSM40 | .E..GB2 | KCSM40 | .S..GB2 | KCSM40 |
| S4 | .E..LD2 | KCSM40 | .E..GB2 | KCSM40 | .S..GB2 | KCSM40 |
| H1 | – | – | – | – | – | – |
