| Material Number | 1114965 |
| ISO Catalog ID | NRD3062L |
| ANSI Catalog ID | NRD3062L |
| Grade | KC850 |
| Insert Size | 3 |

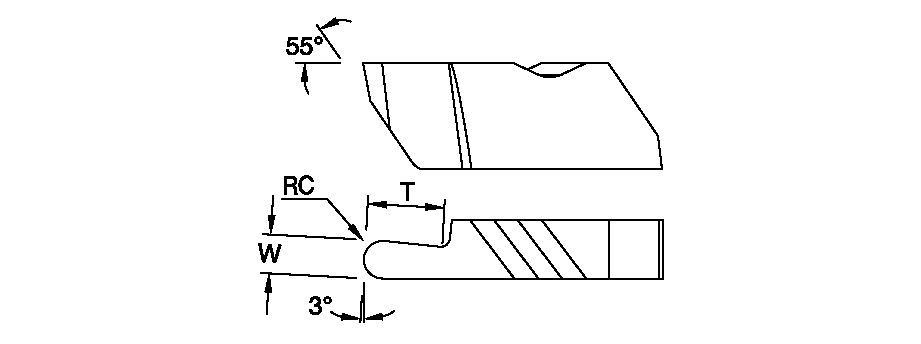

| [W] Cutting Width | 3.17 mm |
| [W] Cutting Width | 0.125 in |
| [RC] Corner Radius Center | 1.575 mm |
| [RC] Corner Radius Center | 0.062 in |
| [T] Cuttg Depth | 6.35 mm |
| [T] Cutting Depth | 0.25 in |
Grades
KC850
composition: A CVD tri-phase coating on an extra-strong, cobalt-enriched
alloyed substrate.
application: Designed for heavy cutting of low-, medium-, and high-carbon
steels, medium hardness alloy and tool steels, stainless steels, and some
high-temperature alloys. Excellent thermal and mechanical shock resistance
makes grade KC850 ideally suited for difficult drilling applications.
Used in inserts for Kendex/Metcut drill bodies.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
