模块化立铣刀

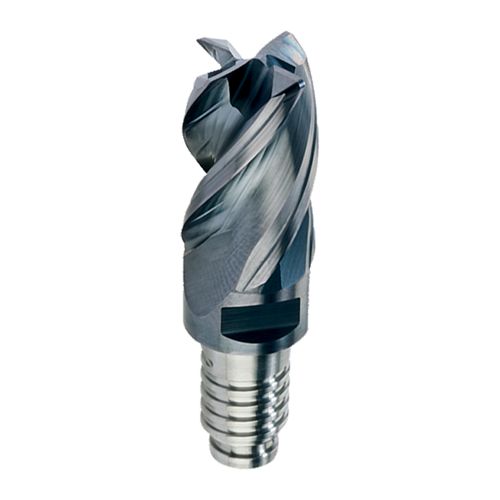

唯一具有整体硬质合金立铣刀性能的模块化刀柄系统

Duo-Lock™ 是一款具有创新性的，用于整体硬质合金立铣刀应用的接口装置。这款可换式刀头设计产品将卓越的跳动精度性能和长度方面的高重复定位精度结合在一起，具有极佳的稳定性和精度性能，是一款性能无可比拟的接口产品。

为了将 Duo-Lock™ 与主轴完美地配合在一起，完美提供多种型号和类型的接头和延长杆。

  • 标准长度的 Safe-Lock™ 延长杆，有圆柱柄和圆锥柄类型。
  • 定制尺寸的延长杆，有圆柱柄和圆锥柄。
  • 整体式接头，有 HSK、PSC、CV 和 BT 接口类型。

所有产品均为 First Choice 计划的组成部分。

易于选择，易于订购，易于应用，卓越性能。 进一步了解 First Choice。

Duo-Lock Features

根据客户要求可提供中间直径的非标产品。

刀具修磨确保实现最长刀具寿命和最佳的投资效益。

提供多种粗加工、精加工、仿形加工和倒角加工刀具，还提供毛坯产品。可满足所有立铣加工应用需求。

双锥面设计可以确保 0.0004"(10μm) 的轴向重复定位精度，因此可避免昂贵的预设过程。刀尖角的长度重复定位精度在 0.002"（50μm）以内。

智能螺纹可确保应力级别保持在临界值以下，可提高> 25% 的扭矩传输性能。

三个接触面确保极佳的刚性和精度，跳动量小于 0.0002" (5μm)。

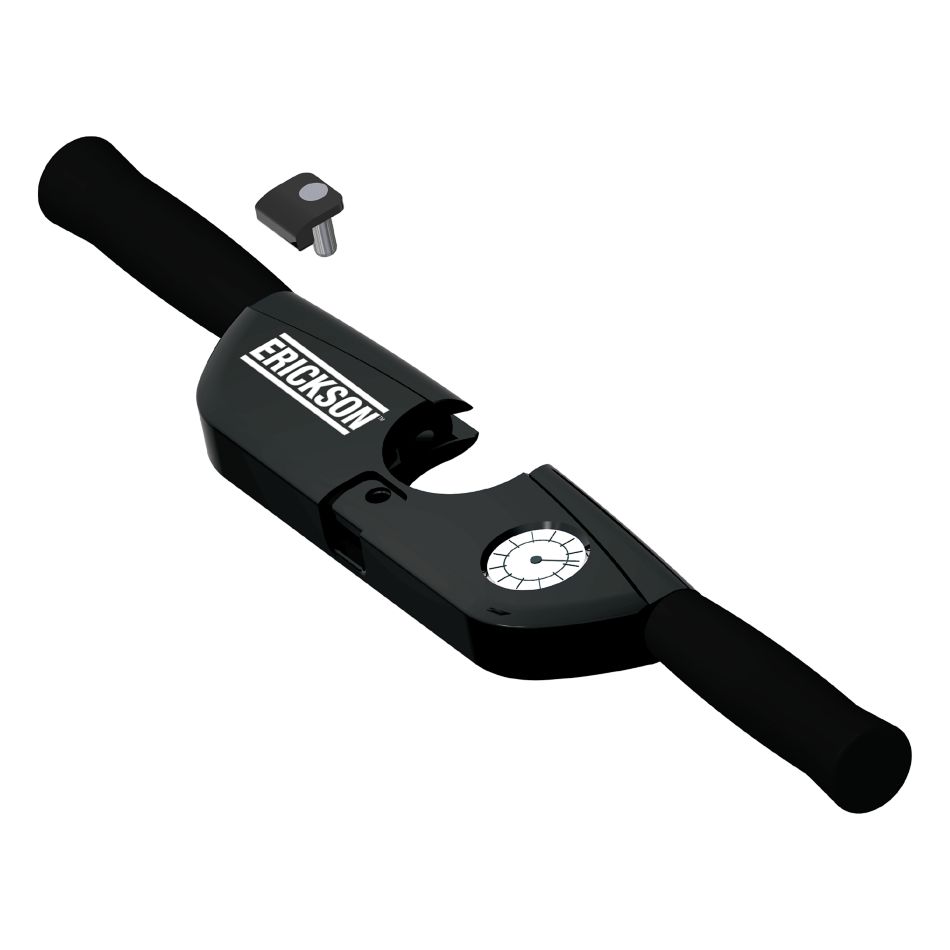

使用 Duo-Lock™ 扳手可简单快速更换刀片。

New Icon Test

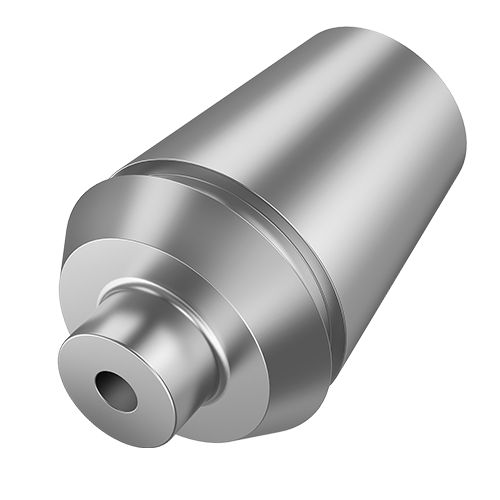

Solid ER Collets for Duo-Lock

  • Adapting Duo-Lock Modular End Mills to CNC Lathes
  • Duo-Lock solid ER collets turn CNC lathe machines into multitasking machines by providing access of any Duo-Lock modular end mills to ER driven units.
  • These new Duo-Lock solid ER collets maximize machine flexibility through a broad range of
    Duo-Lock modular end mills. From high-performance versatile tools, to roughers and finishers,
    as well as chamfering and corner rounding tools.
  • The short projection from the face of the collet nut provides rigid toolholding and requires a small machine envelope.
  • Compatible with all standard ER collet chucks and ER driven units.
