Face Milling
Milling - Side and FaceDownloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 1724378 |
| ISO Catalog ID | 50A05RP70SP12CUFP |
| ANSI Catalog ID | 50A05RP70SP12CUFP |

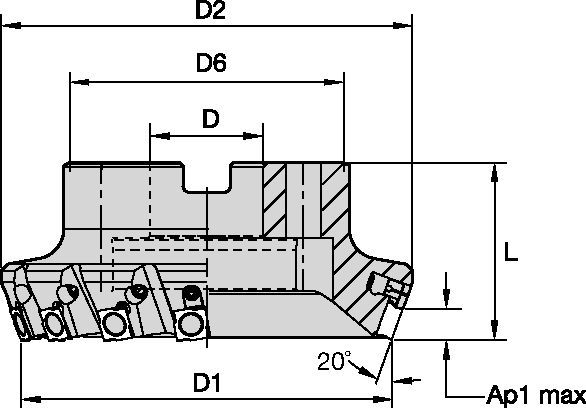

| [D1] Effective Cutting Diameter | 50.8 mm |
| [D1] Effective Cutting Diameter | 2 in |
| [D] Adapter / Shank / Bore Diameter | 19.05 mm |
| [D] Adapter / Shank / Bore Diameter | 0.75 in |
| [D2] Maximum Body Diameter | 63.6 mm |
| [D2] Maximum Body Diameter | 2.5039 in |
| [D6] Hub Diameter | 44.45 mm |
| [D6] Hub Diameter | 1.75 in |
| [L] Overall Length | 44.45 mm |
| [L] Overall Length | 1.75 in |
| [AP1MAX] 1st Maximum Cutting Depth | 5.89 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 0.232 in |
| Number of Inserts | 5 |
| Number of Adjustable Inserts | 0 |
| Weight Pounds | 1.19 |
| Max RPM | 8595 |
Face MillingMilling - Side and FaceCreate Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..GP | .006 | .020 | .038 | .004 | .014 | .027 | .003 | .011 | .020 | .003 | .009 | .018 | .002 | .009 | .016 | .E..GP |
| .T..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .T..GP |
| .S..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .S..GP |
| Light | General | Heavy |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..GP | .005 | .020 | .035 | .004 | .014 | .025 | .003 | .011 | .019 | .002 | .009 | .016 | .002 | .009 | .015 | .E..GP |
| .S..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .S..GP |
| Light | General | Heavy |
| Material Group | KB1340 | KC520M | KCK15 | KTPK20 | KCPK30 | KY3500 | |||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 5400 | 3600 | 1920 | 1060 | 960 | 850 | 1660 | 1510 | 1340 | 910 | 770 | 640 | 1160 | 1050 | 940 | 3170 | 2880 | 2560 |
| 2 | – | – | – | 830 | 740 | 700 | 1310 | 1170 | 1090 | 720 | 590 | 520 | 920 | 830 | 760 | 2510 | 2240 | 2090 | |
| 3 | – | – | – | 700 | 620 | 560 | 1100 | 980 | 900 | 600 | 500 | 420 | 770 | 690 | 640 | 2110 | 1870 | 1720 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Material Group | K110M | KC520M | KCK15 | KTPK20 | KCPK30 | KY3500 | |||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 510 | 480 | 450 | 1060 | 960 | 850 | 1660 | 1510 | 1340 | 910 | 770 | 640 | 1160 | 1050 | 940 | 3170 | 2880 | 2560 |
| 2 | 450 | 420 | 390 | 830 | 740 | 700 | 1310 | 1170 | 1090 | 720 | 590 | 520 | 920 | 830 | 760 | 2510 | 2240 | 2090 | |
| 3 | 400 | 350 | 310 | 700 | 620 | 560 | 1100 | 980 | 900 | 600 | 500 | 420 | 770 | 690 | 640 | 2110 | 1870 | 1720 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Material Group | Light | General | Heavy | |||
| – | (Light geometry) | (Strong geometry) | ||||
| – | wear |  | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..GP | KC520M | .E..GP | KCK15 | .S..GP | KCK15 |
| K3 | .E..GP | KC520M | .E..GP | KCK15 | .S..GP | KCK15 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
| Material Group | Light | General | Heavy | |||
| – | (Light geometry) | (Strong geometry) | ||||
| – | wear | | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..GP | KCK15 | .E..GP | KCK15 | .E..GP | KCK15 |
| K3 | .E..GP | KCK15 | .E..GP | KCK15 | .S..GP | KCPK30 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
