41mm (1" x 1-5/8") Shank

41mm Series

Metrické
Palcové
SAP Material Number 5676603
ISO Catalog Number AM276MB-MOD
ANSI Catalog Number AM276MB-MOD
Grade WA273B

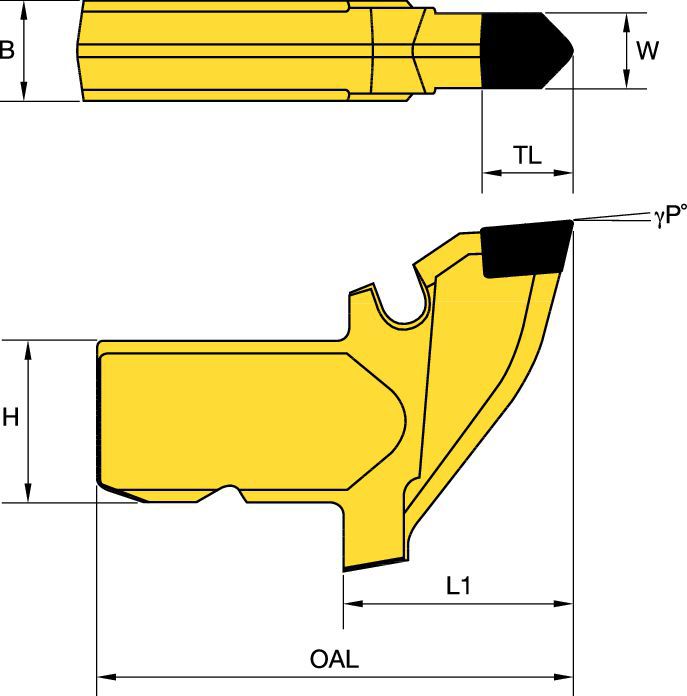

[B] Shank Width 25.4 mm
[B] Shank Width 1 in
[L1] Gage Length 59.69 mm
[L1] Gage Length 2.35 in
[TL] Tip Length 22.098 mm
[TL] Tip Length .87 in
[W] Overall Width 19.05 mm
[W] Overall Width .75 in
Axial Rake Angle [GAMMAP] 5
[OAL] Overall Length 129.794 mm
[OAL] Overall Length 5.11 in
Zobrazit všechny varianty produktů
