Coolant - Through Coolant

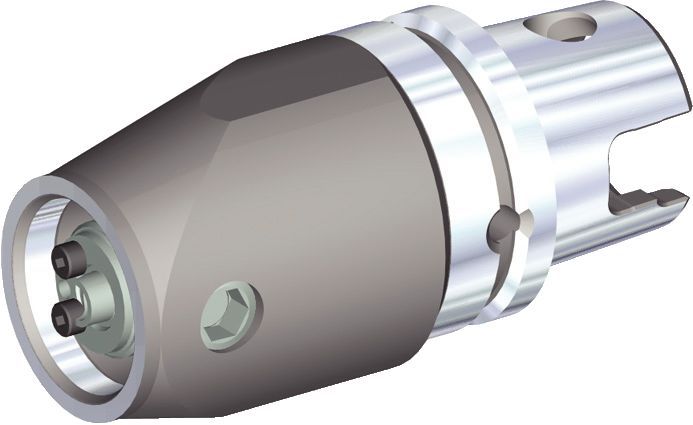

Shank - KM-XMZ
Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) MaximumDownloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1021470 |
| ISO katalogové ID | KM63XMZES50115 |
| ANSI katalogové ID | KM63XMZES50115 |
| [CSWS] System Size Workpiece Side | KM50 |
| [D2] Body Diameter 1 Workpiece Side | 50 mm |
| [D2] Body Diameter 1 Workpiece Side | 1.968 in |
| [L1] Gage Length | 115.1 mm |
| [L1] Gage Length | 4.531 in |
| [F] F Dimension | 17 mm |
| [F] F Dimension | .6693 in |
| Actuation Screw ID Drive Size | 10 mm |
| Torque Catalog Newton Meters | 27-34 |
| Torque Catalog Foot Pounds | 20-25 |
| Weight Kilograms | 2.71 |
| Weight Pounds | 5.98 |
Coolant - Through CoolantShank - KM-XMZCoolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) MaximumVytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
