Tapping: Blind Hole
HSS
Chamfer Form C (2–3)
Flood Coolant: Tapping
Manufacturer’s Specs: UNF
Manufacturer’s Specs: UNC
Manufacturer’s Specs: ANSIDownloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1543620 |
| ISO katalogové ID | KHSST10117 |
| ANSI katalogové ID | KHSST10117 |
| Coating | Uncoated |

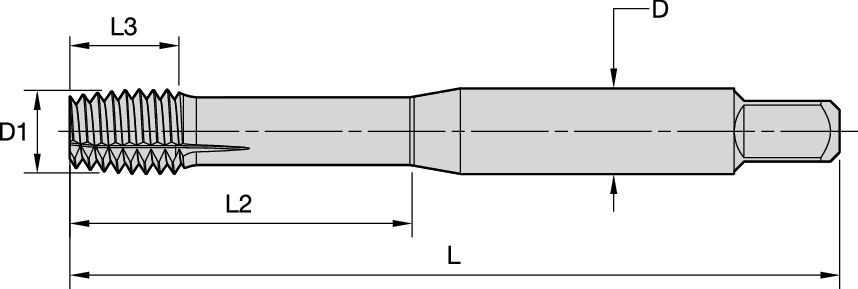

| [D1-TDZ] Thread Diameter Size | 1/2 - 13 |
| [L] Overall Length | 85.852 mm |
| [L] Overall Length | 3.38 in |
| [L3] Thread Length | 23.813 mm |
| [L3] Thread Length | 0.9375 in |
| [D] Adapter / Shank / Bore Diameter | 9.322 mm |
| [D] Adapter / Shank / Bore Diameter | 0.367 in |
| [Z] Number of Flutes | 4 |
| Number of Lube Grooves | 4 |
| Tap Pitch Diameter Limit | H8 |
| Type of Thread | NC/UNC/UNJC |
Tapping: Blind HoleHSSChamfer Form C (2–3)Flood Coolant: TappingManufacturer’s Specs: UNFManufacturer’s Specs: UNCManufacturer’s Specs: ANSIVytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
