Schulterfräsen mit einseitigen Wendeschneidplatten, die echte 90°-Schultern erzeugen.

Spezielles Design der Wendeschneidplatte und des Fräsers ermöglichen Schrägeintauchen. Niedrige Schnittkräfte durch weichen Schnitt.

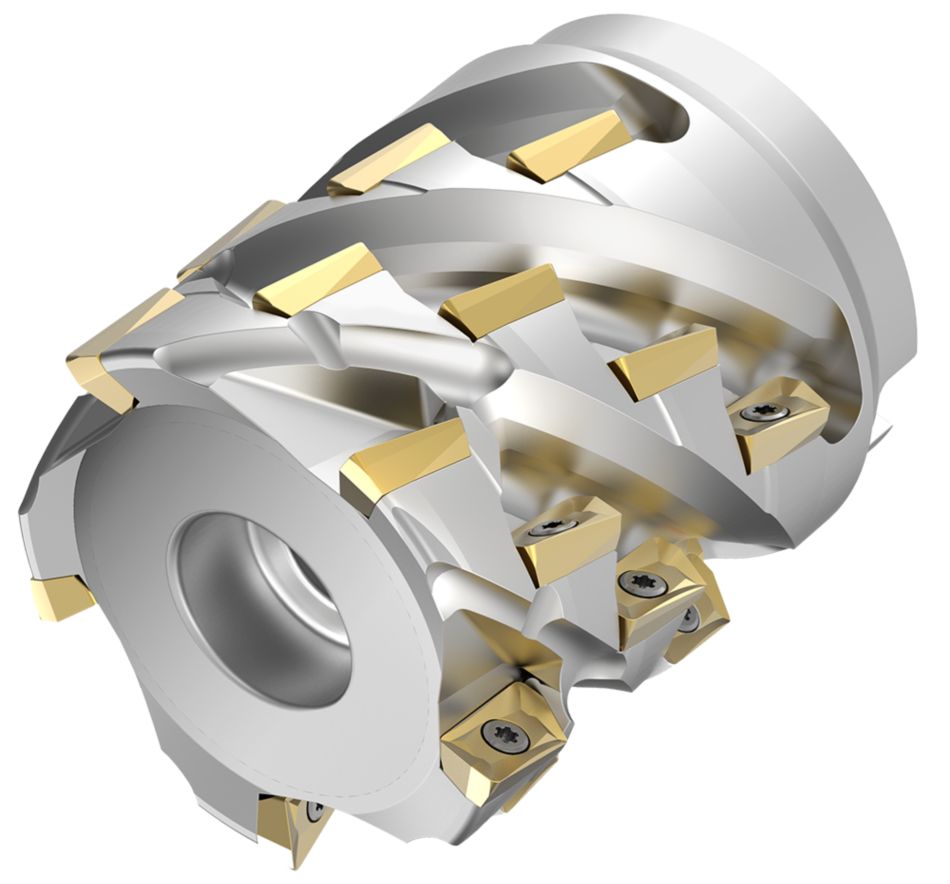

Mill 1-10™ Walzenstirnfräser

Mill 1-10™ Walzenstirnfräser

Weitere Informationen
Mill 1-14™ Walzenstirnfräser

Mill 1-14™ Walzenstirnfräser

Weitere Informationen

Mill 1-7

Schnitttiefe bis zu 7 mm (0,276 Zoll).

Mill 1-10

Schnitttiefe bis zu 10 mm (0,393 Zoll).
Bis zu 45 mm (1,764 Zoll) Schnitttiefe beim Einsatz von Walzenstirnfräsern.

Mill 1-14

Schnitttiefe bis zu 14 mm (0,551 Zoll).
Bis zu 53 mm (2,104 Zoll) Schnitttiefe beim Einsatz von Walzenstirnfräsern.
Walzenstirnfräser mit LOIS-Technologie um Vibrationen zu minimieren.

Mill 1-18

Schnitttiefe bis zu 18 mm (0,708 Zoll).

Teil des First Choice Programms.

Einfache Auswahl, einfache Bestellung, einfache Anwendung, exzellente Leistung. Erfahren Sie mehr zu First Choice.
