    KenCut™ CF • CDDC • Chamfered • 6 Flutes • Plain Shank • Inch

    Solid Carbide End Mill for CFRP

    Material Number4137722

    ISO Catalog IDCDDC0375J6BHANSI Catalog IDCDDC0375J6BH

    CDDC 6FL CH SS IN Milling - 4137722 - Kennametal
    CDDC 6FL CH SS IN Milling - 4137722 - Kennametal
    CDDC 6FL CH SS IN Milling - 4137722 - Kennametal
    Open expanded view
    CDDC 6FL CH SS IN Milling - 4137722 - Kennametal
    CDDC 6FL CH SS IN Milling - 4137722 - Kennametal
    Generic representation
    List Price
    $696.33/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Ramping: BlankRamping: Blank
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Tool Dimensions: Flute Configuration: 6Tool Dimensions: Flute Configuration: 6
    • Helix Angle: 25°Helix Angle: 25°
    • Corner Style: Corner ChamferCorner Style: Corner Chamfer
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

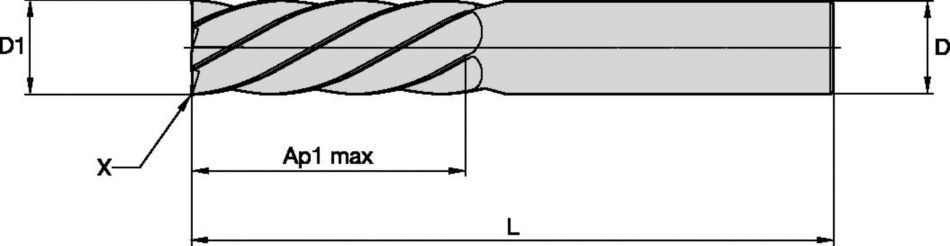

    Drawings for 4137722
    Metric
    Inch
    Material Number4137722
    ISO Catalog IDCDDC0375J6BH
    ANSI Catalog IDCDDC0375J6BH
    GradeKCN05
    Adapter Style Machine SideStraight-Cylindrical
    [BCH] Corner Chamfer Width 0.254 mm
    [BCH] Corner Chamfer Width 0.01 in
    [Z] Number of Flutes6
    [D1] Effective Cutting Diameter9.525 mm
    [D1] Effective Cutting Diameter0.375 in
    [D] Adapter / Shank / Bore Diameter9.525 mm
    [D] Adapter / Shank / Bore Diameter0.375 in
    [AP1MAX] 1st Maximum Cutting Depth38.1 mm
    [AP1MAX] 1st Maximum Cutting Depth1.5 in
    [L] Overall Length 101.6 mm
    [L] Overall Length 4 in
    See all Product Variants

    Uses and application

    • Ramping: BlankRamping: Blank
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Tool Dimensions: Flute Configuration: 6Tool Dimensions: Flute Configuration: 6
    • Helix Angle: 25°Helix Angle: 25°
    • Corner Style: Corner ChamferCorner Style: Corner Chamfer

    Grades

    KCN05

    KCN05

    High-performance grade A pure, diamond-coated carbide for milling CFRP and graphite. It is a very tough and wear-resistant grade.

    Features and benefits

    • Solid carbide end mill for carbon fibre reinforced parts maching (CFRP).
    • Solid carbide end mill for composite and fibre glass machining.
    • Down-Cut style router for surface operations like pocketing.
    • Geometry prevents delamination.

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    Tolerance

    End Mill Tolerances
    D1toleranceDtolerance h6 + / -
    All+.000/- .003"≤1/8"+0/-.00024"
    1/8 1/4"+0/-.00031"
    1/4 3/8"+0/-.00035"
    3/8 23/32"+0/-.00043"
    23/32 1 3/16"+0/-.00051"
