| Material Number | 7188939 |
| ISO Catalog ID | A12DMBSDBS8I |
| ANSI Catalog ID | A12DMBSDBS8I |
| Hand of Tool | N |

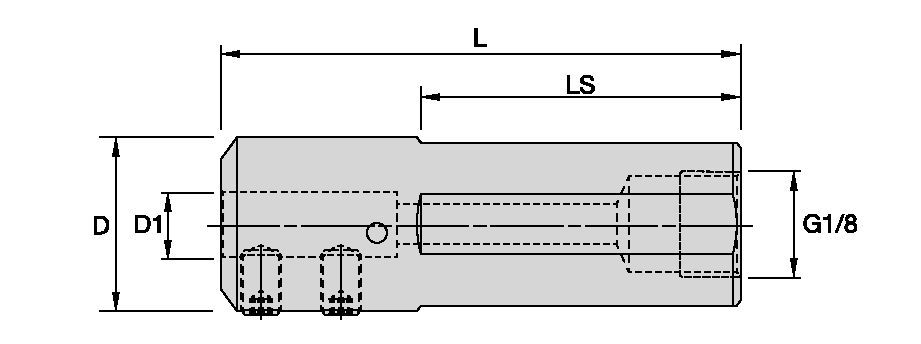

| [D] Adapter / Shank / Bore Diameter | 19.05 mm |
| [D] Adapter / Shank / Bore Diameter | 0.75 in |
| [D1] Adapter / Shank / Bore Diameter | 8 mm |
| [D1] Adapter / Shank / Bore Diameter | 0.315 in |
| [D2] Body Diameter 1 Workpiece Side | 19.05 mm |
| [D2] Body Diameter 1 Workpiece Side | 0.75 in |
| [L] Overall Length | 65 mm |
| [L] Overall Length | 2.5591 in |
| [LS] Shank Length | 40 mm |
| [LS] Shank Length | 1.5748 in |
