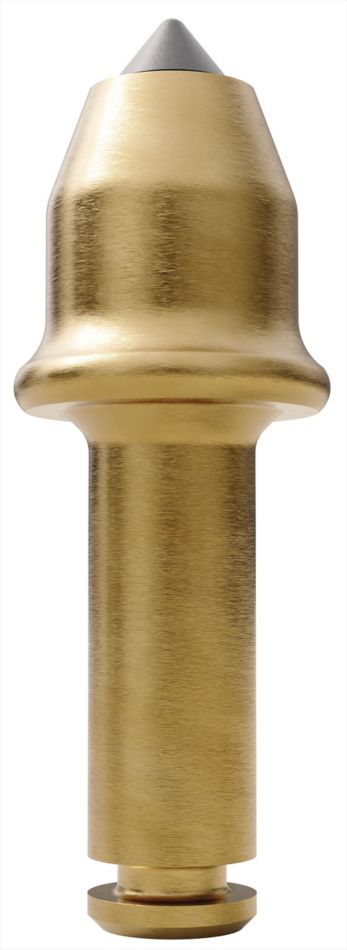

Rotating Tungsten Carbide Pick • 25mm (.99 in) Shank

External Retainer for Maximum Attachment • Plug Tip for Hard Cutting

Metric
Inch
SAP Material Number 1094018
ISO Catalog Number C35R
ANSI Catalog Number C35R
Grade K3560
Point Included Angle [SIGMA] 75
[TD] Tip Diameter 16.002 mm
[TD] Tip Diameter .63 in
[TL] Tip Length 21.466 mm
[TL] Tip Length .8451 in
[L1] Gage Length 64.74 mm
[L1] Gage Length 2.548 in
[D2] Body Diameter Workpiece Side 47.752 mm
[D2] Body Diameter Workpiece Side 1.88 in
[D] Shank/Bore Diameter 25.146 mm
[D] Shank/Bore Diameter .99 in
[LRO] Retainer Offset Length 66.04 mm
[LRO] Retainer Offset Length 2.6 in
[LS] Shank Length 76.53 mm
[LS] Shank Length 3.013 in
[OAL] Overall Length 141.27 mm
[OAL] Overall Length 5.561 in
