Rotating Tungsten Carbide Pick • 14mm (.55 in) Shank

Smooth Retainer for any Bore • Cap Tip for Abrasive Conditions

Metric
Inch
Codice materiale SAP 1876905
Codice catalogo ISO CM65
Codice catalogo ANSI CM65
Qualità K706

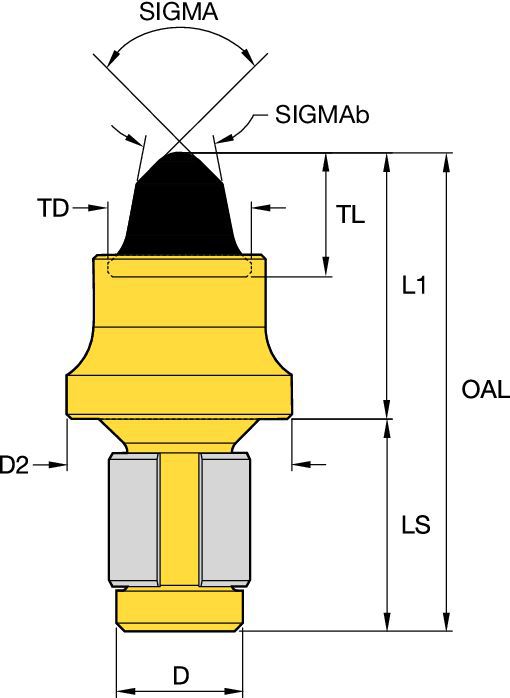

Angolo della punta [SIGMA] 90
EW_CON_POINT_INCL_ANGLE_B 22
[TD] Diametro punta 15.875 mm
[TD] Diametro punta .625 in
[TL] Lunghezza punta 13.716 mm
[TL] Lunghezza punta .54 in
[L1] Lunghezza spessore 29.464 mm
[L1] Lunghezza spessore 1.16 in
[D2] Diametro corpo - Lato pezzo 24.892 mm
[D2] Diametro corpo - Lato pezzo .98 in
[D] Diametro dello stelo/foro 13.97 mm
[D] Diametro dello stelo/foro .55 in
[LS] Lunghezza del codolo 23.495 mm
[LS] Lunghezza del codolo .925 in
[OAL] Lunghezza complessiva 52.959 mm
[OAL] Lunghezza complessiva 2.085 in
Visualizzare tutte le varianti del prodotto
