      38mm Series
      38mm Series
      38mm Series
      38mm Series

      38mm (1.50") Step Shank • Heavy

      38mm Series

      Metric
      Inch
      SAP Material Number 3343671
      ISO Catalog Number U47 19NB
      ANSI Catalog Number U47 19NB
      Grade K3560

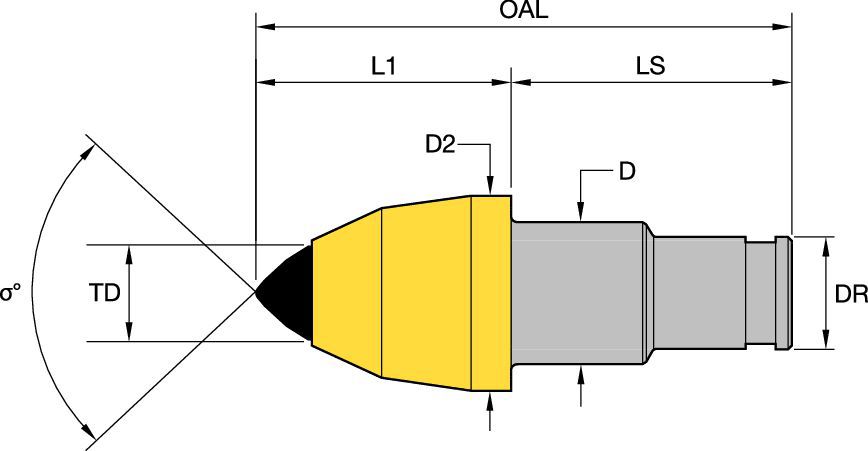

      [D] Shank/Bore Diameter 38.000
      [D] Shank/Bore Diameter 1.500
      [DR] Shank Diameter Reduced 30.000
      [DR] Shank Diameter Reduced 1.180
      [TD] Tip Diameter 18.900
      [TD] Tip Diameter .7400
      Point Included Angle [SIGMA] 100.000
      [L1] Gage Length 70.000
      [L1] Gage Length 2.760
      [D2] Body Diameter Workpiece Side 49.000
      [D2] Body Diameter Workpiece Side 1.930
      [LS] Shank Length 74.900
      [LS] Shank Length 2.950
      [OAL] Overall Length 144.900
      [OAL] Overall Length 5.710
      See all Product Variants

      Uses and application

      • Cutting Conditions: SevereCutting Conditions: Severe

      Features and benefits

      • For specific insert type, see the Product Selector on pages 23–35.

      Machine Side

      loading...

      Workpiece Side

      loading...

      Grades

      • K3560
