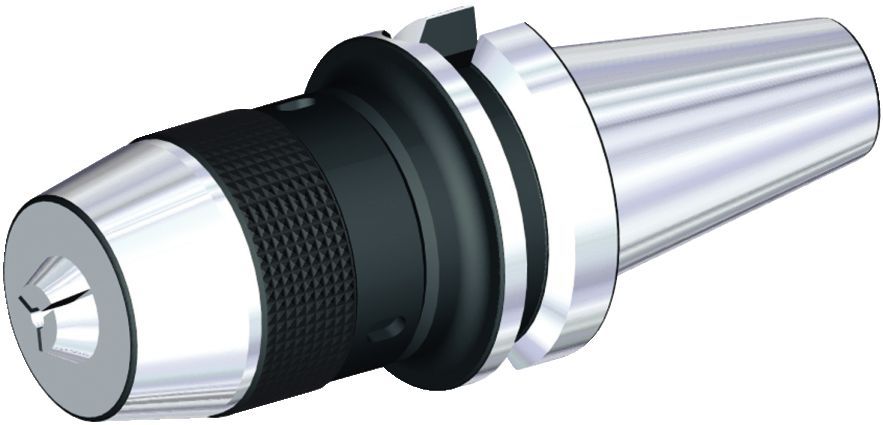

DC-BT form A
Drill Chucks
メートル
インチ
| SAP Material Number | 3583293 |
| ISO Catalog Number | BT40DC13096M |
| ANSI Catalog Number | BT40DC13096M |
| [D1] Adapter / Shank / Bore Diameter | 1.0000 mm |
| [D1] Adapter / Shank / Bore Diameter | .0394 in |
| [D1MAX] Maximum Adaptor/Bore Diameter | 13.0000 mm |
| [D1MAX] Maximum Adaptor/Bore Diameter | .5118 in |
| [D2] Body Diameter 1 Workpiece Side | 50.5000 mm |
| [D2] Body Diameter 1 Workpiece Side | 1.988 in |
| [L1] Gage Length | 108.3000 mm |
| [L1] Gage Length | 4.263 in |
| [L1S] Secondary Tool Length | 96.0000 mm |
| [L1S] Secondary Tool Length | 3.779 in |
| Torque Newton Meters | 55.000 |
| Weight Kilograms | 1.74 |
