| Material Number | 7219556 |
| ISO Catalog ID | L7GF15068C30R075 |
| ANSI Catalog ID | L7GF15068C30R075 |
| Grade | KCU25S |

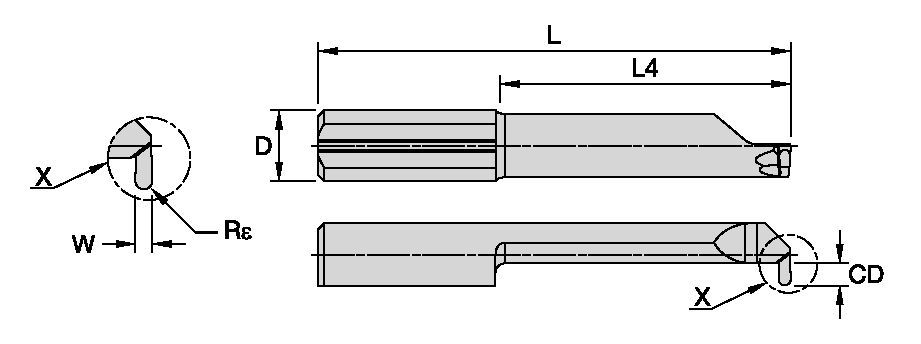

| [DM] Minimum Bore Diameter | 6.8 mm |
| [DM] Minimum Bore Diameter | 0.2677 in |
| [D] Adapter / Shank / Bore Diameter | 7 mm |
| [D] Adapter / Shank / Bore Diameter | 0.2756 in |
| [W] Groove Width | 1.5 mm |
| [W] Groove Width | 0.0591 in |
| [CD] Cutting Depth | 2.5 mm |
| [CD] Cutting Depth | 0.0984 in |
| [Rε] Corner Radius | 0.75 mm |
| [Rε] Corner Radius | 0.03 in |
| [L4] Maximum Boring Depth | 29 mm |
| [L4] Maximum Boring Depth | 1.1417 in |
| [L] Overall Length | 45 mm |
| [L] Overall Length | 1.7717 in |
