Product Similar To:

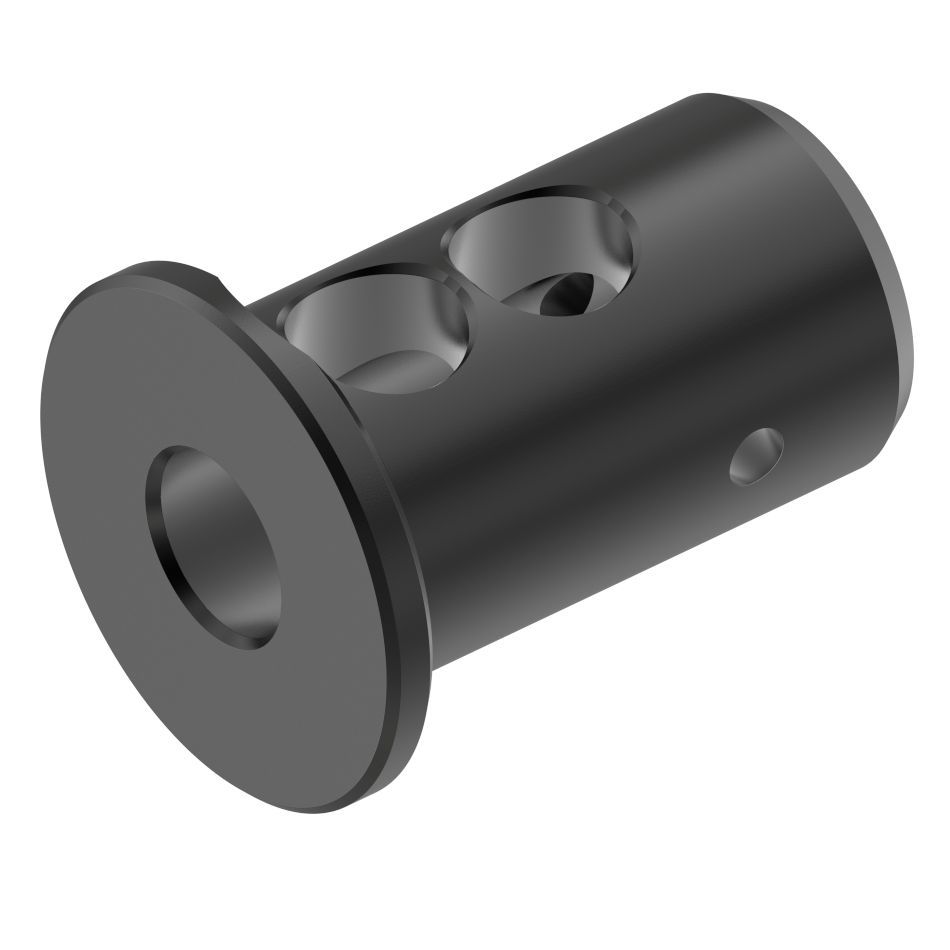

TopSwiss MBS™ • Tool holder PSC40 • Single End • Bushing Style Standard Performance
Micro Boring • Swiss-Type • Small Parts Machining
Material Number7188856
ISO Catalog IDPSC4MBSBS0ANSI Catalog IDPSC4MBSBS0
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
- Overview
- Application Data
- Downloads
- Compatible Parts Machine Side
- Compatible Parts Workpiece Side
- Spare Parts
- Reviews
- Q&A
Material Number | 7188856 |
ISO Catalog ID | PSC4MBSBS0 |
ANSI Catalog ID | PSC4MBSBS0 |

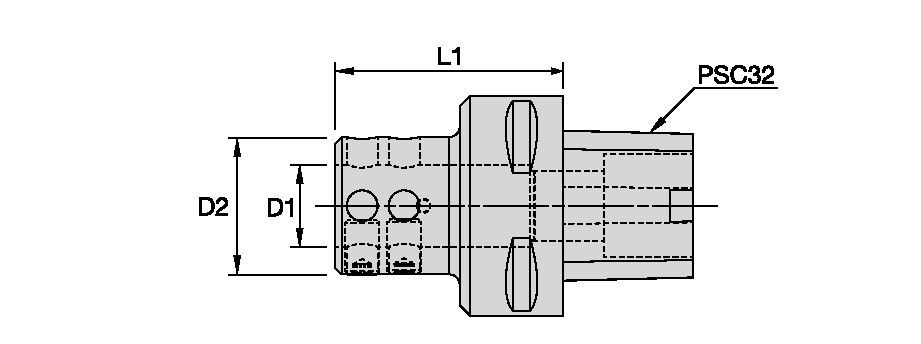

[CSMS] System Size Machine Side | PSC40 |
[D1] Adapter / Shank / Bore Diameter | 12 mm |
[D1] Adapter / Shank / Bore Diameter | 0.4724 in |
[D2] Body Diameter 1 Workpiece Side | 20 mm |
[D2] Body Diameter 1 Workpiece Side | 0.7874 in |
[L1] Gage Length | 38.2 mm |
[L1] Gage Length | 1.5039 in |
[L9] Clamping Length | 28.5 mm |
[L9] Clamping Hole Length | 1.122 in |
Weight Pounds | 0.73 |
Features and benefits
- For small diameter pieces in lathe operations.
- Standard Performance.
- Centerline Accuracy of ±20 microns (±0.0008").
