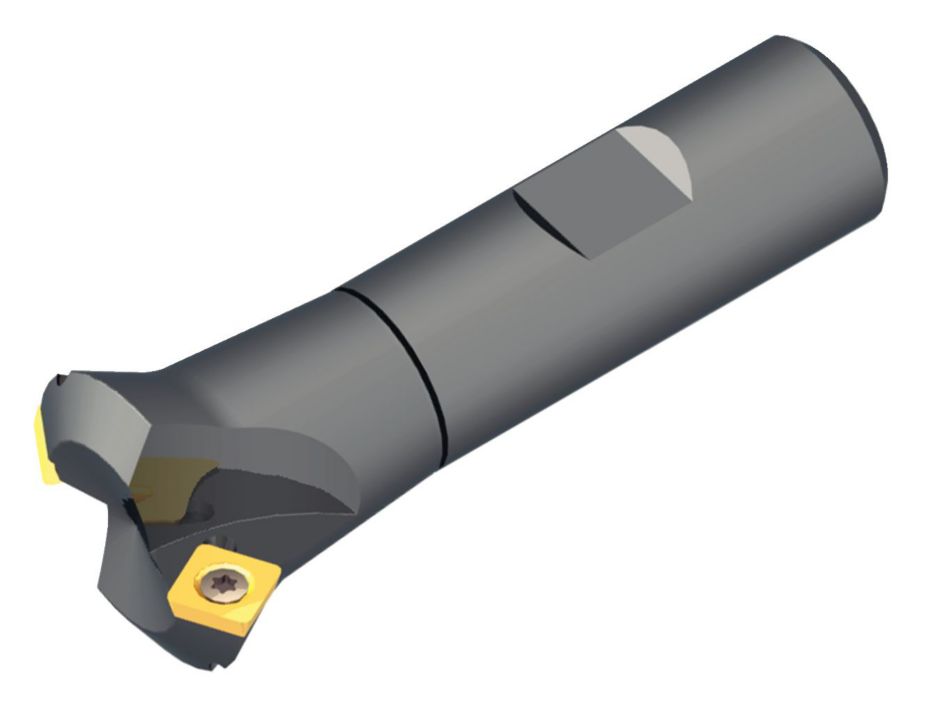

Surfaçage
Fraisage de côté/avec épaulement : Léger chanfrein
Queue — Cylindrique WeldonDownloaded file will be available after import in the {{cadTool}} tool library.
| Numéro de matériel | 1023681 |
| Ref. ISO Catalogue | KIPR046SD2660 |
| Ref. ANSI Catalogue | KIPR046SD2660 |
| [D1] Diamètre effectif de coupe | 11.684 mm |
| [D1] Diamètre effectif de coupe | 0.46 in |
| [D1MAX] Diamètre de coupe maximal | 24.89 mm |
| [D1MAX] Diamètre de coupe maximal | 0.981 in |
| [D] Adaptateur / Queue / Diamètre d’alésage | 12.7 mm |
| [D] Adaptateur / Queue / Diamètre d’alésage | 0.5 in |
| [L] Longueur totale | 76.2 mm |
| [L] Longueur totale | 3 in |
| [AP1MAX] 1re profondeur de coupe maximale | 3.46 mm |
| [AP1MAX] 1re profondeur de coupe maximale | 0.136 in |
| Nombre de plaquettes | 1 |
| T/Min max | 11000 |
| Plaquette étalon | SDEB2.61.52 |
SurfaçageFraisage de côté/avec épaulement : Léger chanfreinQueue — Cylindrique WeldonCréez une Solution pour calculer les avances et vitesses
Après avoir créé une Solution, choisissez simplement l'icône "Avances et Vitesses" et notre système vous fournira ses recommandations. Vous pouvez les personnaliser en ajoutant votre machine et vos spécifications techniques, ou en ajustant votre demande à l'aide des curseurs.
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | Géométrie de plaquette | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| SDEB | .004 | .015 | .030 | .003 | .011 | .022 | .003 | .009 | .019 | .003 | .009 | .018 | .002 | .009 | .017 | SDEB |
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | Géométrie de plaquette | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| SDEB | .005 | .018 | .037 | .004 | .013 | .027 | .003 | .012 | .023 | .003 | .011 | .022 | .003 | .011 | .021 | SDEB |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | Géométrie de plaquette | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| SEH. | .005 | .018 | .037 | .004 | .013 | .027 | .003 | .012 | .023 | .003 | .011 | .022 | .003 | .011 | .021 | SEH. |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | Géométrie de plaquette | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| SDEB | .007 | .026 | .053 | .005 | .019 | .038 | .005 | .016 | .033 | .004 | .015 | .031 | .004 | .015 | .030 | SDEB |
| Travaux légers | Applications générales | Travaux lourds |
| Groupe Matières | KC510M | KC520M | KC725M | KCK15 | KCPK30 | |||||||||||
| P | 1 | – | – | – | – | – | – | 1030 | 900 | 840 | – | – | – | 1780 | 1560 | 1450 |
| 2 | – | – | – | – | – | – | 860 | 760 | 640 | – | – | – | 1100 | 1000 | 900 | |
| 3 | – | – | – | – | – | – | 790 | 670 | 550 | – | – | – | 1000 | 900 | 820 | |
| 4 | – | – | – | – | – | – | 710 | 590 | 470 | – | – | – | 740 | 690 | 620 | |
| 5 | – | – | – | – | – | – | 590 | 530 | 470 | – | – | – | 1020 | 910 | 830 | |
| 6 | – | – | – | – | – | – | 520 | 400 | 310 | – | – | – | 620 | 540 | - | |
| M | 1 | – | – | – | – | – | – | 670 | 590 | 540 | – | – | – | 820 | 720 | 620 |
| 2 | – | – | – | – | – | – | 610 | 520 | 430 | – | – | – | 730 | 640 | 550 | |
| 3 | – | – | – | – | – | – | 460 | 400 | 310 | – | – | – | 570 | 520 | 460 | |
| K | 1 | – | – | – | 1060 | 960 | 850 | – | – | – | 1660 | 1510 | 1340 | 1160 | 1050 | 940 |
| 2 | – | – | – | 830 | 740 | 700 | – | – | – | 1310 | 1170 | 1090 | 920 | 830 | 760 | |
| 3 | – | – | – | 700 | 620 | 560 | – | – | – | 1100 | 980 | 900 | 770 | 690 | 640 | |
| N | 1–2 | 2520 | 2240 | 2060 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 2280 | 2100 | 1920 | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Groupe Matières | KC520M | KC725M | KCPK30 | |||||||
| P | 1 | – | – | – | 1030 | 900 | 840 | 1780 | 1560 | 1450 |
| 2 | – | – | – | 860 | 760 | 640 | 1100 | 1000 | 900 | |
| 3 | – | – | – | 790 | 670 | 550 | 1000 | 900 | 820 | |
| 4 | – | – | – | 710 | 590 | 470 | 740 | 690 | 620 | |
| 5 | – | – | – | 590 | 530 | 470 | 1020 | 910 | 830 | |
| 6 | – | – | – | 520 | 400 | 310 | 620 | 540 | - | |
| M | 1 | – | – | – | 670 | 590 | 540 | 820 | 720 | 620 |
| 2 | – | – | – | 610 | 520 | 430 | 730 | 640 | 550 | |
| 3 | – | – | – | 460 | 400 | 310 | 570 | 520 | 460 | |
| K | 1 | 1060 | 960 | 850 | – | – | – | 1160 | 1050 | 940 |
| 2 | 830 | 740 | 700 | – | – | – | 920 | 830 | 760 | |
| 3 | 700 | 620 | 560 | – | – | – | 770 | 690 | 640 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| – | (géomètrie légère) | (géomètrie solide) | ||||
| – | résistance à l’usure |  | ténacité | |||
| – | Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance |
| P1–P2 | SDEB | KC725M | SDEB | KC725M | SDEB | KCPK30 |
| P3–P4 | SDEB | KC725M | SDEB | KCPK30 | SDEB | KCPK30 |
| P5–P6 | SDEB | KCPK30 | SDEB | KCPK30 | SDEB | KCPK30 |
| M1–M2 | SDEB | KC725M | SDEB | KC725M | SDEB | KCPK30 |
| M3 | SDEB | KC725M | SDEB | KCPK30 | SDEB | KCPK30 |
| K1–K2 | SDEB | KC520M | SDEB | KC520M | SDEB | KCPK30 |
| K3 | SDEB | KC520M | SDEB | KCPK30 | SDEB | KCPK30 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| S3 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| S4 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| H1 | – | – | – | – | – | – |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| – | (géomètrie légère) | (géomètrie solide) | ||||
| – | résistance à l’usure | | ténacité | |||
| – | Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance |
| P1–P2 | SEHT | KC725M | SEHT | KC725M | SEHT-T | KCPK30 |
| P3–P4 | SEHT | KC725M | SEHT-T | KCPK30 | SEHT-T | KCPK30 |
| P5–P6 | SEHT-T | KCPK30 | SEHT-T | KCPK30 | SEHT-T | KCPK30 |
| M1–M2 | SEHT | KC725M | SEHT | KC725M | SEHT-T | KCPK30 |
| M3 | SEHT | KC725M | SEHT-T | KCPK30 | SEHT-T | KCPK30 |
| K1–K2 | SEHW | KC520M | SEHW | KC520M | SEHW-T | KCPK30 |
| K3 | SEHW | KC520M | SEHW-T | KCPK30 | SEHW-T | KCPK30 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | SEHT | KC725M | SEHT | KC725M | SEHT-T | KC725M |
| S3 | SEHT | KC725M | SEHT | KC725M | SEHT-T | KC725M |
| S4 | SEHT | KC725M | SEHT-T | KC725M | SEHT-T | KC725M |
| H1 | – | – | – | – | – | – |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| – | (géomètrie légère) | (géomètrie solide) | ||||
| – | résistance à l’usure | | ténacité | |||
| – | Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance |
| P1–P2 | SDEB | KC725M | SDEB | KC725M | SDEB | KCPK30 |
| P3–P4 | SDEB | KC725M | SDEB | KCPK30 | SDEB | KCPK30 |
| P5–P6 | SDEB | KCPK30 | SDEB | KCPK30 | SDEB | KCPK30 |
| M1–M2 | SDEB | KC725M | SDEB | KC725M | SDEB | KCPK30 |
| M3 | SDEB | KC725M | SDEB | KCPK30 | SDEB | KCPK30 |
| K1–K2 | SDEB | KC520M | SDEB | KC520M | SDEB | KCPK30 |
| K3 | SDEB | KC520M | SDEB | KCPK30 | SDEB | KCPK30 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| S3 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| S4 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| H1 | – | – | – | – | – | – |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| – | (géomètrie légère) | (géomètrie solide) | ||||
| – | résistance à l’usure | | ténacité | |||
| – | Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance |
| P1–P2 | SDEB | KC725M | SDEB | KC725M | SDEB | KCPK30 |
| P3–P4 | SDEB | KC725M | SDEB | KCPK30 | SDEB | KCPK30 |
| P5–P6 | SDEB | KCPK30 | SDEB | KCPK30 | SDEB | KCPK30 |
| M1–M2 | SDEB | KC725M | SDEB | KC725M | SDEB | KCPK30 |
| M3 | SDEB | KC725M | SDEB | KCPK30 | SDEB | KCPK30 |
| K1–K2 | SDEB | KC520M | SDEB | KC520M | SDEB | KCPK30 |
| K3 | SDEB | KC520M | SDEB | KCPK30 | SDEB | KCPK30 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| S3 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| S4 | SDEB | KC725M | SDEB | KC725M | SDEB | KC725M |
| H1 | – | – | – | – | – | – |
