Surfaçage
Fraisage — 3 taillesDownloaded file will be available after import in the {{cadTool}} tool library.
| Numéro de matériel | 1532255 |
| Ref. ISO Catalogue | 200C16RP70SP12C4WUFP |
| Ref. ANSI Catalogue | 200C16RP70SP12C4WUFP |

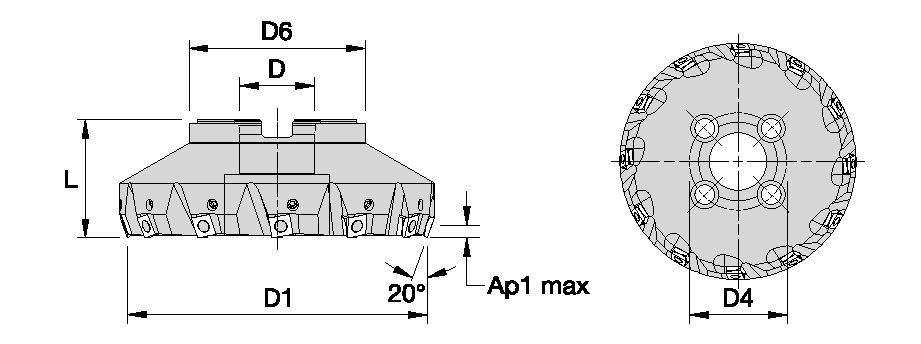

| [D1] Diamètre effectif de coupe | 203.2 mm |
| [D1] Diamètre effectif de coupe | 8 in |
| [D] Adaptateur / Queue / Diamètre d’alésage | 63.5 mm |
| [D] Adaptateur / Queue / Diamètre d’alésage | 2.5 in |
| [D2] Diamètre maximal du corps | 216 mm |
| [D2] Diamètre maximal du corps | 8.5039 in |
| [D6] Diamètre du moyeu | 130.048 mm |
| [D6] Diamètre du moyeu | 5.12 in |
| [L] Longueur totale | 60.325 mm |
| [L] Longueur totale | 2.375 in |
| [AP1MAX] 1re profondeur de coupe maximale | 5.89 mm |
| [AP1MAX] 1re profondeur de coupe maximale | 0.232 in |
| Nombre de plaquettes | 16 |
| Nombre de plaquettes réglables | 4 |
| Poids Livres | 15.03 |
| T/Min max | 2100 |
| [D4] Cercle de perçage 4 | 101.6 mm |
SurfaçageFraisage — 3 taillesCréez une Solution pour calculer les avances et vitesses
Après avoir créé une Solution, choisissez simplement l'icône "Avances et Vitesses" et notre système vous fournira ses recommandations. Vous pouvez les personnaliser en ajoutant votre machine et vos spécifications techniques, ou en ajustant votre demande à l'aide des curseurs.
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..GP | .006 | .020 | .038 | .004 | .014 | .027 | .003 | .011 | .020 | .003 | .009 | .018 | .002 | .009 | .016 | .E..GP |
| .T..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .T..GP |
| .S..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .S..GP |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent (fz) programmée en % de l'engagement radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..GP | .006 | .020 | .038 | .004 | .014 | .027 | .003 | .011 | .020 | .003 | .009 | .018 | .002 | .009 | .016 | .E..GP |
| .T..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .T..GP |
| .S..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .S..GP |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..GP | .005 | .020 | .035 | .004 | .014 | .025 | .003 | .011 | .019 | .002 | .009 | .016 | .002 | .009 | .015 | .E..GP |
| .S..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .S..GP |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent de départ recommandée (Fz) en relation avec le % de l'Engagement Radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..GP | .005 | .020 | .035 | .004 | .014 | .025 | .003 | .011 | .019 | .002 | .009 | .016 | .002 | .009 | .015 | .E..GP |
| .S..GP | .010 | .025 | .040 | .007 | .018 | .029 | .005 | .013 | .021 | .005 | .012 | .019 | .004 | .011 | .017 | .S..GP |
| Travaux légers | Applications générales | Travaux lourds |
| Groupe Matières | KB1340 | KC520M | KCK15 | KTPK20 | KCPK30 | KY3500 | |||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 5400 | 3600 | 1920 | 1060 | 960 | 850 | 1660 | 1510 | 1340 | 910 | 770 | 640 | 1160 | 1050 | 940 | 3170 | 2880 | 2560 |
| 2 | – | – | – | 830 | 740 | 700 | 1310 | 1170 | 1090 | 720 | 590 | 520 | 920 | 830 | 760 | 2510 | 2240 | 2090 | |
| 3 | – | – | – | 700 | 620 | 560 | 1100 | 980 | 900 | 600 | 500 | 420 | 770 | 690 | 640 | 2110 | 1870 | 1720 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Groupe Matières | KB1340 | KC520M | KCK15 | KTPK20 | KCPK30 | KY3500 | |||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 5400 | 3600 | 1920 | 1060 | 960 | 850 | 1660 | 1510 | 1340 | 910 | 770 | 640 | 1160 | 1050 | 940 | 3170 | 2880 | 2560 |
| 2 | – | – | – | 830 | 740 | 700 | 1310 | 1170 | 1090 | 720 | 590 | 520 | 920 | 830 | 760 | 2510 | 2240 | 2090 | |
| 3 | – | – | – | 700 | 620 | 560 | 1100 | 980 | 900 | 600 | 500 | 420 | 770 | 690 | 640 | 2110 | 1870 | 1720 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Groupe Matières | K110M | KC520M | KCK15 | KTPK20 | KCPK30 | KY3500 | |||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 510 | 480 | 450 | 1060 | 960 | 850 | 1660 | 1510 | 1340 | 910 | 770 | 640 | 1160 | 1050 | 940 | 3170 | 2880 | 2560 |
| 2 | 450 | 420 | 390 | 830 | 740 | 700 | 1310 | 1170 | 1090 | 720 | 590 | 520 | 920 | 830 | 760 | 2510 | 2240 | 2090 | |
| 3 | 400 | 350 | 310 | 700 | 620 | 560 | 1100 | 980 | 900 | 600 | 500 | 420 | 770 | 690 | 640 | 2110 | 1870 | 1720 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Groupe Matières | K110M | KC520M | KCK15 | KTPK20 | KCPK30 | KY3500 | |||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 510 | 480 | 450 | 1060 | 960 | 850 | 1660 | 1510 | 1340 | 910 | 770 | 640 | 1160 | 1050 | 940 | 3170 | 2880 | 2560 |
| 2 | 450 | 420 | 390 | 830 | 740 | 700 | 1310 | 1170 | 1090 | 720 | 590 | 520 | 920 | 830 | 760 | 2510 | 2240 | 2090 | |
| 3 | 400 | 350 | 310 | 700 | 620 | 560 | 1100 | 980 | 900 | 600 | 500 | 420 | 770 | 690 | 640 | 2110 | 1870 | 1720 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| – | (géomètrie légère) | (géomètrie solide) | ||||
| – | résistance à l’usure |  | ténacité | |||
| – | Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..GP | KC520M | .E..GP | KCK15 | .S..GP | KCK15 |
| K3 | .E..GP | KC520M | .E..GP | KCK15 | .S..GP | KCK15 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| (géomètrie légère) | (géomètrie solide) | |||||
| résistance à l’usure | | ténacité | ||||
| Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance | |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..GP | KC520M | .E..GP | KCK15 | .S..GP | KCK15 |
| K3 | .E..GP | KC520M | .E..GP | KCK15 | .S..GP | KCK15 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| – | (géomètrie légère) | (géomètrie solide) | ||||
| – | résistance à l’usure | | ténacité | |||
| – | Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..GP | KCK15 | .E..GP | KCK15 | .E..GP | KCK15 |
| K3 | .E..GP | KCK15 | .E..GP | KCK15 | .S..GP | KCPK30 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
| Groupe Matières | Travaux légers | Applications générales | Travaux lourds | |||
| (géomètrie légère) | (géomètrie solide) | |||||
| résistance à l’usure | | ténacité | ||||
| Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance | |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..GP | KCK15 | .E..GP | KCK15 | .E..GP | KCK15 |
| K3 | .E..GP | KCK15 | .E..GP | KCK15 | .S..GP | KCPK30 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
I have read and accepted the Terms & Conditions of use
CAD Drawings Models
Can’t find the file type you’re looking for?
Product data
catalogue ISO
catalogue ANSI
to find similar products.Please select a file to download
Models
. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.
Minimum quantity should be
| SAP Material Number | catalogue ISO | Grade |
|---|
You are about to leave the Solution building process.
Are you sure you want to leave?
