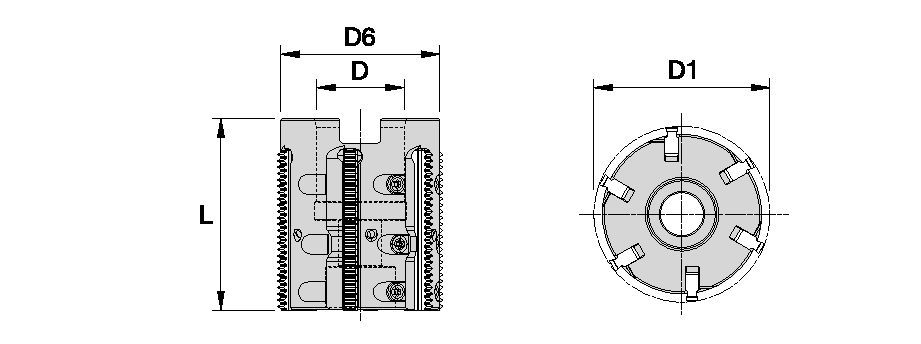

TM40 Parallel Threads • Shell Mill • Inch
TM40 • Weldon® Shank • Parallel Threads
Material Number100034430
Contact our sales team to discover all of your pricing options
Features and benefits
- Short and long toolholders for multiple applications.
- Cutters available in parallel and conical Weldon® and Shell Mill holders.
- Effective through coolant for each flute.
- Better chip evacuation.
| Thread Application per Toolholder | |||||
| min thread Ø | |||||
| toolholder | D1 | ISO (fine) | UN/UNF/UNEF/UNS | BSW | BSP(G) |
| TMS40D193L197Z7 | 1.930 | M52 x 1; M55 x 1.5; | 1 7/8–12UN; 1 13/16–16UN; | 2 1/4–12; 2 1/4–16 | 1 3/4–11 |
| TMS40D232L200Z9 | 2.320 | M64 x 1; M64 x 1.5; | 2 1/4–8UN; 2 1/4–10UN; | 2 1/2–12; 2 1/2–16 | 2 1/4–11 |
| 2 Step Clamping System! |
| Step 1. Location Screw |
 |
| Step 2. Clamping Screw (2) |
 |
