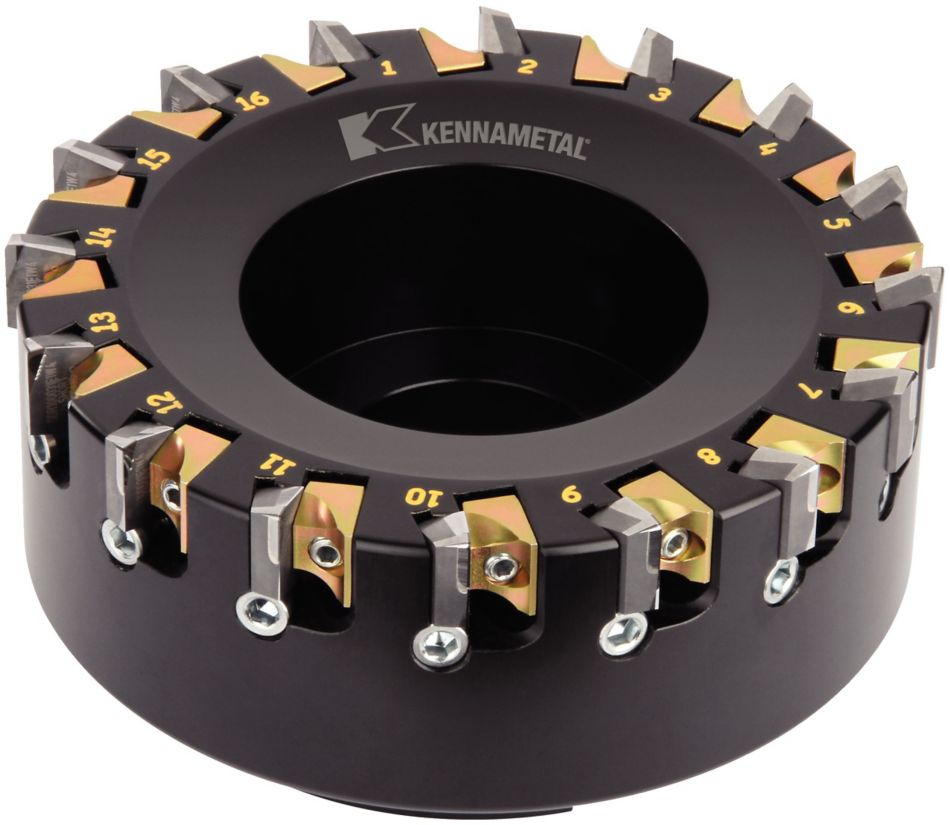

Herramienta de PCD
Planeado
Fresado — Con refrigeración interna
Fresado — lateral y planeadoDownloaded file will be available after import in the {{cadTool}} tool library.
| Número de material | 6044580 |
| Referencia ISO | KBDM300SD08 |
| Referencia ANSI | KBDM300SD08 |
| Diámetro de corte efectivo [D1] | 76.2 mm |
| Diámetro de corte efectivo [D1] | 3 in |
| Adaptador/Mango/Diá int [D] | 25.4 mm |
| Adaptador/Mango/Diá int [D] | 1 in |
| Diámetro de núcleo [D6] | 55.626 mm |
| Diámetro de núcleo [D6] | 2.19 in |
| Longitud total [L] | 50.8 mm |
| Longitud total [L] | 2 in |
| Número de plaquitas | 8 |
| Número de plaquitas ajustables | 8 |
| Peso en libras | 1.4 |
| RPM máx. | 20000 |
Herramienta de PCDPlaneadoFresado — Con refrigeración internaFresado — lateral y planeadoCrear una solución para calcular la velocidad y el avance
Después de crear una solución, sólo tiene que elegir el icono Avance y Velocidad y nuestro sistema le ofrecerá recomendaciones. Puede personalizar la información añadiendo su máquina y especificaciones o realizar ajustes utilizando los controles deslizantes.
| Grupo de materiales | KD1400 | KD1425 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1–2 | 910 | 1980 | 4880 | 910 | 1980 | 4880 |
| 3 | 460 | 610 | 760 | 460 | 610 | 760 | |
| S | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |
| Grupo de materiales | KD1400 | KD1425 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1–2 | 910 | 1980 | 4880 | 910 | 1980 | 4880 |
| 3 | 460 | 610 | 760 | 460 | 610 | 760 | |
| S | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |
| Grupo de materiales | KD1400 | KD1425 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1–2 | 3000 | 6500 | 16000 | 3000 | 6500 | 16000 |
| 3 | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | |
| S | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |
| Grupo de materiales | KD1400 | KD1425 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1–2 | 3000 | 6500 | 16000 | 3000 | 6500 | 16000 |
| 3 | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | |
| S | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |

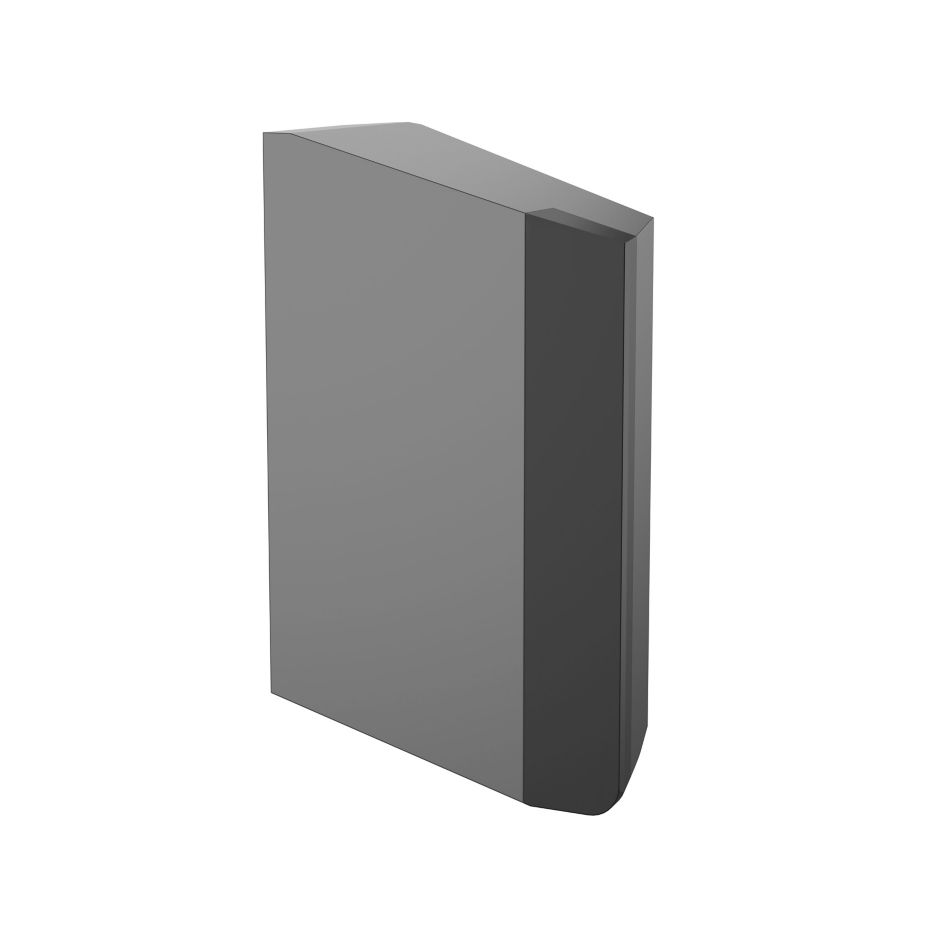

| Grupo de materiales | Mecanizado ligero | Aplicaciones generales | Mecanizado intensivo | |||
| (Geometría ligera) | (Geometría fuerte) | |||||
| resistencia |  | tenacidad | ||||
| Geometría | Calidad | Geometría | Calidad | Geometría | Calidad | |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | – | – | – | – | – | – |
| K3 | – | – | – | – | – | – |
| N1–N2 | .KSDR….. | KD1400 | .KSDR….. | KD1400 | .KSDR….. | KD1400 |
| N3 | .KSDR….. | KD1400 | .KSDR….. | KD1425 | .KSDR….. | KD1425 |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
| Grupo de materiales | Mecanizado ligero | Aplicaciones generales | Mecanizado intensivo | |||
| (Geometría ligera) | (Geometría fuerte) | |||||
| resistencia | | tenacidad | ||||
| Geometría | Calidad | Geometría | Calidad | Geometría | Calidad | |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | – | – | – | – | – | – |
| K3 | – | – | – | – | – | – |
| N1–N2 | .KSDR….. | KD1400 | .KSDR….. | KD1400 | .KSDR….. | KD1400 |
| N3 | .KSDR….. | KD1400 | .KSDR….. | KD1425 | .KSDR….. | KD1425 |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
