| Material Number | 1855169 |
| ISO Catalog ID | ADKT103504PDERLC |
| ANSI Catalog ID | ADKT16221PDERLC |
| Grade | KC725M |

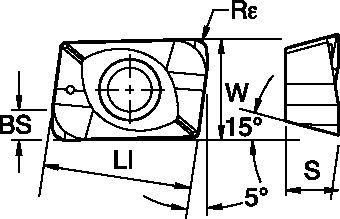

| [LI] Insert Length | 10 mm |
| [LI] Insert Length | 0.3937 in |
| [S] Insert Thickness | 3.5 mm |
| [S] Insert Thickness | 0.1378 in |
| [W] Insert Width | 6.7 mm |
| [W] Insert Width | 0.264 in |
| [BS] Corner Facet Length | 2 mm |
| [BS] Corner Facet Length | 0.0787 in |
| [Rε] Corner Radius | 0.4 mm |
| [Rε] Corner Radius | 0.016 in |
| Average Chip Thickness [HM] | 0.064 mm |
| Average Chip Thickness [HM] | 0.0025 in |
| Cutting Edges per Insert | 2 |
Grades
KC725M
Coated carbide grade with an advanced PVD TiAlN coating. KC725M is a high-performance grade for milling steel, stainless steel, and high-temperature alloys. The good thermal shock resistance of the substrate makes this grade ideal for both wet and dry machining. Primarily for use in general and heavy machining.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
