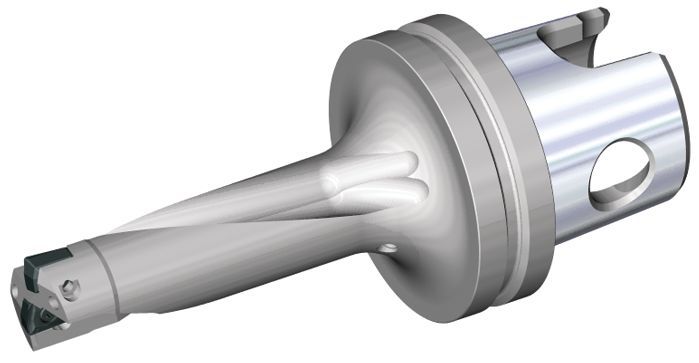

    DFR KM40TS Shank • KM50TS Shank • 3 x D • Inch

    Drill Fix™ DFR™ Bodies

    Material Number3583473

    ISO Catalog IDKM50DFR0500R3ANSI Catalog IDKM50DFR0500R3

    DFR KM32/KM40/KM50_TS 3xD In Holemaking - 3583473 - Kennametal
    DFR KM32/KM40/KM50_TS 3xD In Holemaking - 3583473 - Kennametal
    DFR KM32/KM40/KM50_TS 3xD In Holemaking - 3583473 - Kennametal
    Open expanded view
    DFR KM32/KM40/KM50_TS 3xD In Holemaking - 3583473 - Kennametal
    DFR KM32/KM40/KM50_TS 3xD In Holemaking - 3583473 - Kennametal
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • P Steel
    • M Stainless Steel
    • K Cast Iron
    • N Non-Ferrous
    • S High-Temp Alloys
    • .caption
    • DrillingDrilling
    • Drilling: Inclined EntryDrilling: Inclined Entry
    • Drilling: Inclined ExitDrilling: Inclined Exit
    • Drilling: X-OffsetDrilling: X-Offset
    • Drilling: ConvexDrilling: Convex
    • KM ShankKM Shank
    • Through Coolant: Radial: Indexable DrillingThrough Coolant: Radial: Indexable Drilling
    • Drilling: BlindDrilling: Blind
    • Chain DrillingChain Drilling
    • Drilling: Cross-Hole DrillingDrilling: Cross-Hole Drilling
    • Drilling: Half-Cylindrical DrillingDrilling: Half-Cylindrical Drilling
    • Drilling: Corner Drilling 45°Drilling: Corner Drilling 45°
    This export format is not yet supported for this category.

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 3583473
    Metric
    Inch
    Material Number3583473
    ISO Catalog IDKM50DFR0500R3
    ANSI Catalog IDKM50DFR0500R3
    [CSMS] System Size Machine SideKM50
    [D1] Drill Diameter M 12.7 mm
    [D1] Drill Diameter M 0.5 in
    [D1MAX] Drill Diameter Maximum13.7 mm
    [D1MAX] Drill Diameter Maximum0.5394 in
    [L1] Insert Gage Length 66.968 mm
    [L1] Insert Gage Length 2.6365 in
    [L4] Maximum Drilling Depth 38.1 mm
    [L4] Maximum Drilling Depth 1.5 in
    [L5] Drill Point Length0.515 mm
    [L5] Drill Point Length0.0203 in
    Gage InsertDFR0202.
    See all Product Variants

    Workpiece Materials

    • Steel
    • Stainless Steel
    • Cast Iron
    • Non-Ferrous
    • High-Temp Alloys
    • .caption

    Uses and application

    • DrillingDrilling
    • Drilling: Inclined EntryDrilling: Inclined Entry
    • Drilling: Inclined ExitDrilling: Inclined Exit
    • Drilling: X-OffsetDrilling: X-Offset
    • Drilling: ConvexDrilling: Convex
    • KM ShankKM Shank
    • Through Coolant: Radial: Indexable DrillingThrough Coolant: Radial: Indexable Drilling
    • Drilling: BlindDrilling: Blind
    • Chain DrillingChain Drilling
    • Drilling: Cross-Hole DrillingDrilling: Cross-Hole Drilling
    • Drilling: Half-Cylindrical DrillingDrilling: Half-Cylindrical Drilling
    • Drilling: Corner Drilling 45°Drilling: Corner Drilling 45°

    Features and benefits

    • Drill Fix DFR with rectangular-shaped inserts offer highest stability and feed rates at smaller sizes.
    • X-offset design to adjust diameter size on turning machines and optimize tolerances on machining centers.
    • Benefit from the KM-TS™ coupling as most precise and most stable tooling system allowing fully automated tool changing.
    • Drill shipped with insert screws, side pipe plug, and Torx wrench.

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    Application Data

    View MoreView Less

    Warning

    Warnings • Drill Fix DFR

    WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders.
    View MoreView Less

    Dimension

    Dimensions • DFR Flanged Shank

    DLS
    2050
    View MoreView Less

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets
    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    NCM-SS • Round Shank, Standard Length
    NCM-SS • Round Shank, Standard Length
    1144848
    KM50NCMSS5032
    KM50NCMSS5032
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    R/L CMI • Axial VDI
    R/L CMI • Axial VDI
    1144849
    KM50LCMIVDI5070
    KM50LCMIVDI5070
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    KM-CLA-VDI • Axial
    KM-CLA-VDI • Axial
    1145067
    KM50CLANVDI5080
    KM50CLANVDI5080
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    CL2S • Square Shank
    CL2S • Square Shank
    2044921
    KM50CL2SL1675D
    KM50CL2SL1675D
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    CL2S • Square Shank
    CL2S • Square Shank
    2044923
    KM50CL2SL2075D
    KM50CL2SL2075D
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    CL2N-SS • Round Shank
    CL2N-SS • Round Shank
    2044924
    KM50CL2NSS32295
    KM50CL2NSS32295
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    CL2S • Square Shank
    CL2S • Square Shank
    2044929
    KM50CL2SL2575M
    KM50CL2SL2575M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    KM-CV form AD
    KM-CV form AD
    2992488
    CV50BKM50236
    CV50BKM50236
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    KM-CVKV form B/AD - 40
    KM-CVKV form B/AD - 40
    3815316
    CVKV40KM50475
    CVKV40KM50475
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID
    Grade

    Drill Fix™ DFR™ • LD Inserts
    Drill Fix™ DFR™ • LD Inserts
    1730321
    DFR020204LD
    DFR020204LD
    KC7140
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Drill Fix™ DFR™ • GD Inserts
    Drill Fix™ DFR™ • GD Inserts
    1749648
    DFR020204GD
    DFR020204GD
    KC7140
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Drill Fix™ DFR™ • MD Inserts
    Drill Fix™ DFR™ • MD Inserts
    3050716
    DFR020204MD
    DFR020204MD
    KC7140
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Drill Fix™ DFR™ • LD Inserts
    Drill Fix™ DFR™ • LD Inserts
    5065552
    DFR020204LD
    DFR020204LD
    KCU40
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Drill Fix™ DFR™ • GD Inserts
    Drill Fix™ DFR™ • GD Inserts
    5065554
    DFR020204GD
    DFR020204GD
    KCU40
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Drill Fix™ DFR™ • MD Inserts
    Drill Fix™ DFR™ • MD Inserts
    5065556
    DFR020204MD
    DFR020204MD
    KCU40
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Drill Fix™ DFR™ • GD Inserts
    Drill Fix™ DFR™ • GD Inserts
    5066798
    DFR020204GD
    DFR020204GD
    KCU25
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Drill Fix™ DFR™ • MD Inserts
    Drill Fix™ DFR™ • MD Inserts
    5066799
    DFR020204MD
    DFR020204MD
    KCU25
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Drill Fix™ DFR™ • GD Inserts
    Drill Fix™ DFR™ • GD Inserts
    5068267
    DFR020204GD
    DFR020204GD
    KCPK10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    TORX-WRENCH TX6 170.027
    TORX-WRENCH TX6 170.027
    1138455
    170.027
    170.027
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    INSERT SCR M2-0.4 x 4.5 T6
    INSERT SCR M2-0.4 x 4.5 T6
    1175225
    193.281
    193.281
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    You are about to add to your My Solutions page. Do you want to proceed?
    Select the destination where you want to move to.
    Select the project where you want to add product(s) to.
    New Folder
      • Applied Filters:
      • Clear All

    A folder with the name already exists.

    Special characters not allowed
    Product(s) successfully added to project __PROJECT_NAME__
    product-image
    Please adjust the following properties from

    ISO Catalog Number

    ANSI Catalog Number

    to find similar products.

    The following files are available

    Please select a file to download

    Models

    Product data

    I have read and accepted the Terms & Conditions of use

    Can’t find the file type you’re looking for?

    You should be logged to see your dashboard information
    Session expired due to inactivity, please login again
    The product/s () you were trying to add to the cart is/are not available, please contact customer service
    item(s) successfully added to the cart
    View Cart

    . Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.

    Minimum quantity should be

    SAP Material Number ISO Catalog Number Grade

    You are about to leave the Solution building process.

    Are you sure you want to leave?

    Workpiece Selection

    Standard

    ALL

    Material

    Select a Value

    Hardness

    --

        Hardness Scale

        --

          Permitted Groups :

          Group

          SubGroup

          Hardness (HB)

          Hardness (HRC)

          CancelOk
