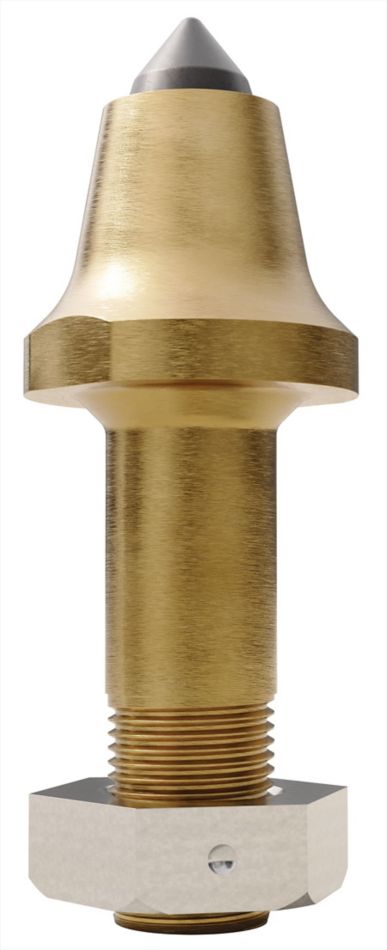

Rotating Tungsten Carbide Pick • 20mm (.76 in) Shank

External Retainer for Maximum Attachment • Cap Tip for Abrasive Conditions

Метрическая система
Дюймовая система
SAP Material Number 1010734
ISO Catalog Number C 3T
ANSI Catalog Number C 3T
Grade K3560
Point Included Angle [SIGMA] 75
EW_CON_POINT_INCL_ANGLE_B 35
[TD] Tip Diameter 15.875 mm
[TD] Tip Diameter .625 in
[TL] Tip Length 13.462 mm
[TL] Tip Length .53 in
[L1] Gage Length 44.069 mm
[L1] Gage Length 1.735 in
[D2] Body Diameter Workpiece Side 38.1 mm
[D2] Body Diameter Workpiece Side 1.5 in
[D] Shank/Bore Diameter 19.431 mm
[D] Shank/Bore Diameter .765 in
Connection Thread Size [G3X] 3/4 - 16 UNF
[LRO] Retainer Offset Length 33.528 mm
[LRO] Retainer Offset Length 1.32 in
[LS] Shank Length 58.928 mm
[LS] Shank Length 2.32 in
[OAL] Overall Length 103 mm
[OAL] Overall Length 4.06 in
