Positive Lock Retainer for Grooved Blocks • Narrow Bottom Plug Tip for a Variety of Cutting Conditions
Positive Lock Retainer for Grooved Blocks • Narrow Bottom Plug Tip for a Variety of Cutting Conditions
Positive Lock Retainer for Grooved Blocks • Narrow Bottom Plug Tip for a Variety of Cutting Conditions
Positive Lock Retainer for Grooved Blocks • Narrow Bottom Plug Tip for a Variety of Cutting Conditions
Select the files you wish to request
Downloads
Request {{cadTool}} format
{{cadTool}} format is not available

Rotating Tungsten Carbide Pick • 20mm (.76 in) Shank

Positive Lock Retainer for Grooved Blocks • Narrow Bottom Plug Tip for a Variety of Cutting Conditions

Метрическая система
Дюймовая система
SAP Material Number 1156107
ISO Catalog Number RS17
ANSI Catalog Number RS17
Grade K3560

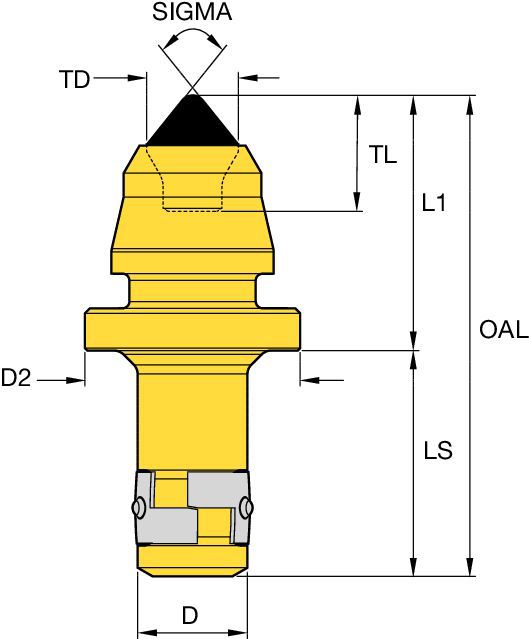

Point Included Angle [SIGMA] 78
[TD] Tip Diameter 16.231 mm
[TD] Tip Diameter .639 in
[TL] Tip Length 20.504 mm
[TL] Tip Length .8072 in
[L1] Gage Length 45.168 mm
[L1] Gage Length 1.778 in
[D2] Body Diameter Workpiece Side 38.1 mm
[D2] Body Diameter Workpiece Side 1.5 in
[D] Shank/Bore Diameter 19.431 mm
[D] Shank/Bore Diameter .765 in
[LS] Shank Length 39.929 mm
[LS] Shank Length 1.572 in
[OAL] Overall Length 85.097 mm
[OAL] Overall Length 3.35 in
