HexaCut™ 45° • Cast Iron

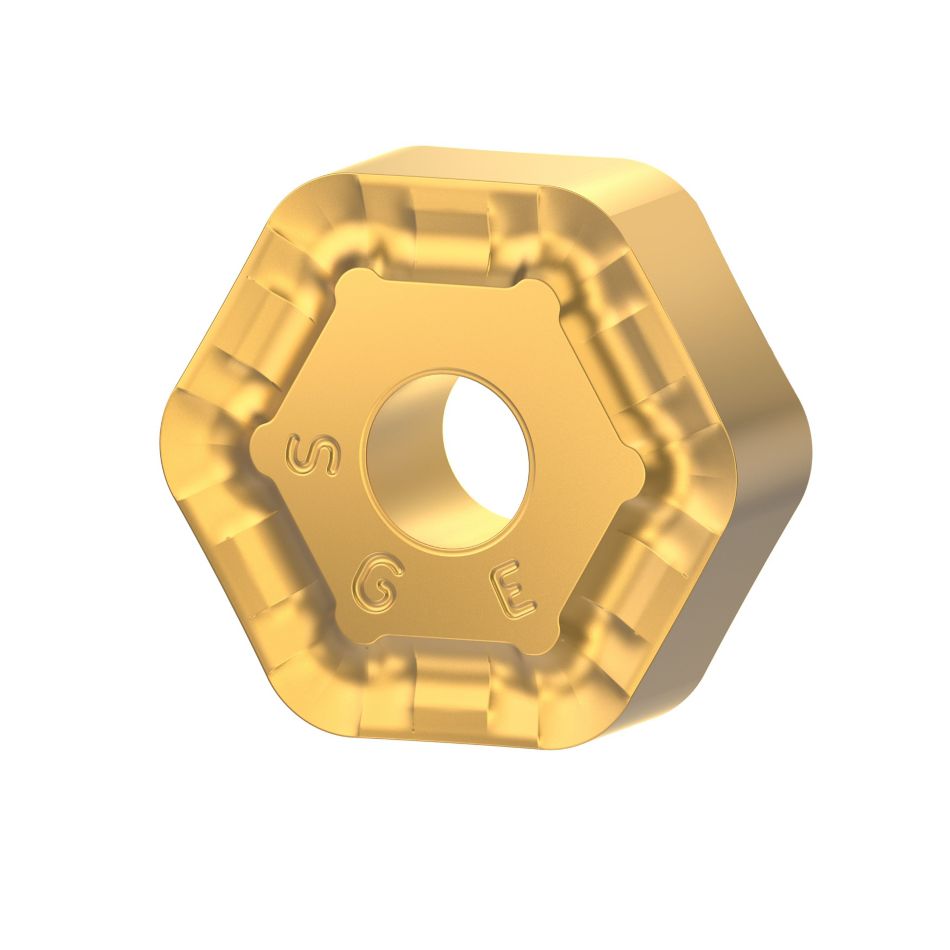

HexaCut 45° roughing and semi-finishing face milling operations are a terrific solution for use on cast and ductile iron materials as well CGI (Compacted Graphite Iron). Proven to be very effective in special automotive applications, the HexaCut milling platform can be a problem solver for difficult milling operations. Twelve cutting edges on each insert drastically reduce cost per edge and increase tool life. The comprehensive insert geometries match every application for light, medium, and heavy machining. Additionally, the 45° lead cutter bodies are engineered with fixed pockets for roughing applications up to Ap1 max = 6mm.
