| SAP Material Number | 5598260 |
| ISO Catalog Number | DS105DR X |
| ANSI Catalog Number | DS105DR X |
| Grade | K3560 |

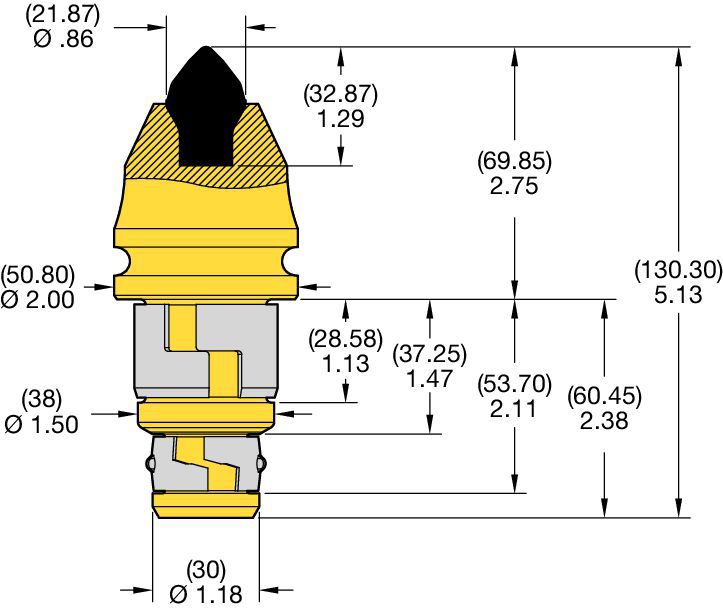

| [L1] Gage Length | 69.935 mm |
| [L1] Gage Length | 2.753 in |
| [LS] Shank Length | 60.452 mm |
| [LS] Shank Length | 2.380 in |
| [LRO] Retainer Offset Length | 28.575 mm |
| [LRO] Retainer Offset Length | 1.125 in |
| [TL] Tip Length | 32.868 mm |
| [TL] Tip Length | 1.294 in |
| [TD] Tip Diameter | 21.869 mm |
| [TD] Tip Diameter | .8610 in |
| [TDS] Tip Diameter Start | 28.854 mm |
| [TDS] Tip Diameter Start | 1.136 in |
| [D] Shank/Bore Diameter | 37.719 mm |
| [D] Shank/Bore Diameter | 1.485 in |
| [D2] Body Diameter Workpiece Side | 50.800 mm |
| [D2] Body Diameter Workpiece Side | 2.000 in |
| [DR] Shank Diameter Reduced | 29.515 mm |
| [DR] Shank Diameter Reduced | 1.162 in |
| [OAL] Overall Length | 130.387 mm |
| [OAL] Overall Length | 5.133 in |
| Cutting Condition | SEVERE |
| EW_MACHINE_POWER | MEDIUM TO HIGH |
| EW_CON_RETAINER_STYLE | FRICTION POSITIVE LOCK |
100029112
Cutting Conditions: Abrasive
Tool with Puller Groove
Internal Retainer
X Treatment
Cutting Conditions: Heavy
