ER™ • CVKV40 Form AD
ER™ • CVKV40 Form AD
ER™ • CVKV40 Form AD
ER™ • CVKV40 Form AD

ER™ • CVKV40 Form AD

ER™ • CVKV40 Form AD

Features and benefits

  • Grip (2:1 advantage).

Uses and application

  • Collet - ER DIN 6499Collet - ER DIN 6499
  • Axial Adjustment - EndAxial Adjustment - End
  • Shank - Cylindrical with SquareShank - Cylindrical with Square
  • Shank - Cylindrical PlainShank - Cylindrical Plain
  • Drilling - Through CoolantDrilling - Through Coolant
  • ER Solid ColletER Solid Collet
  • 100042741100042741
  • Shank - Screw-OnShank - Screw-On
  • Shank - 5/8"–11 unc DrawbarShank - 5/8"–11 unc Drawbar
ER™ • CVKV40 Form AD
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Front-End
Gage Length
Gage Length
  • 2.5000 in (3)
  • 2.7500 in (1)
  • 3.0000 in (1)
  • 4.0000 in (4)
  • 4.5000 in (1)
  • 5.0000 in (1)
  • 6.0000 in (5)
Gage Length
Gage Length
  • 63.5000 mm (3)
  • 69.8500 mm (1)
  • 76.2000 mm (1)
  • 101.6000 mm (4)
  • 114.3000 mm (1)
  • 127.0000 mm (1)
  • 152.4000 mm (5)
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 10 of 16 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

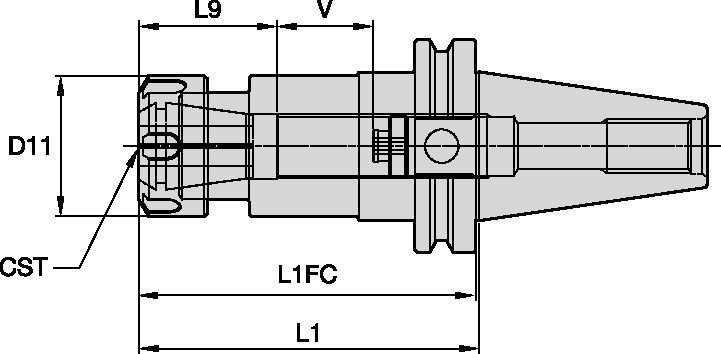

SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [CST] Catalog Collet Series [D11] Lock Nut Diameter [D11] Lock Nut Diameter [L1] Gage Length [L1] Gage Length Gage Length Face Contact [L1FC] Gage Length Face Contact [L1FC] [L9] Clamping Length [L9] Clamping Hole Length [V] Adjustment Range [V] Adjustment Range Weight Pounds Counter Bore Collet Torque Nm Straight Collet Torque Nm Stop Screw ID Drive Size
3860218 CVKV40ER16250 CVKV40ER16250   ER16 32.0000 1.259 63.5000 2.500 62.4890 2.460 32.0000 1.259 33.0000 1.299 2.43 40.000 56 4 mm & 5/32
    List price:
    $451.29 /each.
    Your price::
    6694003 CVKV40ER16400 CVKV40ER16400 ER16 32.0000 1.259 101.6000 4.000 100.5890 3.960 32.0000 1.259 38.0000 1.496 2.74 40.000 56 4mm & 5/32
      List price:
      $459.80 /each.
      Your price::
      3860220 CVKV40ER16500 CVKV40ER16500 ER16 32.0000 1.259 127.0000 5.000 125.9890 4.960 32.0000 1.259 38.0000 1.496 2.89 40.000 56 4 mm & 5/32
        List price:
        $468.32 /each.
        Your price::
        6694008 CVKV40ER16600 CVKV40ER16600 ER16 32.0000 1.259 152.4000 6.000 151.3890 5.960 32.0000 1.259 38.0000 1.496 3.20 40.000 56 4mm & 5/32
          List price:
          $468.32 /each.
          Your price::
          3860221 CVKV40ER20250 CVKV40ER20250 ER20 35.0000 1.378 63.5000 2.500 62.4890 2.460 36.0000 1.417 26.0000 1.023 2.36 32.000 80 4 mm & 5/32
            List price:
            $451.29 /each.
            Your price::
            6694004 CVKV40ER20400 CVKV40ER20400 ER20 35.0000 1.378 101.6000 4.000 100.5890 3.960 36.0000 1.417 44.0000 1.732 2.36 32.000 80 4mm & 5/32
              List price:
              $459.80 /each.
              Your price::
              3860222 CVKV40ER20600 CVKV40ER20600 ER20 35.0000 1.378 152.4000 6.000 151.3890 5.960 36.0000 1.417 44.0000 1.732 3.57 32.000 80 4 mm & 5/32
                List price:
                $468.32 /each.
                Your price::
                3860223 CVKV40ER25250 CVKV40ER25250 ER25 42.0000 1.653 63.5000 2.500 62.4890 2.460 40.0000 1.574 16.0000 .6299 2.40 104.000 104 4 mm & 5/32
                  List price:
                  $451.29 /each.
                  Your price::
                  6694005 CVKV40ER25400 CVKV40ER25400 ER25 42.0000 1.653 101.6000 4.000 100.5890 3.960 40.0000 1.574 50.0000 1.968 3.14 104.000 104 4mm & 5/32
                    List price:
                    $459.80 /each.
                    Your price::
                    3860224 CVKV40ER25600 CVKV40ER25600 ER25 42.0000 1.653 152.4000 6.000 151.2890 5.960 40.0000 1.574 60.0000 2.362 4.17 104.000 104 4 mm & 5/32
                      List price:
                      $468.32 /each.
                      Your price::
                      3860225 CVKV40ER32275 CVKV40ER32275 ER32 50.0000 1.968 69.8500 2.750 68.8500 2.710 46.0000 1.811 11.0000 .4331 2.50 136.000 136 4 mm & 5/32
                        List price:
                        $459.81 /each.
                        Your price::
                        6694006 CVKV40ER32400 CVKV40ER32400 ER32 50.0000 1.968 101.6000 4.000 100.5890 3.960 46.0000 1.811 44.0000 1.732 3.17 136.000 136 4mm & 5/32
                          List price:
                          $459.80 /each.
                          Your price::
                          3860226 CVKV40ER32600 CVKV40ER32600 ER32 50.0000 1.968 152.4000 6.000 151.4000 5.960 46.0000 1.811 54.0000 2.126 4.30 136.000 136 4 mm & 5/32
                            List price:
                            $468.32 /each.
                            Your price::
                            3860227 CVKV40ER40300 CVKV40ER40300 ER40 63.0000 2.480 76.2000 3.000 75.1890 2.960 52.0000 2.047 7.0000 .2756 2.83 176.000 176 4 mm & 5/32
                              List price:
                              $485.35 /each.
                              Your price::
                              6694007 CVKV40ER40450 CVKV40ER40450 ER40 63.0000 2.480 114.3000 4.500 113.2890 4.460 52.0000 2.047 48.0000 1.889 4.42 176.000 176 4mm & 5/32
                                List price:
                                $493.86 /each.
                                Your price::
                                3860228 CVKV40ER40600 CVKV40ER40600 ER40 63.0000 2.480 152.4000 6.000 151.3890 5.960 52.0000 2.047 48.0000 1.889 8.19 176.000 176 4 mm & 5/32
                                  List price:
                                  $502.39 /each.
                                  Your price::
