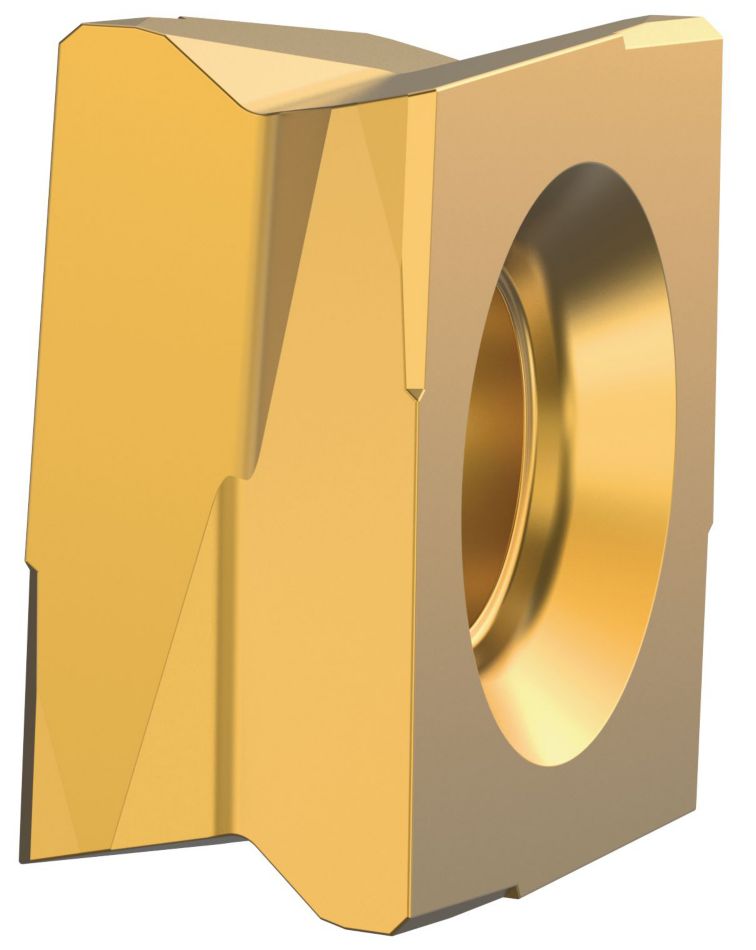

Fix-Perfect™ 90° • Carbide Insert • SPHX-GPB • Medium Machining
Milling Insert With Wiper Facet • Honed Cutting Edge
Features and benefits
- Milling insert for cast iron and compacted graphite iron (CGI) machining.
- High-precision periphery ground insert.
- Indexabe milling insert with eight cutting edges.
Filters and Columns
Filters
Filters
Filters
View filters in
Metric
Inch
Workpiece Material
Workpiece Material
-
K Cast Iron (1)
-
K1Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS(1)
-
K2Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS(1)
-
K3High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS(1)
-
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying
1- 1
of 1 results
Metric
Inch
Show
Metric
Inch
| SAP Material Number | ISO Catalog Number | ANSI Catalog Number | Grade | [L10] Insert Cutting Edge Length | [L10] Insert Cutting Edge Length | [S] Insert Thickness | [S] Insert Thickness | [BS] Corner Facet Length | [BS] Corner Facet Length | Cutting Edges per Insert | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6969252 | SPHX1205PCERGPB | SPHX1205PCERGPB | KCK20B | 6.5700 | .2587 | 5.5000 | .2165 | 0.7000 | .0276 | 8 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$35.23
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
Discount: %
Replacement
This item is no longer available
Replacement Product Please contact customer service for assistance
Replacement Product Please contact customer service for assistance
Qty
Sold in pkg. of
Insert Selection Guide
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| – | (Light geometry) | (Strong geometry) | ||||
| – | wear resistance |  <="" td=""> | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..GPB | KC520M | .E..GPB | KCK15 | .S..GPB | KCK15 |
| K3 | .E..GPB | KC520M | .E..GPB | KCK15 | .S..GPB | KCK15 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
Recommended Starting Feeds [IPT]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..GPB | .005 | .019 | .033 | .003 | .013 | .023 | .003 | .010 | .018 | .002 | .009 | .015 | .002 | .008 | .014 | .E..GPB |
| .T..GPB | .009 | .023 | .037 | .007 | .017 | .027 | .005 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 | .T..GPB |
| .S..GPB | .009 | .023 | .037 | .007 | .017 | .027 | .005 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 | .S..GPB |
| Light Machining | General Purpose | Heavy Machining |
Recommended Starting Speeds [SFM]
| Material Group | KB1340 | KC520M | KCK15 | KTPK20 | KCPK30 | KY3500 | |||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 4500 | 3000 | 1600 | 880 | 800 | 710 | 1380 | 1255 | 1115 | 760 | 640 | 530 | 965 | 875 | 780 | 2640 | 2400 | 2130 |
| 2 | – | – | – | 690 | 620 | 580 | 1095 | 975 | 910 | 600 | 490 | 430 | 770 | 690 | 630 | 2090 | 1870 | 1740 | |
| 3 | – | – | – | 580 | 520 | 470 | 920 | 815 | 750 | 500 | 420 | 350 | 645 | 575 | 530 | 1760 | 1560 | 1430 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
