KenCut™ HM • F4-5AJ-WSMLX • Radiused • 4 Flutes • Long • Plain Shank • Metric
Product Similar To:
KenCut™ HM • F4-5AJ-WSMLX • Radiused • 4 Flutes • Long • Plain Shank • Metric
KenCut™ HM Solid Carbide End Mill for Finishing of Steels and Hard Materials
Material Number100003490
Contact our sales team to discover all of your pricing options
Features and benefits
- Centre cutting for plunging and ramping operations.
- Solid carbide end mills for machining of hard materials greater than 60HRC.
Slotting: Square End
Side Milling/Shoulder Milling: Square End

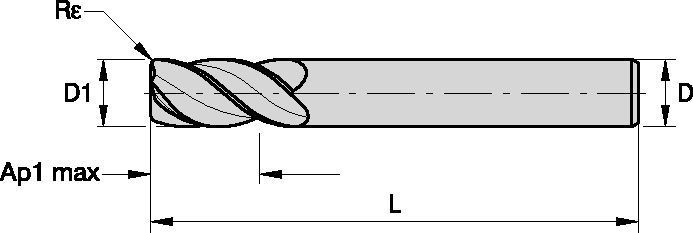

Tool Dimensions: Flute Configuration: X (variable)
Helix Angle: 50°
Corner Style: Corner Radius
| End Mill Tolerances | |||
| D1 | tolerance e8 | D | tolerance h6 + / - |
| ≤3 | -0,014/-0,028 | ≤3 | +0/-0,006 |
| -0,020/-0,038 | +0/-0,008 | ||
| -0,025/-0,047 | +0/-0,009 | ||
| -0,032/-0,059 | +0/-0,011 | ||
| -0,040/-0,073 | +0/-0,013 | ||
 |  |  | ||||||||||||||
| Side Milling (A) and Slotting (B) | KC633M | Feed per Tooth — fz information is for side milling (A). | ||||||||||||||
| A | B | Cutting Speed | D1 | |||||||||||||
| Material | ap | ae | ap | Min | Max | mm | 4,0 | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | 25,0 | |
| P | 3 | 1 x D | 0,4 x D | 1 x D | 160 | 180 | fz | 0,026 | 0,033 | 0,040 | 0,055 | 0,067 | 0,077 | 0,096 | 0,111 | 0,125 |
| 4 | 1 x D | 0,4 x D | 0,75 x D | 140 | 160 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,059 | 0,069 | 0,084 | 0,097 | 0,107 | |
| H | 1 | 1 x D | 0,4 x D | 0,75 x D | 120 | 140 | fz | 0,024 | 0,030 | 0,036 | 0,049 | 0,059 | 0,069 | 0,084 | 0,097 | 0,107 |
| 2 | 1 x D | 0,3 x D | 0,5 x D | 80 | 130 | fz | 0,018 | 0,022 | 0,027 | 0,037 | 0,044 | 0,051 | 0,063 | 0,071 | 0,078 | |
| 3 | 1 x D | 0,15 x D | 0,3 x D | 70 | 100 | fz | 0,014 | 0,018 | 0,021 | 0,029 | 0,035 | 0,041 | 0,051 | 0,059 | 0,067 | |
| 4 | 1 x D | 0,1 x D | 0,15 x D | 50 | 70 | fz | 0,009 | 0,012 | 0,014 | 0,019 | 0,023 | 0,027 | 0,034 | 0,039 | 0,044 | |
