KOR5™ DA • Square End • 5 Flutes • 3 x D • Plain Shank • Inch
KOR5™ DA Solid Carbide End Mill for Dynamic Milling of Aluminum
Features and benefits
- Designed for trochoidal milling with low radial engagement and full length of cut.
- With chip splitters for ideal chip evacuation.
- Proprietary flute form reduces vibrations and improves tool life.
- Helix angle tailored to minimize vibration and optimize tool life.
- Front end geometry designed for maximum tool life in helical and ramping operations.
Uses and application
Corner Style: Square End
Ramping: 4°
Shank - Cylindrical Plain
Side Milling/Shoulder Milling: Finishing
Trochoidal Milling
Helix Angle: 35°
Tool Dimensions: Flute Configuration: 5
Side Milling/Shoulder Milling: Roughing
Corner Style: Corner Radius
Workpiece Materials
N
Non-Ferrous
Filters and Columns
Filters
Filters
Filters
View filters in
Metric
Inch
Workpiece Material
Workpiece Material
-
N Non-Ferrous Materials (1)
-
N1Wrought Aluminum(1)
-
N2Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%(1)
-
Applications
Applications
-
Pocket Helical (1)
-
Pocket Milling (1)
-
Ramping (1)
-
Shoulder Milling (1)
-
-
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying
1- 1
of 1 results
Metric
Inch
Show
Metric
Inch

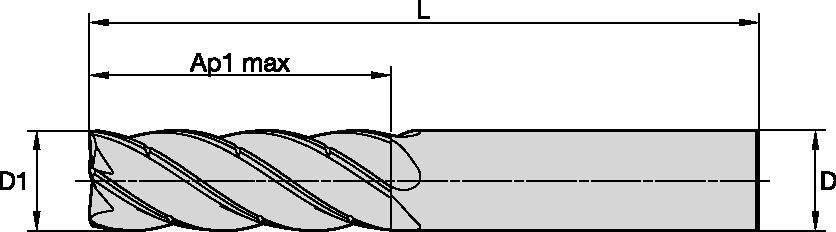

| SAP Material Number | ISO Catalog Number | ANSI Catalog Number | Grade | Adapter Style Machine Side | [D] Adapter / Shank / Bore Diameter | [D] Adapter / Shank / Bore Diameter | [Z] Number of Flutes | [D1] Effective Cutting Diameter | [D1] Effective Cutting Diameter | [AP1MAX] 1st Maximum Cutting Depth | [AP1MAX] 1st Maximum Cutting Depth | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6754951 | KOR5SE0375R113HAC | KOR5SE0375R113HAC | K600 | Straight-Cylindrical | 9.525 | .375 | 5 | 9.5250 | .3750 | 28.5750 | 1.125 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
$81.14
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
Discount: %
Replacement
This item is no longer available
Replacement Product Please contact customer service for assistance
Replacement Product Please contact customer service for assistance
Qty
Sold in pkg. of
Grades
-
K600
Carbide grade made from high-quality, micrograin materials for cutting all types of workpiece materials. Very high toughness ensures a controlled wear rate. The micrograin structure enables extremely sharp cutting edges.
N Non-Ferrous
| Ae/D1 | 2% | 5% | 10% | 20% | 30% | 40% | 50% | 100% |
| Max Ap | Ap1 Max | Ap1 Max | Ap1 Max | Ap1 Max | 2 x D1 | 1 x D1 | .5 x D1 | .25 x D1 |
| Feed Multiplier | 3.60 | 2.30 | 1.70 | 1.25 | 1.09 | 1.02 | 1.00 | .90 |
| Ae/D1 | 2% | 5% | 10% | 20% | 30% | 40% | 50% | 100% |
| Max Ap | Ap1 Max | Ap1 Max | Ap1 Max | Ap1 Max | 2 x D1 | 1 x D1 | 0,5 x D1 | 0,25 x D1 |
| Feed Multiplier (KFz) | 3,60 | 2,30 | 1,70 | 1,25 | 1,09 | 1,02 | 1,00 | 0,90 |
 <="" td=""> |  <="" td=""> |  <="" td="" /> |
|||||||||||
| Side Milling (A) and Slotting (B) | K600 | Recommended feed per tooth (IPT = inch/th) | |||||||||||
| D1 Diameter | |||||||||||||
| Material Group | A | B | Cutting Speed vc SFM | frac. | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||||
| ap | ae | ap | min | max | dec. | .3750 | .5000 | .6250 | .7500 | 1.0000 | |||
| N | 1 | 0.5 x D1 | 0.5 x D1 | 0.25 x D1 | 640 | – | 6560 | IPT | 0.0030 | 0.0050 | 0.0060 | 0.0080 | 0.0090 |
| 2 | 0.5 x D1 | 0.5 x D1 | 0.25 x D1 | 640 | – | 4920 | IPT | 0.0025 | 0.0045 | 0.0055 | 0.0070 | 0.0085 | |
| Material Group | <="" td=""> | <="" td=""> | K600 | Recommended feed per tooth (fz = mm/th) | |||||||||
| A | B | Cutting Speed vc m/min | D1 Diameter | ||||||||||
| ap | ae | ap | Min | Max | mm | 10,0 | 12,0 | 16,0 | 20,0 | 25,0 | |||
| N | 1 | 0,5 x D1 | 0,5 x D1 | 0,25 x D1 | 200 | – | 2000 | fz | 0,080 | 0,120 | 0,160 | 0,200 | 0,225 |
| 2 | 0,5 x D1 | 0,5 x D1 | 0,25 x D1 | 200 | – | 1500 | fz | 0,070 | 0,110 | 0,140 | 0,180 | 0,213 | |
