KOR6™ <sup>DT</sup> Solid Carbide End Mill for Dynamic Milling of Titanium

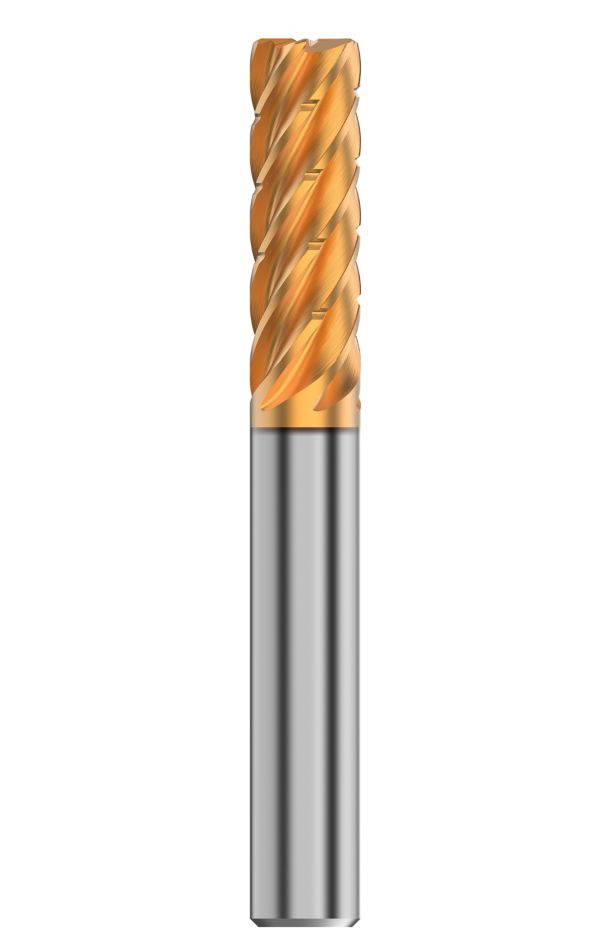

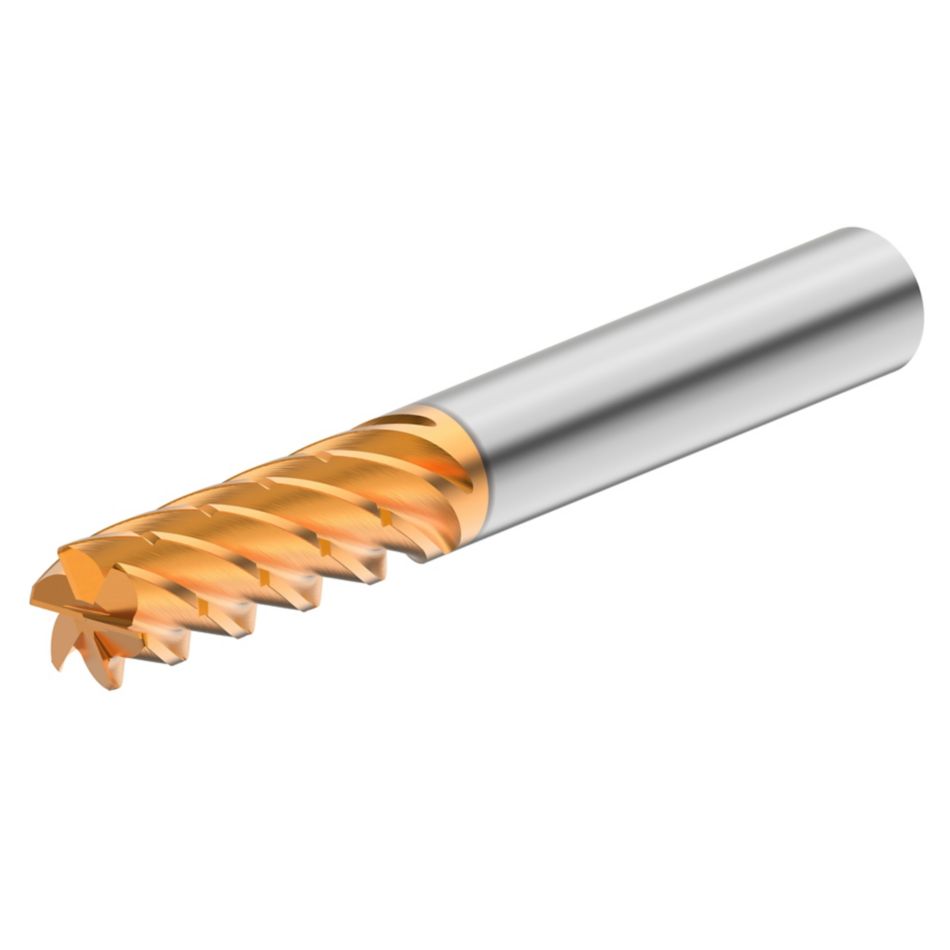

KOR6™ ^DT • Radiused • 6 Flutes • 3 x D • Plain Shank • Metric

Name: KOR6™ DT • Radiused • 6 Flutes • 3 x D • Plain Shank • Metric
SKU: 100159681
Rating: 0 (0 reviews)

KOR6™ ^DT Solid Carbide End Mill for Dynamic Milling of Titanium

Features and benefits

Designed for trochoidal milling with low radial engagement and full length of cut.

With chip splitters for ideal chip evacuation.

Proprietary flute form reduces vibrations and improves tool life.

Helix angle tailored to minimize vibration and optimize tool life.

Front end geometry designed for maximum tool life in helical and ramping operations.

Centre cutting for plunging and ramping operations.

Uses and application

Trochoidal Milling
Ramping: Blank
Side Milling/Shoulder Milling: Square End

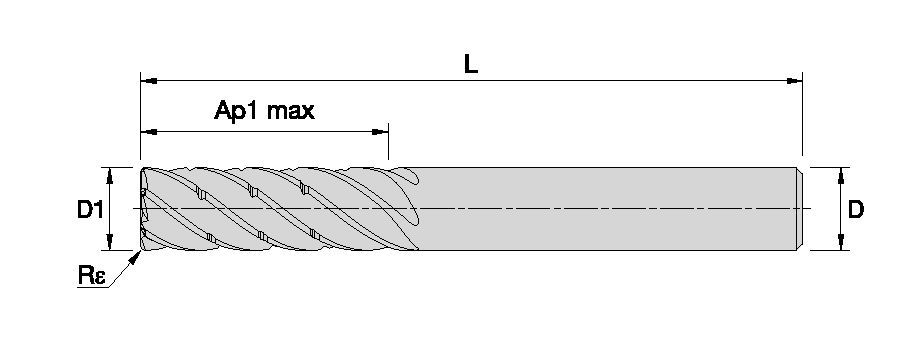

Tool Dimensions: Flute Configuration: 6
Shank - Cylindrical Plain
Helix Angle: 38°
Corner Style: Corner Radius

. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.

	Ae/D1	0.50%	1.00%	1.50%	2.00%	4.00%	5.00%	8.00%	10.00%
Speed factor	Kv	2.15	2.11	2.07	1.48	1.11	1.07	1.04	1.00
Feed factor	KFz	1.65	1.53	1.47	1.41	1.35	1.29	1.18	1.00


		Side Milling (A)		KCSM15			Recommended feed per tooth (fz = mm/th) for side milling (A).
		A		Cutting Speed vc m/min				D1 Diameter
Material Group		ap	ae	min		max	mm	8,0	10,0	12,0	16,0	20,0	25,0
P	0	3 x D	0.1 x D	150	–	440	fz	0,072	0,086	0,099	0,121	0,137	0,149
	1	3 x D	0.1 x D	150	–	440	fz	0,072	0,086	0,099	0,121	0,137	0,149
	2	3 x D	0.1 x D	140	–	418	fz	0,072	0,086	0,099	0,121	0,137	0,149
	3	3 x D	0.1 x D	120	–	352	fz	0,060	0,073	0,084	0,105	0,121	0,137
	4	3 x D	0.1 x D	90	–	330	fz	0,054	0,065	0,075	0,092	0,106	0,117
	5	3 x D	0.1 x D	60	–	220	fz	0,048	0,058	0,067	0,084	0,097	0,109
	6	3 x D	0.1 x D	50	–	165	fz	0,040	0,048	0,056	0,068	0,078	0,085
M	1	3 x D	0.1 x D	90	–	253	fz	0,060	0,073	0,084	0,105	0,121	0,137
	2	3 x D	0.1 x D	60	–	176	fz	0,048	0,058	0,067	0,084	0,097	0,109
	3	3 x D	0.1 x D	60	–	154	fz	0,040	0,048	0,056	0,068	0,078	0,085
K	1	3 x D	0.1 x D	120	–	330	fz	0,072	0,086	0,099	0,121	0,137	0,149
	2	3 x D	0.1 x D	110	–	308	fz	0,060	0,073	0,084	0,105	0,121	0,137
	3	3 x D	0.1 x D	110	–	286	fz	0,048	0,058	0,067	0,084	0,097	0,109
S	1	3 x D	0.1 x D	50	–	198	fz	0,060	0,073	0,084	0,105	0,121	0,137
	2	3 x D	0.1 x D	25	–	88	fz	0,032	0,038	0,045	0,056	0,065	0,074
	3	3 x D	0.1 x D	25	–	88	fz	0,032	0,038	0,045	0,056	0,065	0,074
	4	3 x D	0.1 x D	50	–	132	fz	0,044	0,053	0,062	0,077	0,089	0,100
H	1	3 x D	0.1 x D	80	–	308	fz	0,054	0,065	0,075	0,092	0,106	0,117
	2	3 x D	0.1 x D	70	–	264	fz	0,040	0,048	0,056	0,068	0,078	0,085
