KRR-6610

Inserts

Features and benefits

Kennametal stocks a complete line of standard inserts for wheel and axle machining. Inserts are available in various styles, sizes, and grades.

  • Wheel boring — molded chipbreaker inserts in round, square, octagon, and regrindable inserts.

  • Axle turning — triangle- and diamond-shaped inserts with chipbreakers.

  • Wheel turning — rectangular and square styles, with or without molded chipbreakers.

  • Wheel turning — round buttons with center hole for locking.

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
Inserts
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • P Steel (3)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (3)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (3)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (3)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (3)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (3)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (3)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (3)
  • M Stainless Steel (1)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (1)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (1)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (1)
  • K Cast Iron (1)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (1)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (1)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (1)
Cutting Edges Per Insert
Cutting Edges Per Insert
  • 4.0 (4)
  • 8.0 (1)
Cutting Edges Per Insert Min to Cutting Edges Per Insert Max
Corner configuration
Corner Radius
Corner Radius
  • 0.1563 in (1)
  • 0.1875 in (4)
Corner Radius Min to Corner Radius Max
Corner Radius
Corner Radius
  • 3.97 mm (1)
  • 4.763 mm (4)
Corner Radius Min to Corner Radius Max
Application
Minimum Depth of Cut
Minimum Depth of Cut
Minimum Feed
Minimum Feed
Grade Of Cutting Tool
Grade Of Cutting Tool
  • K40 (1)
  • KC5115RR (1)
  • KC850 (1)
  • KC9115RR (1)
  • KC9125RR (1)
Front-End
Insert Shape
Insert Shape
  • L-RECTANGLE 90 (4)
  • S-SQUARE 90 (1)
Insert Geometry
Shape
Shape
  • L-RECTANGLE 90 (4)
  • S-SQUARE 90 (1)
Insert IC Size
Insert IC Size
  • 19.05 mm (1)
Insert IC Size Min to Insert IC Size Max
Insert IC Size
Insert IC Size
  • 0.075 in (1)
Insert IC Size Min to Insert IC Size Max
Cutting Edge Length
Cutting Edge Length
  • 19.05 mm (1)
  • 31.75 mm (4)
Cutting Edge Length Min to Cutting Edge Length Max
Cutting Edge Length
Cutting Edge Length
  • 0.75 in (1)
  • 1.25 in (4)
Cutting Edge Length Min to Cutting Edge Length Max
Chip Breaker CBMD
Chip Breaker CBMD
  • 52 (2)
  • 75 (1)
  • 80 (1)
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 5 of 5 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

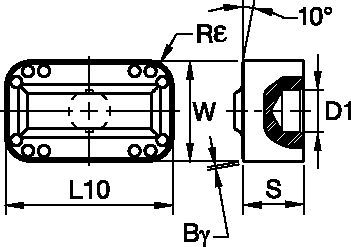

SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size B Gamma [BGAMMA] B Gamma [BGAMMA]
2487879 KRR658652 KRR658652 KC9125RR 19.0500 .7500 31.7500 1.250 12.7000 .5000 4.7630 .1875 7.8740 .3100 0.5080 .0200
    List price:
    $65.54 /each.
    Your price::
    2487881 KRR658652 KRR658652 KC9115RR 19.0500 .7500 31.7500 1.250 12.7000 .5000 4.7630 .1875 7.8740 .3100 0.5080 .0200
      List price:
      $48.99 /each.
      Your price::
      1732816 KRR658675 KRR658675 KC5115RR 19.0500 .7500 31.7500 1.250 12.7000 .5000 4.7630 .1875 7.8700 .3100
        List price:
        $70.22 /each.
        Your price::
        1157420 KRR658680 KRR658680 KC850 19.0500 .7500 31.7500 1.250 12.7000 .5000 4.7630 .1875 7.8700 .3100 0.5080 .0200
          List price:
          $69.04 /each.
          Your price::
          1157397 KRR6610 KRR6610 K40 19.0500 .7500 19.0500 .7500 9.5250 .3750 3.9700 .1562 7.9500 .3130
            List price:
            $47.96 /each.
            Your price::
            List price:
            Discount: %
            Your price::
            Replacement This item is not available
            Replacement Product This item may be available through a distributor

            Grades

            • K40
              P Steel
              K Cast Iron
            • KC5115RR
            • KC5125RR
              P Steel
            • KC850

              composition: A CVD tri-phase coating on an extra-strong, cobalt-enriched
              alloyed substrate.
              application: Designed for heavy cutting of low-, medium-, and high-carbon
              steels, medium hardness alloy and tool steels, stainless steels, and some
              high-temperature alloys. Excellent thermal and mechanical shock resistance
              makes grade KC850 ideally suited for difficult drilling applications.
              Used in inserts for Kendex/Metcut drill bodies.

              P Steel
              M Stainless Steel
            • KC9110RR
            • KC9115RR
            • KC9125RR
              P Steel
            • KC950

              KC950

            • KCP25

              Composition: A tough cobalt-enriched carbide grade with a newly designed multilayer MTCVD-TiCN-Al2O3 coating with superior interlayer adhesion.
              Application: Best general-purpose turning grade for most steels and ferritic and martensitic stainless steels. The substrate design ensures adequate deformation resistance with excellent insert edge strength. Coating layers offer good wear resistance over a wide range of machining conditions and the post-coat treatment minimises microchipping and improves coating adhesion to substrate leading to long tool life and improved workpiece finishes.

              P Steel
              K Cast Iron
