Tap Chucks RC Tension and Compression • Coolant
Tap Chucks RC Tension and Compression • Coolant
Tap Chucks RC Tension and Compression • Coolant
Tap Chucks RC Tension and Compression • Coolant

RC Cool-CV Form AD

Tap Chucks RC Tension and Compression • Coolant

Features and benefits

  • Rapid Change Style.

  • High-pressure coolant capability through the chuck.

Uses and application

  • Shank - SK CAT(CV) ANSI B5.50 5/8"–11 unc DrawbarShank - SK CAT(CV) ANSI B5.50 5/8"–11 unc Drawbar
  • Shank - Cylindrical with SquareShank - Cylindrical with Square
  • Balanced-by-Design Balanced-by-Design
  • Compensation: Tension and CompressionCompensation: Tension and Compression
  • Tapping - Through Coolant 50 bar (725 psi) MaximumTapping - Through Coolant 50 bar (725 psi) Maximum
Select Filters
Filters
View filters in
Metric
Inch
Front-End
Gage Length
Gage Length
  • 3.819 in (1)
  • 5.236 in (1)
Gage Length
Gage Length
  • 133 mm (1)
  • 97 mm (1)
Front End Size
Front End Size
  • 0.748 in (1)
  • 1.22 in (1)
Front End Size Min to Front End Size Max
Front End Size
Front End Size
  • 19.0 mm (1)
  • 31.0 mm (1)
Front End Size Min to Front End Size Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 2 of 2 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

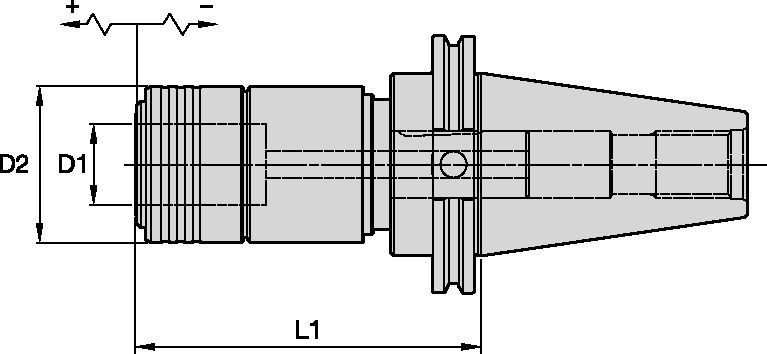

SAP Material Number ISO Catalog Number ANSI Catalog Number TQCS Tap Range Tap Range D1 D1 D2 D2 L1 L1 LTN LTN LCM LCM Weight Kilograms
1615986 CV40CHTCRC1382 CV40CHTCRC1382 1 M1 - M14 #0 - 9/16 19 .748 36 1.417 97 3.816 15 .59 15 .59 1.41
    List price:
    $1,707.92 /each
    Your price:
    Qty
    1615987 CV40CHTCRC2524 CV40CHTCRC2524 2 M5 - M24 5/16 - 7/8 31 1.22 53 2.087 133 5.233 20 .787 20 .787 2.4
      List price:
      $1,845.18 /each
      Your price:
      Qty
