Kennametal® SPF Drills - High Performance Aerospace CFRP Cutting Tools - Drilling Composite Materials For Sale Online

Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • C CFRP Materials (10)
    • C1
      CFRP, CFRP / CFRP
      (10)
Applications
Applications
  • Drilling Drilling (10)
  • Stacked Plates Drilling Stacked Plates Drilling (10)
Cutting Diameter
Cutting Diameter
  • 0.19 in (2)
  • 0.219 in (2)
  • 0.25 in (2)
  • 0.313 in (2)
  • 0.375 in (2)
Cutting Diameter Min to Cutting Diameter Max
Cutting Diameter
Cutting Diameter
  • 4.825 mm (2)
  • 5.551 mm (2)
  • 6.351 mm (2)
  • 7.95 mm (2)
  • 9.525 mm (2)
Cutting Diameter Min to Cutting Diameter Max
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
  • KCC05 (5)
  • KDC05 (5)
Front-End
Point Angle
Point Angle
  • 90.0 (5)
  • 120.0 (5)
Point Angle Min to Point Angle Max
Back-End
Back-End Diameter
Back-End Diameter
  • 6.0 mm (4)
  • 8.0 mm (4)
  • 10.0 mm (2)
Back-End Diameter Min to Back-End Diameter Max
Back-End Diameter
Back-End Diameter
  • 0.237 in (4)
  • 0.315 in (4)
  • 0.394 in (2)
Back-End Diameter Min to Back-End Diameter Max
No filters matching ""
View Products in
Metric
Inch

ORIGINAL PRODUCT

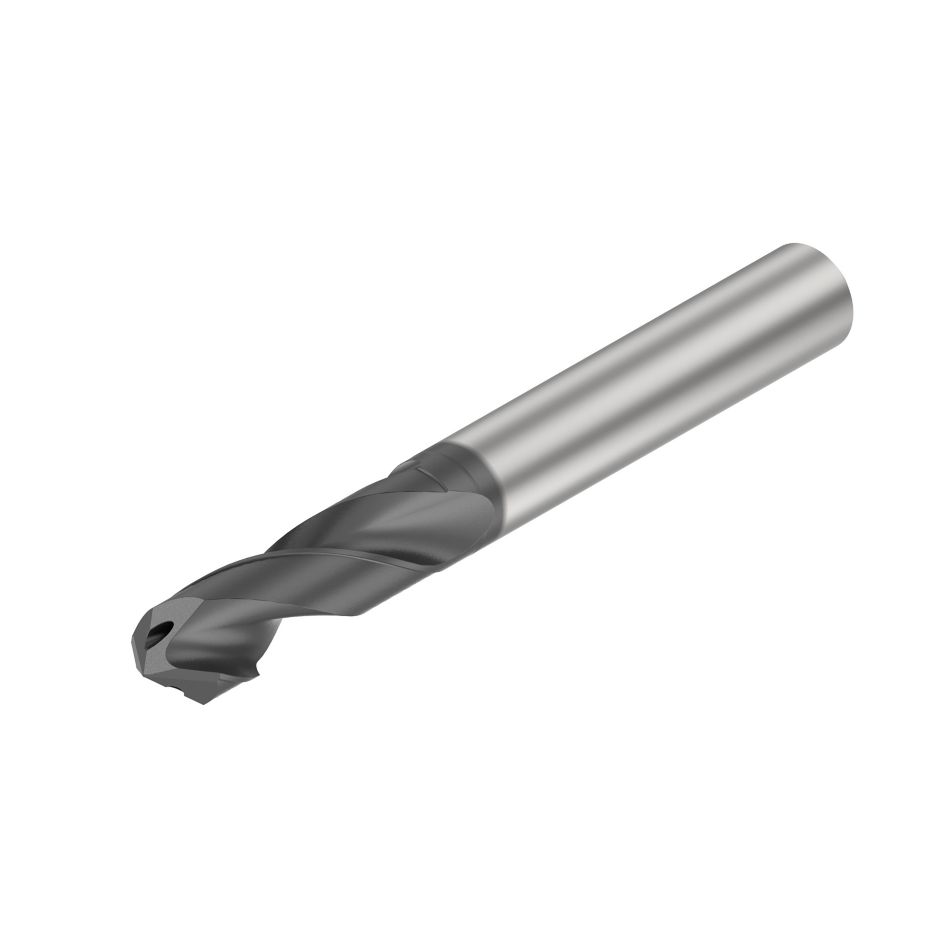

HiPACS Drill • 3 x D • Internal Coolant • Straight Shank • Metric HiPACS Drill • 3 x D • Internal Coolant • Straight Shank • Metric

Solid Carbide Drill for CFRP Rivot Hole Machining in Aerospace
(5 Products)
  • Drilling: Stacked PlatesDrilling: Stacked Plates
  • DrillingDrilling
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D1] Drill Diameter M [D1] Drill Diameter M [L] Overall Length [L] Overall Length [L3] Flute Length [L3] Flute Length [L4] Maximum Drilling Depth [L4] Maximum Drilling Depth [L5] Drill Point Length [L5] Drill Point Length [LS] Shank Length [LS] Shank Length [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter
6771199 B536H04828SPFP B536AP04828SPF KCC05 4.8280 .1901 75.0000 3.248 33.0000 1.299 25.0000 .9843 2.1900 .0862 42.0 1.653 6.0 .2362
    List price:
    $246.91 /each
    Your price:
    6771200 B536H05558SPFP B536AP05558SPF KCC05 5.5580 .2187 75.0000 3.602 33.0000 1.299 25.0000 .9843 2.5200 .0992 42.0 1.653 6.0 .2362
      List price:
      $246.91 /each
      Your price:
      6771201 B536H06350SPFP B536AP06350SPF KCC05 6.3500 .2500 75.0000 3.602 33.0000 1.299 25.0000 .9843 2.8800 .1134 42.0 1.653 8.0 .315
        List price:
        $325.45 /each
        Your price:
        6771202 B536H07938SPFP B536AP07938SPF KCC05 7.9380 .3125 75.0000 3.602 33.0000 1.299 25.0000 .9843 3.6100 .1421 42.0 1.653 8.0 .315
          List price:
          $325.45 /each
          Your price:
          6771203 B536H09525SPFP B536AP09525SPF KCC05 9.5250 .3750 75.0000 3.602 33.0000 1.299 25.0000 .9843 4.3300 .1705 42.0 1.653 10.0 .3937
            List price:
            $366.12 /each
            Your price:
            List price:
            Discount: %
            Your price:
            Replacement This item is no longer available
            Replacement Product Please contact customer service for assistance

            ORIGINAL PRODUCT

            HiPACS Drill • 3 x D • Internal Coolant • Straight Shank • Metric HiPACS Drill • 3 x D • Internal Coolant • Straight Shank • Metric

            Solid Carbide Drill for CFRP Rivot Hole Machining in Aerospace
            (5 Products)
            • Drilling: Stacked PlatesDrilling: Stacked Plates
            • DrillingDrilling
            View Products
            SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D1] Drill Diameter M [D1] Drill Diameter M [L] Overall Length [L] Overall Length [L3] Flute Length [L3] Flute Length [L4] Maximum Drilling Depth [L4] Maximum Drilling Depth [L5] Drill Point Length [L5] Drill Point Length [LS] Shank Length [LS] Shank Length [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter
            6770417 B516H04828SPFP B516AP04828SPF KDC05 4.8280 .1901 75.0000 2.952 33.0000 1.299 25.0000 .9843 1.8800 .0739 42.0 1.653 6.0 .2392
              List price:
              $888.65 /each
              Your price:
              6770418 B516H05558SPFP B516AP05558SPF KDC05 5.5580 .2188 75.0000 2.952 33.0000 1.299 25.0000 .9843 2.1600 .0851 42.0 1.653 6.0 .2392
                List price:
                $899.62 /each
                Your price:
                6770419 B516H06350SPFP B516AP06350SPF KDC05 6.3500 .2500 75.0000 2.952 33.0000 1.299 25.0000 .9843 2.4700 .0972 42.0 1.653 8.0 .315
                  List price:
                  $910.59 /each
                  Your price:
                  6770420 B516H07938SPFP B516AP07938SPF KDC05 7.9380 .3125 75.0000 2.952 33.0000 1.299 25.0000 .9843 3.0900 .1215 42.0 1.653 8.0 .315
                    List price:
                    $921.56 /each
                    Your price:
                    6770431 B516H09525SPFP B516AP09525SPF KDC05 9.5250 .3750 75.0000 2.952 33.0000 1.299 25.0000 .9843 3.7000 .1458 42.0 1.653 10.0 .3937
                      List price:
                      $932.54 /each
                      Your price:
                      List price:
                      Discount: %
                      Your price:
                      Replacement This item is no longer available
                      Replacement Product Please contact customer service for assistance
