| SAP Material Number | 6687559 |
| ISO Catalog Number | DNGA150608S01225DMT |
| ANSI Catalog Number | DNGA442S0525DMT |
| Grade | KBH20B |

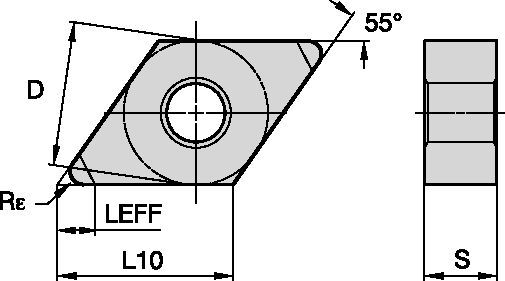

| [D] Insert IC Size | 12.7000 mm |
| [D] Insert IC Size | .5000 in |
| [L10] Insert Cutting Edge Length | 15.5040 mm |
| [L10] Insert Cutting Edge Length | .6104 in |
| [S] Insert Thickness | 6.3700 mm |
| [S] Insert Thickness | .2508 in |
| [Rε] Corner Radius | 0.7940 mm |
| [Rε] Corner Radius | .3120 in |
A low content PcBN grade with a PVD TiN/TiAlN/TiN coating for added wear resistance and enhanced wear identification. KBH20B™ is the ideal PcBN hard turning grade for continuous to lightly interrupted cutting applications. The structure, as well as the different edge preparations, enable repeatable workpiece tolerances, excellent surface finishes, and surface integrity. Typical applications are case-hardened steel components such as gears, shafts, and other drive-train components.
