Threading

LT Threading Toolholders

Product specifications
Product # 1281816
ISO Catalog Number LSSRDH164D
ANSI Catalog Number LSSRDH164D

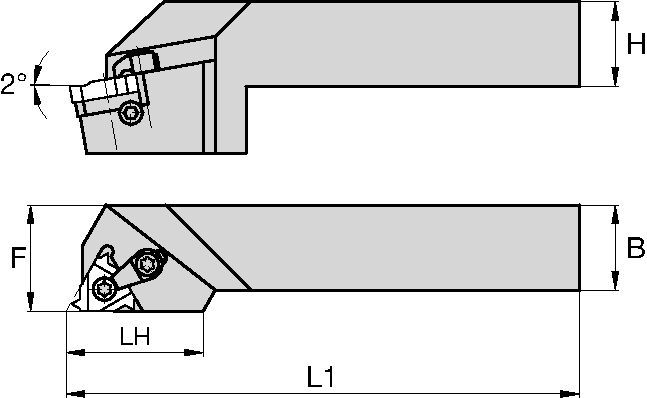

[H] Shank Height Inch 1
[B] Shank Width Inch 1
[F] F Dimension Inch 1.250
[L1] Tool Length Inch 6
[LH]Head Length Inch 1.500
Catalog Gage Insert 1 LT22ER
Shim Screw ID Drive Size T20
Insert Screw ID Drive Size T20
Need help? Contact our customer service team.
Contact us

LSS-DH

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [H] Shank Height Inch [B] Shank Width Inch [F] F Dimension Inch [L1] Tool Length Inch [LH]Head Length Inch Catalog Gage Insert 1 Shim Screw ID Drive Size Insert Screw ID Drive Size
1281816 LSSRDH164D LSSRDH164D 1 1 1.250 6 1.500 LT22ER T20 T20
1281815 LSSRDH123C LSSRDH123C .7500 .7500 1 5 1.500 LT16ER T10 T10

Product Usage

Uses and application

  • Threading

Inserts and Holder Bodies for LSS-DH

LT-ER-60CB
LT-ER-60K
LT-ER/L-60
LT-NR-60CB
LT-NR-60K
LT-NR/L-60
LT-ER-ISOCB
LT-ER/L-ISO
LT-NR-ISOCB
LT-NR/L-ISO
LT-ER-UNCB
LT-ER/L-UN
LT-NR-UNCB
LT-NR/L-UN
LT-ER/L-UNJ
LT-NR/L-UNJ
LT-ER-NPTCB
LT-ER/L-NPT
LT-NR-NPTCB
LT-NR/L-NPT
LT-ER-NPTFCB
LT-ER/L-NPTF
LT-NR/L-NPTF
LT-ER/L-55
LT-NR/L-55
LT-ER-WCB
LT-ER/L-W
LT-NR-WCB
LT-NR/L-W
LT-ER/L-BSPT
LT-NR/L-BSPT
LT-ER/L-API
LT-NR/L-API
LT-ER/L-BUT
LT-NR/L-BUT
LT-ER/L-APIRD
LT-NR/L-APIRD
LT-NR/L-ACME
LT-ER/L-STACME
LT-NR/L-STAMCE
LT-ER/L-TR
LT-NR/L-TR
LT-ER/L-RD
LT-NR/L-RD
S-LSE
H-LSE

Spare Parts for LSS-DH

LAYDOWN THREADING SHIM
LAYDOWN THREADING SHIM
SCREW SHIM
SCREW SHIM
TORX-WRENCH  TX20
TORX-WRENCH TX20
INSERT SCR #8-32 UNC X 15 T20
INSERT SCR #8-32 UNC X 15 T20
