A3SA

A3™ Deep-Grooving Toolholders • Face Grooving

Material Number1596720

ISO Catalog IDA3SAR2520M4S10-030-035ANSI Catalog IDA3SAR2520M4S10-030-035

Grooving and Cut-Off A3™ Deep-Grooving Toolholders • Face Grooving
Grooving and Cut-Off A3™ Deep-Grooving Toolholders • Face Grooving
Grooving and Cut-Off A3™ Deep-Grooving Toolholders • Face Grooving
Open expanded view
Grooving and Cut-Off A3™ Deep-Grooving Toolholders • Face Grooving
Grooving and Cut-Off A3™ Deep-Grooving Toolholders • Face Grooving
Generic representation
List Price
$144.34/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Contact our sales team to discover all of your pricing options
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
This item is no longer available
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

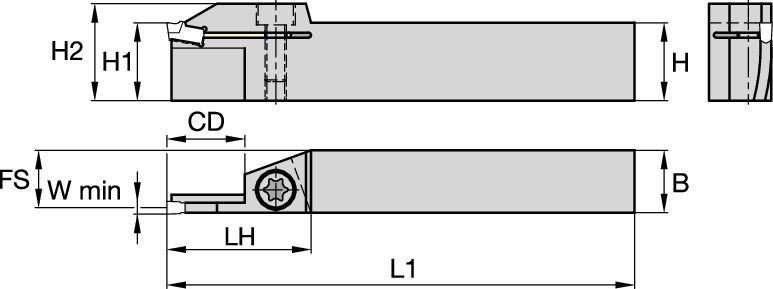

    Drawings for 1596720
    Metric
    Inch
    Material Number1596720
    ISO Catalog IDA3SAR2520M4S10-030-035
    ANSI Catalog IDA3SAR2520M4S10-030-035
    Insert Size4S
    [WM] Minimum Groove Width4 mm
    [WM] Minimum Groove Width0.1575 in
    [H] Shank Height 25 mm
    [H] Shank Height 0.9843 in
    [B] Shank Width 20 mm
    [B] Shank Width 0.7874 in
    [F] F Dimension 20.5 mm
    [F] F Dimension 0.8071 in
    [L1] Tool Length 150 mm
    [L1] Tool Length 5.9055 in
    [LH] Head Length 26.5 mm
    [LH] Head Length 1.0433 in
    [H1] Cutting Height25 mm
    [H1] Cutting Height0.9842 in
    [H2] Head Height 30 mm
    [H2] Head Height 1.1811 in
    Clamp Screw ID Drive SizeT30
    See all Product Variants

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS


    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    WRENCH TORX TX30 KT30
    1099676
    KT30
    KT30
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    MS1970 - M6-1.0p x 25 - 12.9
    1106668
    MS1970
    MS1970
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
