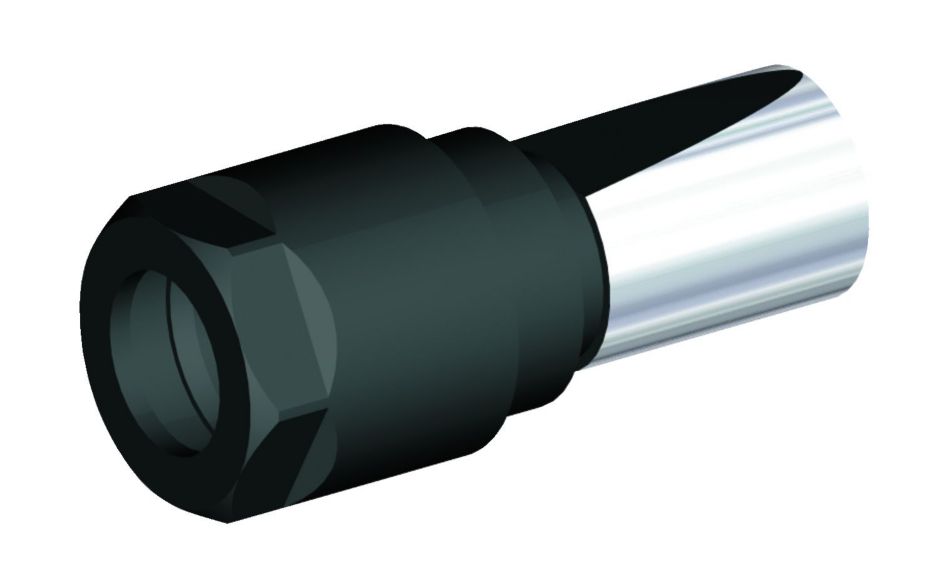

      DA L Tap Series Solid Tapping, Double-Angle Collet Chucks
      DA L Tap Series Solid Tapping, Double-Angle Collet Chucks
      DA L Tap Series Solid Tapping, Double-Angle Collet Chucks
      DA L Tap Series Solid Tapping, Double-Angle Collet Chucks

      DA L Tap Solid-SS IN

      DA L Tap Series Solid Tapping, Double-Angle Collet Chucks

      Metric
      Inch
      SAP Material Number 1017941
      ISO Catalog Number SS100STL169
      ANSI Catalog Number SS100STL169
      [CST] Catalog Collet Series L
      [D11] Lock Nut Diameter 38.0000
      [D11] Lock Nut Diameter 1.500
      [L] Overall Length 81.5100
      [L] Overall Length 3.209
      [LS] Shank Length 38.1
      [LS] Shank Length 1.5
      Torque Catalog Foot Pounds 60
      Weight Pounds 0.73
      [D] Adapter / Shank / Bore Diameter 25.4
      [D] Adapter / Shank / Bore Diameter 1.0
      See all Product Variants

      Uses and application

      • Shank - Cylindrical Whistle Notch™Shank - Cylindrical Whistle Notch™
      • Tapping: Through CoolantTapping: Through Coolant

      Features and benefits

      • Grip 1:1.

      • Industry standard Erickson™ double-angle collet system.

      • Small outside diameter clearance is ideal for machining centers, close center-distance, and fixture issues.

      • Solid drive/positive drive collets prevent tap slippage.

      • Right- or left-hand tapping capability.

      • Economical to use.

      Machine Side

      loading...

      Workpiece Side

      loading...

      Spare Parts for DA L Tap Solid-SS IN

      Spare Part
        LOCKNUT LNA L 04M
        LOCKNUT LNA L 04M
        Spare Part
          1 1/4 OPEN END WRENCH
          1 1/4 OPEN END WRENCH
