DUO-LOCK™ • KenCut™ FF • Radiused • 3 Flutes • Metric

Modular End Milling • FGDF Style • For MillTurn Machines and Lathes

SAP Material Number 6441044
ISO Catalog Number FGDF1170X3AQX
ANSI Catalog Number FGDF1170X3AQX
Grade KCPM15
Adapter Style Machine Side DUO-LOCK

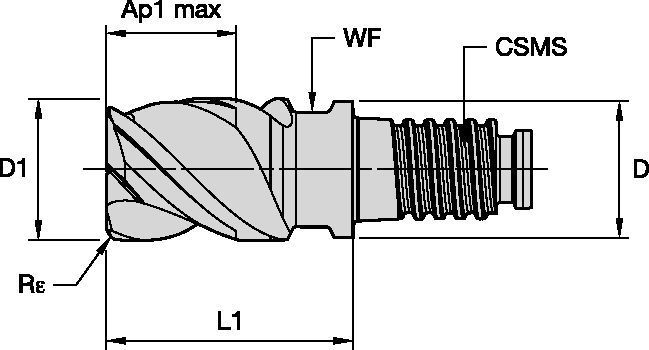

[D1] Effective Cutting Diameter 11.7 mm
[D1] Effective Cutting Diameter .4606 in
[D] Adapter / Shank / Bore Diameter 12 mm
[D] Adapter / Shank / Bore Diameter .4724 in
[AP1MAX] 1st Maximum Cutting Depth 9 mm
[AP1MAX] 1st Maximum Cutting Depth .3543 in
[L1] Gage Length 21 mm
[L1] Gage Length .8268 in
[CSMS] System Size Machine Side DL12
[WF] Width of Flat 9.5 mm
[WF] Width of Flat .374 in
[Re] Corner Radius 0.33 mm
[Re] Corner Radius .013 in
[Z] Number of Flutes 3
See all Product Variants

Uses and application

  • Plunge MillingPlunge Milling
  • Ramping: BlankRamping: Blank
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Corner Style: Corner RadiusCorner Style: Corner Radius
  • Helix Angle: 42°Helix Angle: 42°
  • Helix Angle: 45°Helix Angle: 45°
  • Helix Angle: 48°Helix Angle: 48°
  • Tool Dimensions: Flute Configuration: 3Tool Dimensions: Flute Configuration: 3

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys
H Hardened Materials

Features and benefits

  • Modular end mill for roughing and finishing in steels and stainless steel.

  • Centre cutting.

  • Short design and corner radii provide stability and reduce deflection forces.

  • Ideally suited to perform long-reach applications on mill-turn machines, and driven tooling on lathes.

  • The unique cutting geometry results in low cutting forces, resulting in low power consumption.

Machine Side


Workpiece Side
