DUO-LOCK™ • KenCut™ RR • Radiused • 3 Flutes • Inch

Modular End Milling • RFDD Style • For MillTurn Machines and Lathes

SAP Material Number 6441026
ISO Catalog Number RFDD0500Y3AQA
ANSI Catalog Number RFDD0500Y3AQA
Grade KCPM15
Adapter Style Machine Side DUO-LOCK

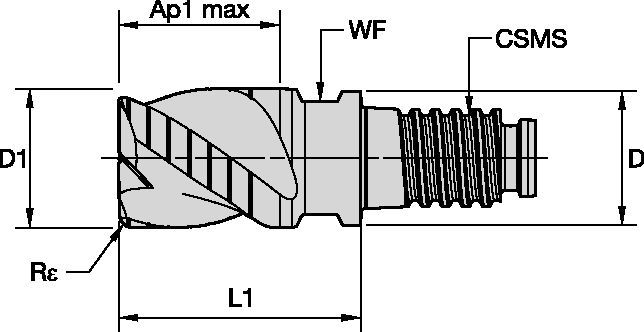

[D] Adapter / Shank / Bore Diameter 12.2 mm
[D] Adapter / Shank / Bore Diameter .4803 in
[L1] Gage Length 22.25 mm
[L1] Gage Length .876 in
[CSMS] System Size Machine Side DL12
[WF] Width of Flat 9.5 mm
[WF] Width of Flat .374 in
[Re] Corner Radius 0.381 mm
[Re] Corner Radius .015 in
[Z] Number of Flutes 3
[D1] Effective Cutting Diameter 12.7 mm
[D1] Effective Cutting Diameter .5 in
[AP1MAX] 1st Maximum Cutting Depth 9.525 mm
[AP1MAX] 1st Maximum Cutting Depth .375 in
See all Product Variants
Create Solution to calculate Feeds & Speeds

Uses and application

  • Ramping: BlankRamping: Blank
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Tool Dimensions: Flute Configuration: 3Tool Dimensions: Flute Configuration: 3
  • Helix Angle: 35°Helix Angle: 35°
  • Corner Style: Corner RadiusCorner Style: Corner Radius

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
H Hardened Materials

Features and benefits

  • RFDD Tips — High-performance roughing solution with excellent chip evacuation, especially in stainless steel.

  • The short design and corner radii provide stability and reduce deflection forces.

  • Ideally suited to perform long-reach applications on mill-turn machines, and driven tooling on lathes.

  • The unique cutting geometry results in low cutting forces, requiring low power consumption.

Machine Side


Workpiece Side
